Standalone Rack Access Control - NumPad / SmartCard

S-700

Improve rack level security with the S-700 Dual Security SmartCard + NumPad for 2 factor authentication. Rigid and durable alloy swing handle for maintaining reliable physical security combined with a sophisticated control panel with 2.8″ touchscreen. Providing a solution which can be used to upgrade a myriad of third party racks to a reliable access control system.

BrochureManual

No products were found

Try again different with a different selection, or reach out to us!

We don't have results matching your selection yet, but we may be able to find or build you the right product. In addition to our full range of integrated solutions, we offer cost effective OEM / ODM services to cater for new challenges and technologies rapidly emerging from customers’ applications in different industry sectors.

Contact Sales OEM / ODM Inquiry

InfraSolution S-700 Standalone Series

Improve rack level security with the S-700 Dual Security SmartCard + NumPad for 2 factor authentication. Rigid and durable alloy swing handle for maintaining reliable physical security combined with a sophisticated control panel with 2.8″ touchscreen. Providing a solution which can be used to upgrade a myriad of third party racks to a reliable access control system.

BrochureManual

Overall Installation Diagram

Overall Diagram - InfraSolution S-700 Standalone Rack Access Solution
Rack Access Control Panel - InfraSolution S-700
Rack Access Control Panel & Alloy Swing Handle - InfraSolution S-700

Alloy Swing Handle

Most global branded racks equipped with swing handles have applied a standard handle cut out dimension on the door.

To achieve the highest level of interoperability offered in the rack industry, the S-700 handle also applies the same mounting dimension.

Universal Mounting
InfraSolution S-700 Alloy Swing Handle Positions

Control Panel

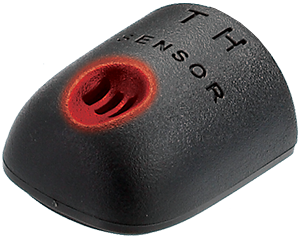

All S-700 packages are supplied with a control panel that includes a 2.8″ touchscreen with NumPad function. Built-in SmartCard sensor is compatible to MiFARE or Proximity SmartCard. By connecting to InfraPower W3 version intelligent PDU with temp+humid sensors, the controller can also provide local monitoring on Amp and Temp. + Humid.

InfraSolution Control Panel Diagram

Dual Security
SmartCard & NumPad

The InfraSolution S-700 allows two-factor authentication to verify user ID, via NumPad & SmartCard. Two-factor ensures dual security for your rack access control.

Dual Security Control Panel Smartcard

Operation

LED color modes on the smartcard handle indicate the lock status clearly.

Use MIFARE or Proximity cards for building access, cashless vending, pull printing? InfraSolution allows these existing smart cards to apply on the rack access system (once the access levels have been attributed by the administrator).

Door Close

S-700P
S-700M

Blue & green LED indicate the locked status of Proximity & MiFARE handle respectively

Door Open

Door Open Rack Access Handle

An authorized unlock is signaled by a silver white flashing LED

Alarm for Unauthorized Open

Alarm for Unauthorized Open Rack Access Handle

Unauthorized rack access will result in a red flashing LED following with an audible alarm

Door Sensor

InfraSolution® provides high quality, durable and precise door sensors to ensure 100% right door detection

IR Door Sensor, pair (S-DIR)

IR Door Sensor, pair (S-DIR)

• Light weight / adhesive
• Magnetic base for easy setup
• No custom cutting required on doors

InfraSolution Mechanical Door Sensor, pair (S-DSW)

Mechanical Door Sensor, pair (S-DSW)

• Low cost / precise
• Cost efficient integration to new rack
• Custom hole cutting required on doors

Junction Box

Junction Box provides two connectors for LED light bar and two connectors for W3 Series PDU integration. Once connected, Control Panel LCD will show the PDU Amp figures.

InfraSolution 700 Junction Box Diagram

Software

Via the Free utilities ( ISU-01 ), client can change the admin / user passcodes and assign the smartcards. Max. 50 users card authentication per control

Software Manager Rack Handle Connection Diagram

Software Feature

Utilities ISU-01
Users

Max. 50 user card authorization per handle

Lock

Change of Admin / Passcode

Secure

Change of User Passcode

Card

Card Assignment

Accessories

Individual Key Lock - InfraSolution Rack Access

Individual Key Lock
ISK-C051

  • Up to 50 individuals key-locks available
  • Set of 2 for front & rear door
Unique Key Lock - InfraSolution Rack Access

Unique Key Lock
ISK-UKL

  • Dedicated to single project / customer regionally
  • For project size over 500 racks
Proximity Smartcard - InfraSolution Rack Access

Proximity Smartcard
ISC-P10

  • Proximity 26-bit format
  • Single card for multiple application
  • Custom card layout available
  • Pack of 10
MiFARE Smartcard - InfraSolution Rack Access

MiFARE Smartcard
ISC-M10

  • MiFARE 26-bit format
  • Single card for multiple application
  • Custom card layout available
  • Pack of 10
Proximity Card Reader - InfraSolution Rack Access

Proximity Card Reader
ISC-PCR

  • Proximity 26-bit smartcard compatible
  • Convenient way for smartcard ID reading
  • Driverless for easy installation
MiFARE Card Reader - InfraSolution Rack Access

MiFARE Card Reader
ISC-MCR

  • MiFARE 26-bit smartcard compatible
  • Convenient way for smartcard ID reading
  • Driverless for easy installation
Handle Data Input Cable - InfraSolution Rack Access

Handle Data Input Cable
ISW-USB-1.8

  • Connect the smartcard handle to the laptop for handle activation, data input & configuration
