InfraRack Intelligent Networked X6 Server Rack

Networked X6 Series

Data centers have evolved, and so to have the server racks which house critical infrastructure. Whether you are involved in Hyperscale, Enterprise, Multi-Tenant or Edge Data Centers – InfraRack intelligent racks provide a more efficient solution with monitoring, control and reporting functions of power, cooling, access and environment.

Reduce onsite installation time with pre-configured intelligent racks and optimise your data center teams productivity with remote management, negating onsite attendance once racks are installed and configured.

Catalog

RoHS3 Compliance
REACH Compliant
Green Production
BSi ISO-Certified | ISO9001 | ISO14001
Medium / Heavy Duty Server Rack Load Capacity

Access Control

Access Control

Smartcard access control gives data centers a higher level of rack level access security. Networked version enables complete smartcard rack access management with software.
Power

Power

Intelligent kWh PDU for remote management. Metered PDU and ATS available for different requirements.
Cooling Fan

Cooling Fan

Intelligent fan unit allows remote management by software. InfraCool fan unit provides various fan unit form factors for different cooling requirements.
Sensors

Sensors

A wide range of sensors for complete environmental monitoring. Maintain optimum operational conditions within the data center.
Cabling

Cabling

Framework allows multi-dimensional cable pathways. Numerous efficient cabling options.
AirFlow

AirFlow

Air Blanking Panels prevent air recirculation by occupying unused rack space. Rack Seal Kits prevent air loss underneath the racks and from the gap between racks.
KVM & Screen

KVM & Screen

LCD console drawers combine display, keyboard and touchpad in 1U rack space. KVM allows remote or local access and control to multiple servers in the rack.

Models

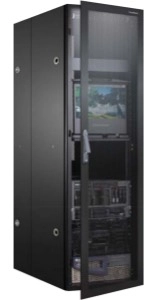

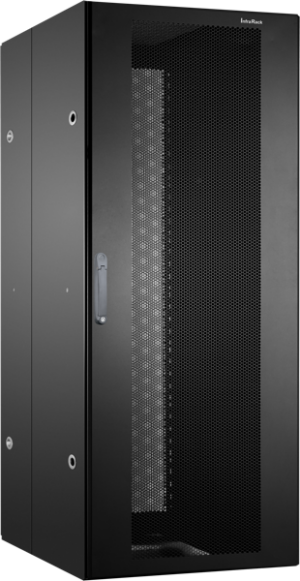

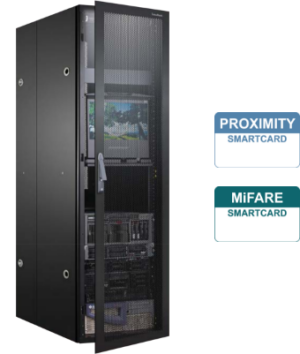

Heavy Duty Rack Infra-X6-SR

Heavy Duty Rack

Infra-X6-SR

1500 kg Server Rack Load Capacity
3300 lb Server Rack Load Capacity

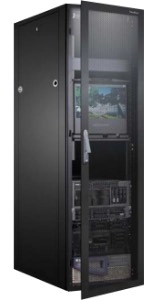

Medium Duty Rack

Infra-X6-NSR

2200 lb Server Rack Load Capacity
1000 kg Server Rack Load Capacity
Medium Duty Rack Infra-X6-NSR
Model Comparison
InfraRack X6 Intelligent Networked Rack Access Handle X-600

Integrated Access Control

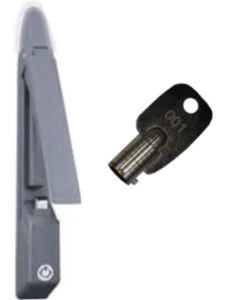

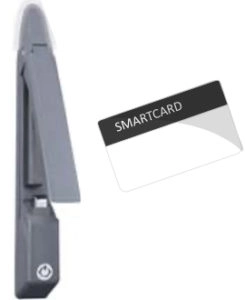

The patented InfraSolution X-600 smartcard handle is designed for rack access control.

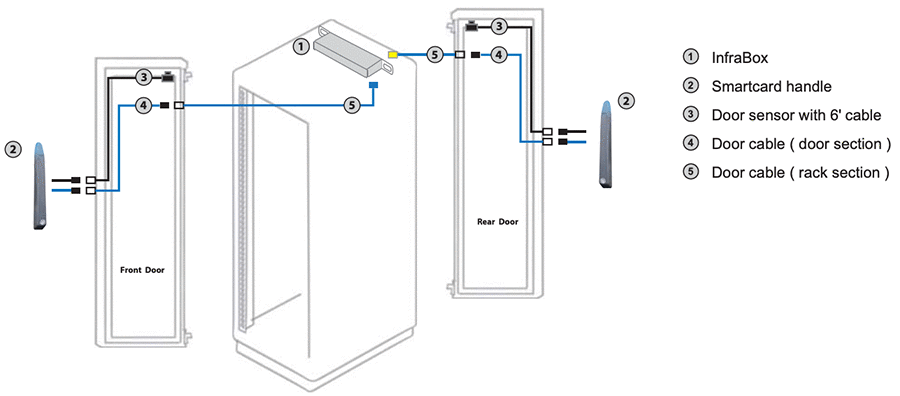

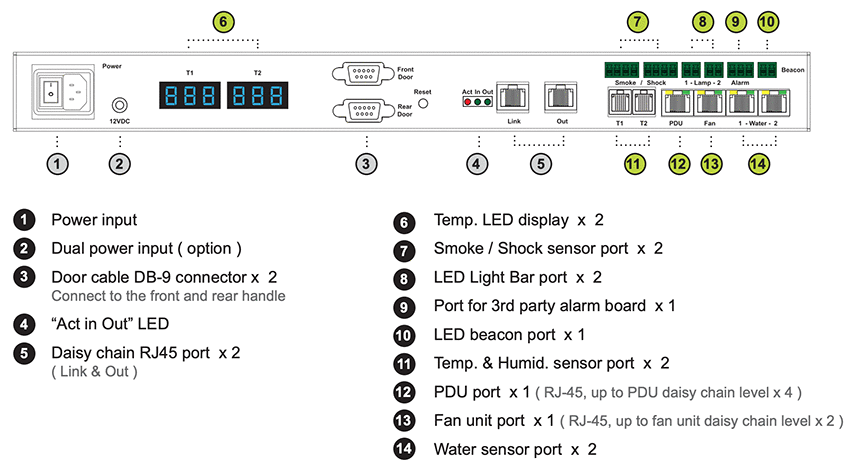

Control Box X-2000, designed for Rack Smartcard Access + PDU / Fan / Environmental Management, consolidates the smartcard access components and integrated devices such as integrated PDU, cooling fan and environmental sensors in a single rack. For a centralized management, all control boxes can be connected under wired networks.

To ensure 100% right door detection, InfraRack is equipped with high quality, durable and precise door sensors for front and rear door.

See More
Server Rack Power

Power

With today’s increasing demand for power management solution, a complete suite of rack PDU models is required specifically to help data center IT managers meet their rapidly escalating power requirements.

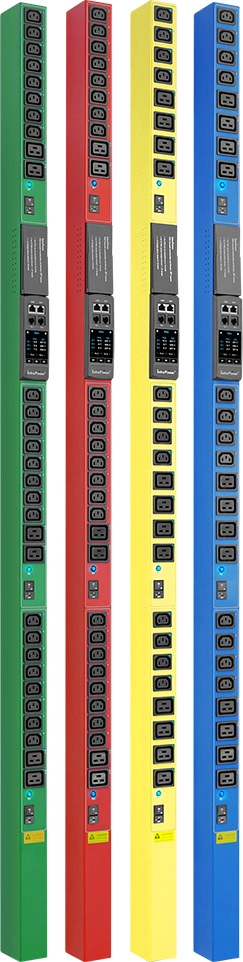

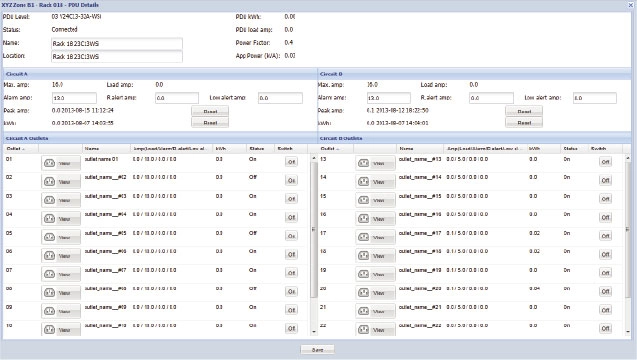

InfraPower intelligent PDU can be integrated to provide a power management solution from PDU Level to Outlet Level kWh monitoring. Switched models are also available for remote outlet switching on / off. Our PDUs are also offered in many sizes and configurations depending on voltage, current, outlet number and type of connections.

See More
Server Rack Cooling Fans

Cooling Fan

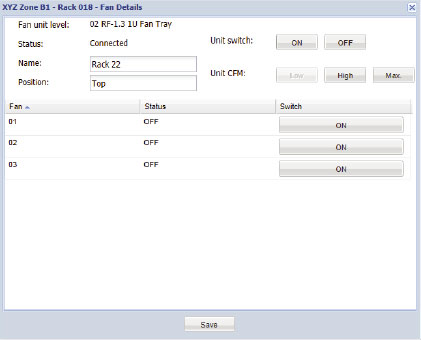

One of the biggest challenges in today’s data center is thermal management. Cooling the equipment in an enclosed rack has always been important. InfraCool intelligent cooling fan units can be integrated to have both local & remote management capabilities. Front panel LED and buttons allow the local monitoring and individual fan kit switch on / off. Moreover, fan speed can be adjusted automatically according to the temperature detected by the sensor. It provides adequate airflow and minimizes the operation cost for data center energy consumption.

See More
InfraRack Intelligent Networked Sensors

Sensors

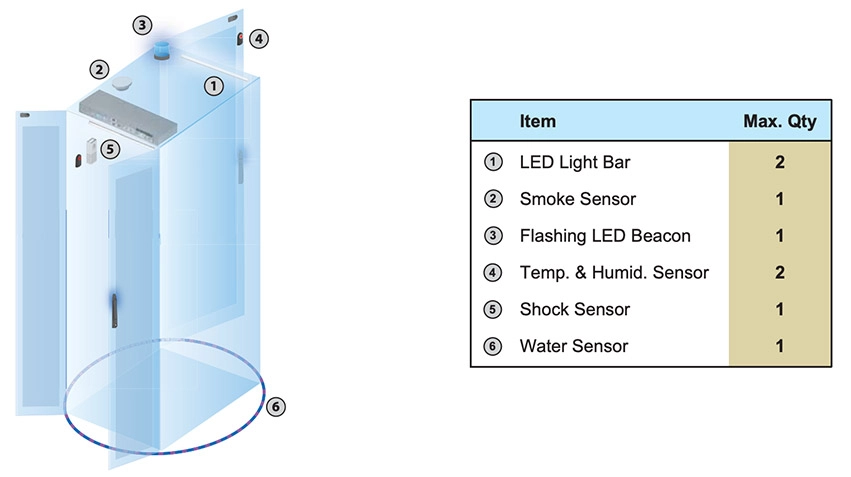

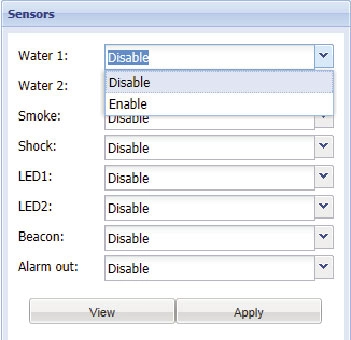

To maintain optimum operational conditions in data centers, getting instant notification of environmental fluctuations is vital. InfraRack offers a wide range of InfraGuard sensors for complete environmental monitoring, including temperature, humidity, smoke, shock and water leakage. Peripherals such as LED light bars and flashing LED beacons, are designed for use with the sensors for a comprehensive local environmental monitoring solution.

See More
Server Rack Cable Management

Cabling

The primary purpose of cable management is to maintain the integrity of facilities installation, upgrades & serving of the system. As the number of IT components within each rack continues to increase, so do the number of power and data cables. Recognizing these challenges, Austin Hughes responded with a comprehensive selection of optional components that allows users to pick the ideal cable management solution for their particular IT environment.

Server Rack Airflow Management

AirFlow

Based on measurements at multiple data centers, more than 50% of valuable conditioned air cannot reach the air intake of IT equipment due to unsealed openings. Hence, the aisle containment associated with an extensive range of sealing components is essential for IT equipment reliability.

InfraRack is designed to enhanced thermal management in data center by creating a one-way path for airflow that eliminates the mixing of hot and cold air. An ideal data center environment is given with the use of Air Blanking Panels and Seal Kits in the aisle containment and server racks.

Server Rack Control - KVM & Display

KVM & Screen

Austin Hughes solutions provide data center managers and administrators instant secure, local and remote access control to mission critical equipment. Our leading edge CyberView LCD console drawer and KVM Solutions provide the widest range, available on the shortest lead-times in the market today whilst ensuring capital equipment and software management costs are kept to an absolute minimum.

Management & Setup

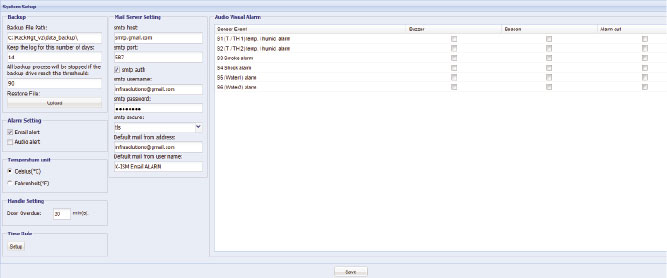

InfraSolution X Manager X-ISM is a LICENSED rack management software to monitor up to 3000 racks remotely.

Each InfraBox connects a pair of smartcard handles to secure the rack access control, and connect a variety of sensors to provide an environmental monitoring solution. To enhance the functionality, up to 1920 x kWh PDU / 960 x Fan Unit can be monitored through InfraSolution X Manager as well. Up to 100 concurrent users can access the management software remotely to achieve the demand of multi-user / multi-tasking in nowadays’ time sharing data center operation.

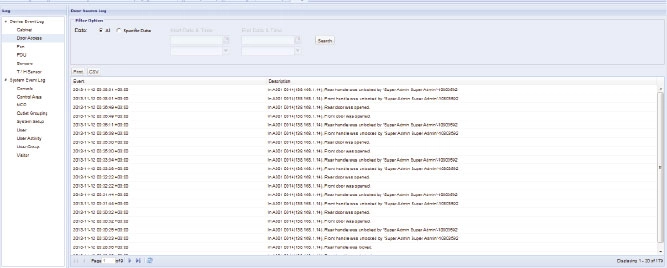

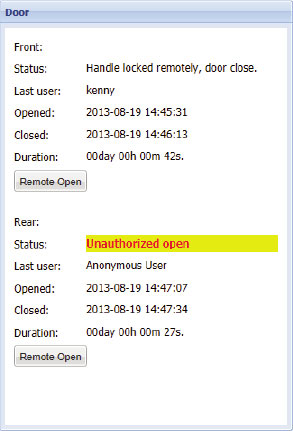

X-ISM Rack Manager Software Screenshot Control Area
More Details

There are 3 connection ways – Daisy Chain, Star, Mixed.
Which connection users apply is related to the site scale, environment and users’ requirements.

Daisy Chain

Connect all InfraBoxes by Cat5/6 cable, and no any network switch required.

InfraRack Network Setup Diagram - Daisy Chain

Star

Connect to network switch by a point-to-point connection.

InfraRack Network Setup Diagram - Star

Mixed

Combining daisy chain with star connection.

InfraRack Network Setup Diagram - Mixed

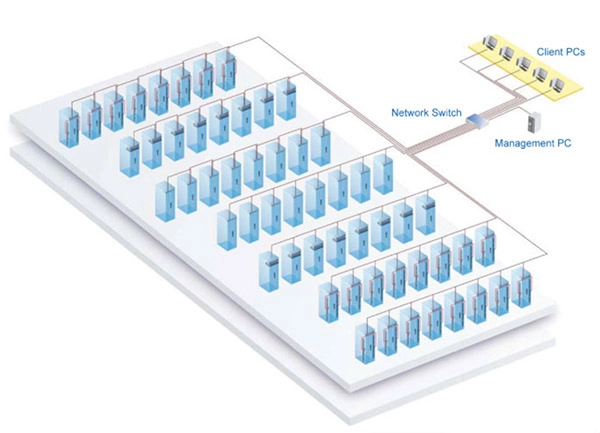

Data Center

With a mixed connection, InfraSolution X can be scalable up to 3000 racks. X-2000 InfraBoxes can be coexisted in the same network. Users are enabled to manage and remotely access all racks under a centralized and user friendly GUI.

  • Connect the 1st InfraBox in each daisy chain to the network switch
  • Connect the management PC and client PCs via the network switch
  • Up to 3000 Infraboxes / Racks
InfraRack X Application Data Center

Intelligent Building

It is essential for a Multi-Story Intelligent Building to be applied with a centralized management system for the building’s mechanical and electrical equipment such as security, power, ventilation, and lighting systems, etc.

InfraSolution X system allows equipment to be distributed throughout a building simply by deploying an Ethernet network. To keep capital costs down, InfraSolution X can also be cascaded between boxes up to 100m over a Cat5/6 cable. Signal weakness problem for long distance between InfraBoxes can be solved by applying network hubs with repeater function.

Setup Scenario in the whole Intelligent Building

  • Connect the InfraSolution X network in each floor via the network ethernet / fiber switch
  • Up to 3000 Infraboxes / Racks
InfraRack X Application Intelligent Building

Branches

For a global or scalable company, it is vital to remote access and monitor the network of their nationwide and worldwide branches.

InfraSolution X provides an ideal solution to keep an eye on rack access security and environmental condition.

InfraSolution X Software License is required for each remote site / management PC

InfraRack X Application Branches

Accessories

Options for Access Control

Proximity Smartcard - InfraSolution Rack Access

Proximity Smartcard, pack of 10
ISC-P10

  • Proximity 26-bit format
  • Single card for multiple application
  • Custom card layout available
MiFARE Smartcard - InfraSolution Rack Access

MiFARE Smartcard, pack of 10
ISC-M10

  • MiFARE 26-bit format
  • Single card for multiple application
  • Custom card layout available
Individual Key Lock - InfraSolution Rack Access

Individual Key Lock
ISK-C051

  • Up to 500 individual key-locks available
  • Set of 2 for front & rear door
Unique Key Lock - InfraSolution Rack Access

Unique Key Lock
ISK-UKL

  • Dedicated to single project / customer regionally
  • For project size over 500 racks

Rack Accessories

Rack Accessories - Rack Cable Management Tray

Cabling

Cable Management Panel
Side Partition w/ Cable Brush for SR Rack
Side Partition w/ Cable Brush for NSR Rack

Cabling 600W Rack

Ring Cable Manager, pair
42U Full Height Cable Tray, set of 2 sides

Cabling 800W Rack

Cable Ring, pack of 10
Finger Guide, set of 2 sides
Full Height Cable Brush, Left & Right Side
Cable Cover Panel, pair
Full Height Cable Tray, 150 mm Wide, set of 2 sides
Vertical Fibre Management Channel, pair
Rack Accessories - Airflow

Air Blanking

Plastic Tool-less Blanking Panel
Steel Tool-less Blanking Panel
Full Height Blanking Panel for SR Rack, Front Left & Right Side
SR Rack to Floor Seal Kit
Full Height Blanking Panel for NSR Rack, Front Left & Right Side
NSR Rack to Floor Seal Kit
Rack Accessories - Cooling

Cooling
Basic Model

Rack Accessories - Shelves

Shelves

Fixed Shelf, 50 kg Loading
Heavy Duty Fixed Shelf, 100 kg Loading
Sliding Shelf, 30 kg Loading
Heavy duty sliding shelf, 100 kg Loading
Cantilever shelf, 20 kg Loading
CyberView Rack Keyboard Drawer

Drawers

Lockable Document Drawer, 30 kg loading
1U Rack 104-key Keyboard Drawer
  • * Language selection: United States, United Kingdom, Germany, France, Spain, Italy, Japan, Korea
Rack Accessories - Others

Others

Baying Kit for SR Rack
Baying Kit for NSR Rack
  • M6: M6 screw set, pack of 50
Copper Bus Grounding Bar, pc, with Insulator x 3
