Industrial IP55 Rated Rack Enclosure - Water & Dust Resistant

Austin Hughes IP55 rack is designed to provide an IP rated protection to rack equipment. It can be deployed within areas of high dust and moisture. Standard package includes compression gaskets, water proof swing handle & cable entries with protective covers while airflow package offers rear door with IP fan units. Intake and exhaust fans maintain rack temperature in a safe level and IP filters give protection to valuable equipment.

Catalog

No products were found

Try again different with a different selection, or reach out to us!

We don't have results matching your selection yet, but we may be able to find or build you the right product. In addition to our full range of integrated solutions, we offer cost effective OEM / ODM services to cater for new challenges and technologies rapidly emerging from customers’ applications in different industry sectors.

Contact Sales OEM / ODM Inquiry

UltraRack Industrial IP 55 Rated Enclosure - Earthquake, Water, & Dust Resistant

Industrial IP55 Rated Rack Enclosure - Water & Dust Resistant

Catalog

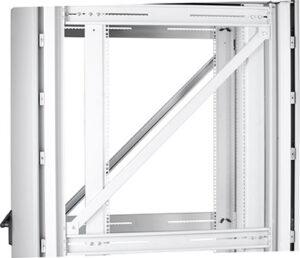

Anti-Seismic to Reduce Damage

Seismic kit available to reduce the risk of rack equipment damage caused by vibration or earthquake.

Industrial Level Enclosure

Industrial rack to conform to IP55 dust and moisture specifications subject.

Well-designed and Durable

Sealed and enhanced rack structure with a powder coated finish for longevity.

A Multiplicity of Protection

All apertures are internally sealed with compression gaskets for protection.

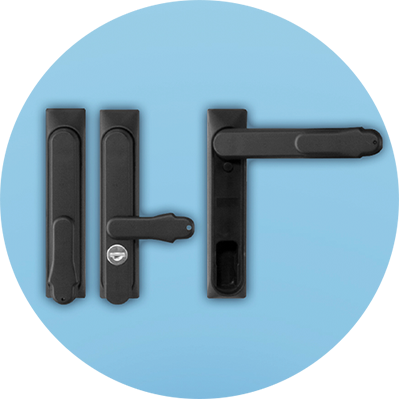

Optimized Locking System

Applied with 4-point locking water-proof swing handle.

Flawless Cable Access Protection

Cable entry is designed with protective cover against dust and moisture.

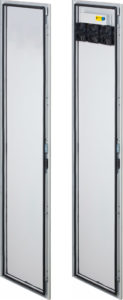

Variety of Water Proof Doors

IP rated glass door, solid steel door and fan door available to meet a variety of requirements.

Package for Higher Airflow Performance

Airflow package with fan units efficiently removes heated air and prevents hot spots inside the rack.

Model Coverage

Standard Package / Size

	Model No.	Width		Depth				Height
		Width		Overall( door to door )		Effective( frame to frame )		Overall( w/ casters )		Effective
		mm	inch	mm	inch	mm	inch	mm	inch	mm	inch
42U	IP-6842 Austin Hughes IP-6842 – 42U IP55 Rack	600	24	872	34	800	31	2035	80	1867	74
	IP-6842F	600	24	872	34	800	31	2035	80	1867	74
	IP-6042 Austin Hughes IP-6042 – 42U IP55 Rack	600	24	1072	42	1000	39	2035	80	1867	74
	IP-6042F	600	24	1072	42	1000	39	2035	80	1867	74

**Custom size on request

Basic Package	Configuration
	Static Loading: 1500 kg / 3300 lb
	Enhanced Framework w/ Cable Management Feature
	Front Glass Door w/ 4-pt Swing Handle Lock
	Rear Metal Door w/ 4-pt Swing Handle Lock
	✘Rear Metal Door w/ fans & 4-pt Swing Handle Lock
	Water-repellent roof
	19″ Rails w/ Unit Mark, Front & Rear Pairs
	Fixed Side Panel, Pair
	Heavy Duty Caster & Adjustable Feet, set of 4
	M6 Screw Fixing, Pack of 50
	Color : White

Custom models available on request

Protection

To achieve the IP55 standard, the rack design ensures the protection from dirt, dust, and some other non-corrosive materials.

It also protects the rackmount equipment from water projected against rack from any direction.

UltraRack IP55 rack also provide optional anti-seismic kit for the risk of vibration or earthquake.

AirFlow

Perforated door design or generic rack fan are difficult applied in IP55 rack solution.

UltraRack IP55 racks apply with specific fan doors not only allowing sufficient rack level air circulation but also ensuring protection against moisture and dust entry.

Accessories

Shelf & Drawer

Fixed Shelf, 50 kg Loading

S37: 370 mm
S44: 440 mm
S58: 580 mm
S70: 700 mm

Heavy Duty Fixed Shelf, 100 kg Loading

HS44: 440 mm
HS58: 580 mm
HS70: 700 mm
HS80: 800 mm

Sliding Shelf, 30 kg Loading

TS44: 440 mm
TS58: 580 mm

Heavy Duty Sliding Shelf, 100 kg Loading

HTS70: 700 mm

Cantilever Shelf, 20 kg Loading

MS19: 190 mm
MS40: 400 mm

1U Rack 104-key Keyboard Drawer

RK-2e: Touchpad keyboard drawer, 400 mm depth
RK-2b: Trackball keyboard drawer, 400 mm depth
RK-1e: Touchpad keyboard drawer, w/ KVM options
RK-1b: Trackball keyboard drawer, w/ KVM options
* Language selection: United States, United Kingdom, Germany, France, Spain, Italy, Japan, Korea

Lockable Document Drawer, 30 kg loading

TSD-2U: 2U, 580mm
TSD-4U: 4U, 580mm

Door / Fan Door

Door for 42U 600W IP55 Rack

IP-G42.6: Glass door
IP-D42.6: Metal door

Fan Door for 42U 600W IP55 Rack

IP-G42.6-BIF: Glass door with bottom intake fan unit
IP-D42.6-BIF: Metal door with bottom intake fan unit
IP-D42.6-BIF/TEF: Metal door with bottom intake & top extract fan units
IP-D42.6-TEF: Metal door with top extract fan unit

Anti-seismic Kit

SK-Z4: Anti-seismic kit, zone 4, set of 4
