MRK-K17, 2U 4K Multi-display Console Drawer

The CyberView MRK-K17 2U Multi-display rack console features a 17.3″ 4K LED-backlit LCD capable of up to 4K UHD (3840 x 2160) @60Hz video.

Display Resolution: 4K UHD (3840 x 2160) @60Hz


  • Multi-display console drawer with LED-backlit LCD panels
  • 2U 21.7" short depth design
  • Light weight
  • Rugged construction for mobility & durability
  • Built-in solid bearing slide rails
  • Built-in dual stereo speaker ( per display )
  • Display port 1.2 video input ( attached 6ft DP cable )
  • 104-key keyboard with either touchpad or trackball
  • Fits 24" ~ 36" rack via adjustable mounting brackets
  • 2-year standard warranty ( upgradable up to 5 years )


  • DC power : 12V / 24V / 48V / 125V / 250V
  • 3G / HD / SD-SDI Broadcast-grade input
  • Projected Capacitive 10-pt / Resistive 1-pt Touch Screen
  • Front USB hub port for device access
  • HDMI 2.0 video input
  • Keyboard available in 9 languages
  • SUN Micro keyboard options available
  • USB keyboard & mouse selector


Featuring a 4K LED-backlit LCD display and notepad keyboard with touchpad or trackball, the CyberView MRK-K17 are the leading Rack Console solution for data centers & other IT environments. Enhance your rack by integrating a monitor, keyboard, mouse, and KVM Switch with this state-of-the-art, modular rack console drawer.

Get Info

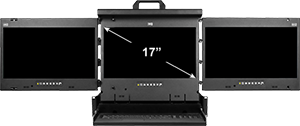

  • MRK-K17 - 17" 4K Triple Display

    17" 4K Triple Display

    MRK-K17 features 17" 4K multi-display that support up to three panels with 3840 x 2160 @60Hz resolution.

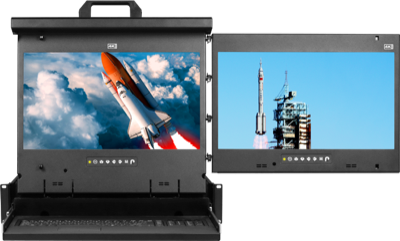

  • MRK-K17 - LH or RH Mounted Dual Display

    LH or RH Mounted Dual Display

    Models with dual display in left hand or right hand mounted available for different installation environment.

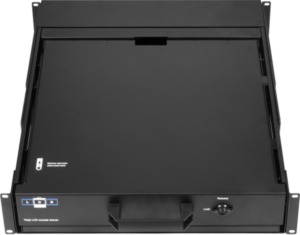

  • MRK-K17 - 2U Rack Mount

    2U Rack Mount

    The 2U 22" depth platform allows for small size and transit case portability.
  • MRK-K17 - Solid and rigid handle

    Solid and rigid handle

    Our special design for multi-display features a firm and rigid handle for easy access.
  • MRK-K17 - LCD Membrane

    LCD Membrane

    Provides a convenient way to control device settings & switch between sources.
  • MRK-K17 - Display Port 1.2 + USB Standard Input

    Display Port 1.2 + USB Standard Input

    Optional HDMI video input, 3G / HD / SD-SDI Broadcast-grade input and DC power input available on request

MRK-K17 Specifications




, ,

Form Factor

2U Rack Mount

Screen Size

17 Inch

Display Resolution

4K UHD (3840 x 2160) @60Hz

Display Brightness

400 cd/m²


Touchpad, Trackball

Triple / Dual (Left or Right Mount) Display,
Dual Stereo Speakers ( Per Display )

15,000 Hours



Support & Downloads

Technical Support

WE ARE HERE TO HELP! Please contact our experts for technical assistance.

Have Any Questions?

    Accept Cookies To Send This Form


    Package Icon

    Package Contents

    • (1) MRK-K17 Console Drawer
    • (2) USB cable
    • (1) Power adapter & Power cord
    • (8) M6 screw, cage nut & cup washer
    • (1) 2-Year standard warranty upgradable up to 5 years
