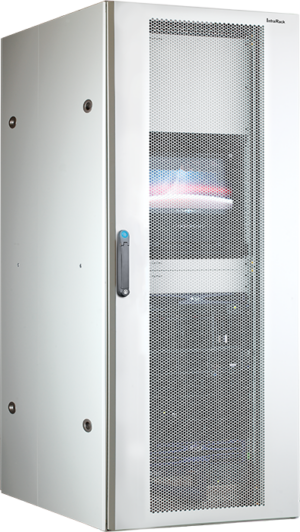

Networked Intelligent Rack


InfraRack Intelligent networked racks are designed to enable management and control of power, cooling, environment and rack access. Supplied with your choice of either Mifare or Proximity smartcard access control handles, management box and temperature sensor for environmental management.

Optional rack power management and cooling solutions can be added to meet clients requirements and pre-configured, delivering a turn-key solution which reduces onsite installation time and enables faster deployment of IT Infrastructure.

Rack Selector

InfraRack Intelligent Networked SeriesInfra-X6-SRInfra-X6-NSRInfra-X8-SRInfra-X8-NSR
Networked Rack
Access Control
X-600: Smart CardYesYes
X-800: Smart Card  YesYes
Rack HandlesElectronic HandlesYesYesYesYes
Control BoxFor Access Control, PDUs, Fans & SensorsYesYesYesYes
Remote ManagementManagement Software & SNMPYesYesYesYes
Smart Card FormatMifare or ProximityYesYesYesYes
Sensor / Peripheral
Temperature SensorYesYesYesYes
LED Light BarYesYesYesYes
52UYes Yes
Width600 mmYesYesYesYes
800 mmYesYesYesYes
Depth1072 mmYesYesYesYes
1200 mmYesYesYesYes
DoorsFull Perforated - Front DoorYesYesYesYes
Perforated Split - Rear DoorYesYesYesYes
Full Perforated - Rear DoorOptional
Fan DoorsOptional
Tempered Glass DoorOptional
Steel Door - Vented Top/BottomOptional
SidesLockable Side Panels - SplitYes Yes
Lockable Side Panels - Full Yes Yes
19" Rails19″ Rails x 4 inc. "U" Unit MarkYesYesYesYes
Top CoverWith Cable Access ChannelYesYesYesYes
Enhanced FrameworksAllows Multi-direction PathwayYes Yes
Weight Loading (Static)1000 kg / 2200 lb Yes Yes
1500 kg / 3300 lbYes Yes
ColorBlack RAL 9005YesYesYesYes
White RAL 9016YesYesYesYes
(Included as Standard)
Heavy Duty Caster - set of 4YesYesYesYes
Adjustable Feet - set of 4YesYesYesYes
Earthing KitYesYesYesYes
* See individual rack drawings for exact dimensions
** Custom dimension & color on request
