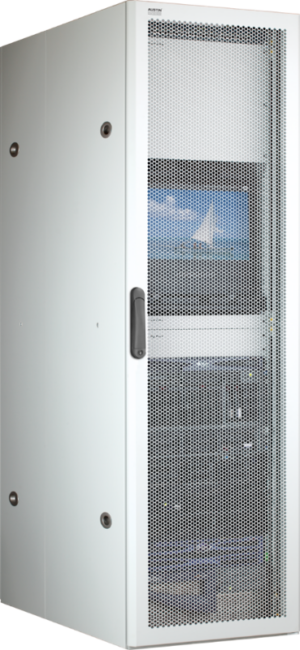

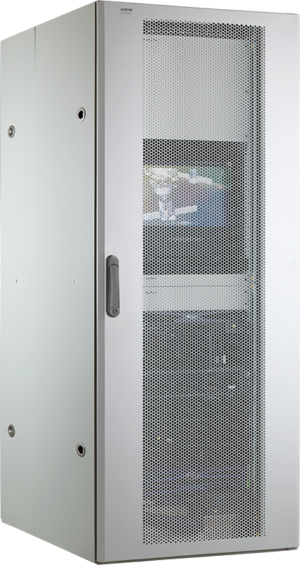

SR Heavy Duty Server Rack

UltraRack

Flexible, easy to install and energy efficient, the UltraRack heavy-duty rack and options let you address your IT needs quickly. The new UltraRack SR series combines next-generation structural integrity, cooling, power distribution, cable management, security, ease-of-use capabilities, and a wide choice of configuration options for increased flexibility.

UltraRack Heady Duty IT Rack (SR) SeriesSR 600WSR 800WSR 1000W
Height42UYesYesYes
45UYesYesYes
47UYesYesYes
52UYesYes
Depth972 mmYesYesYes
1072 mmYesYesYes
1200 mmYesYesYes
DoorsFull Perforated - Front DoorYesYesYes
Perforated Split - Rear DoorYesYesYes
Full Perforated - Rear DoorOptionalOptional
Fan DoorsOptional
Tempered Glass DoorOptional
Steel Door - Vented Top/BottomOptional
SidesLockable Side Panels - SplitYesYesYes
19" Rails19″ Rails x 4 inc. "U" Unit MarkYesYesYes
Top CoverWith Cable Access ChannelYesYesYes
Enhanced FrameworksAllows Multi-direction PathwayYesYesYes
Tool-less PDU MountingUp to 4 PDUsYesYesYes
Weight Loading (Static)1200 kg / 2640 lb  Yes
1500 kg / 3300 lbYesYes
Co-Location Option2 Cell / Compartment42U - 47U42U - 47U
4 Cell / Compartment42U - 47U42U - 47U
ColorBlack RAL 9005YesYesYes
White RAL 9016YesYesYes
Accessories
(Included as Standard)
Heavy Duty Caster - set of 4YesYesYes
Adjustable Feet - set of 4YesYesYes
Earthing KitYesYesYes
Suggesting ApplicationsRackmount Servers & EquipmentsYesYesYes
Rackmount Switches & RoutersYesYesYes
Cisco Nexus 7000 Series Switches  Yes
Network Structured Cabling YesYes
* See individual rack drawings for exact dimensions
** Custom dimension & color on request
