DVI-D KVM Switch

CyberView

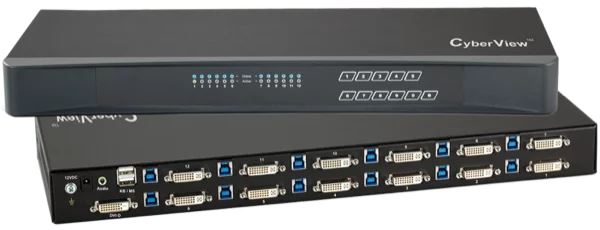

CyberView DVI KVM Switch (CV-1201D) is a single-user, 12-port DVI-D KVM with audio for USB 3.0/2.0/1.1 enabled servers. Our DVI KVM Switch features a slim, rack mountable 1U chassis and allows an administrator to control up to 12 DVI-D servers from one keyboard, mouse and monitor setup. Mix and match operating systems with this multi-platform KVM to control PC, Mac and Sun servers running Windows, OSX and Linux. With the included 4-in-1 KVM cables, the CV-1201D makes an attractive solution to control your high-def DVI-D servers at up to 1920 x 1200 resolution.

No products were found

Try again different with a different selection, or reach out to us!

We don't have results matching your selection yet, but we may be able to find or build you the right product. In addition to our full range of integrated solutions, we offer cost effective OEM / ODM services to cater for new challenges and technologies rapidly emerging from customers’ applications in different industry sectors.

Contact Sales OEM / ODM Inquiry

Control & Switch DVI-D KVM Sources

CyberView DVI KVM Switch (CV-1201D) is a single-user, 12-port DVI-D KVM with audio for USB 3.0/2.0/1.1 enabled servers. Our DVI KVM Switch features a slim, rack mountable 1U chassis and allows an administrator to control up to 12 DVI-D servers from one keyboard, mouse and monitor setup. Mix and match operating systems with this multi-platform KVM to control PC, Mac and Sun servers running Windows, OSX and Linux. With the included 4-in-1 KVM cables, the CV-1201D makes an attractive solution to control your high-def DVI-D servers at up to 1920 x 1200 resolution.

Standalone DVI-D KVM Switch

Stand-alone

Control KVM from a local console
Integrated KVM Switch in 1U Rack Console Drawer

Integrated

Integrate into an Rack Console Drawer

Key Features

High Definition

Supports resolutions up to 1920 x 1200

CyberView DVI-D KVM Switches support uncompressed pixel-perfect digital video at resolutions up to 1920 x 1200 / 1080p (1920 x 1080) @ 60hz.

DVI-D KVM with USB and Audio

CyberView DVI KVMs supports sources with DVI-D video and stereo audio via 3.5mm auxiliary jacks. An integrated transparent 2-port USB 3.0 hub also allows a vast range of USB devices can be connected to the KVM from non standard keyboard / mouse devices to flash drives, printers and scanners.

Support widescreen & native SUN

CyberView DVI KVMs supports widescreen resolutions including 1920 x 1200, and native SUN 1152 x 900 resolutions. Support for VESA DDC2B emulation & TMDS signal pass-through ensures reliable and accurate video display with any system.
Certificate Approval

Certifications

This CyberView DVI KVM has been tested and approved for CE, FCC, RoHS Certifications for IT, manufacturing, SOHO, commercial, military, government, and surveillance applications. For TAA Compliant applications, Austin Hughes KVMs are assembled and tested in California, USA.
Multi-Platform Support

Multi-Platform support

CyberView DVI KVM Switches support any computer platform with USB keyboard and mouse interface, including all versions of Windows, SUN, Mac / Max G3 / G4 Mac / iMac, Linux & SUN systems.
Channel Selection Options

Channel Selection Options

Users can quickly switch between connected computers with customizable hotkey keyboard combinations, by clicking front-panel push buttons, or with a mouse through an on-screen-display menu (OSD).
Hot Pluggable - No software or drivers required

Hot Pluggable - No software or drivers required

CyberView KVMs have been designed to be driver-free to work with all known software and computer platforms. Hot-pluggable design lets you simply add PCs or remove connected PCs for maintenance without powering down the KVM switch or PCs.
DC Power

DC power options available

CyberView KVMs ship with auto-sensing 100 to 240V AC @ 50 / 60Hz power input. For applications that prefer direct current, we also offer optional 12V / 24V / 48V / 125V DC power input.
CyberView DVI-D KVM Switch Diagram

Multi-platform for PC, server, Blade Server & SUN / MAC

CyberView KVMs have been designed to provide driver-free & hot pluggable access to all of your sources regardless of the devices connections or OS. Control up to 12 sources from a single keyboard, monitor, & mouse station.

Multi-platform

DVI-D KVM Cables

Control & switch between sources with video, keyboard, mouse, and audio, with DVI-D KVM cables. 6ft, & 15ft USB-DVI KVM cables are available. CyberView KVM cables allow you to mix and match servers across Windows, Linux, Mac, and other platforms.

Austin Hughes’ CyberView DVI KVM Switches are the perfect solution for applications that require a highly reliable and versatile DVI KVM Switch that doesn’t cost a fortune.

CyberView CI-6 6ft DVI-D + USB KVM Cable

Options & Accessories

KVM Cables

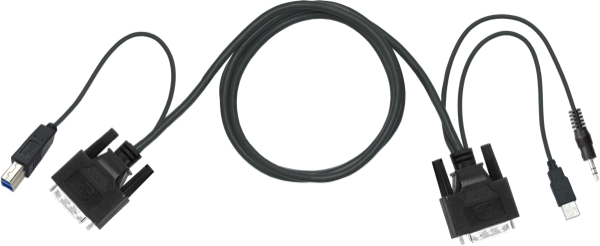

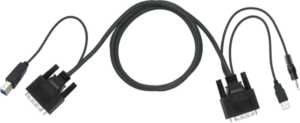

CyberView CI-6 6ft DVI-D + USB KVM Cable

6ft. DVI-D/USB KVM Cable
CI-6

  • CI-6 : 6 feet DVI KVM cable
  • Server end : DVI-D + USB + Audio
  • KVM port : DVI-D + USB3.0

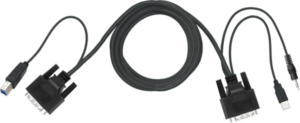

CyberView CI-15 15ft DVI-D + USB KVM Cable

15ft. DVI-D/USB KVM Cable
CI-15

  • CI-15 : 15 feet DVI KVM cable
  • Server end : DVI-D + USB + Audio
  • KVM port : DVI-D + USB3.0

Power Input

AC Power

AC Power

  • AC to DC Adapter with 6ft Power Cord
  • Auto-sensing 100 to 240VAC, 50 / 60Hz
  • Max. Power Consumption: 10 Watts
DC Power

DC Power

  • Optional 12V / 24V / 48V / 125V DC Power Input
  • Max. Power Consumption: 10 Watts

High-quality Build with Certifications for any application

Product Warranty

2 years standard warranty on all purchases. Expandable up to 5 years.

Certifications

CE, FCC, REACH, ROHS2 Certified, and TAA Compliant.

Built-to-last

High-quality build with many years of in-market testing.

Global Support

Extensive authorized distributions network around the globe.

Customer Commitment

Enhance customer competitiveness through our world class quality solutions and services.

Go Green Business

BSI ISO9001 / ISO14001 accredited ensuring maximum operating efficiency.
