1-Phase Inline Meter

110V / 208V / 230V

InfraPower 1-Phase Inline Meter is the most effective PDU enhancement approach to upgrade your basic 1-Phase PDUs with local monitoring plus remote management. Single feed in-line meter simply connects between the single basic PDU and the power source. Dual feed in-line meter model is available for providing metering features to two basic PDUs in the a same rack. Users also benefit from network IP saving, as two basic PDUs can be accessed remotely by one single IP. Real time power monitoring is available via the upgraded PDU with the Inline Meter.

No products were found

Try again different with a different selection, or reach out to us!

We don't have results matching your selection yet, but we may be able to find or build you the right product. In addition to our full range of integrated solutions, we offer cost effective OEM / ODM services to cater for new challenges and technologies rapidly emerging from customers’ applications in different industry sectors.

Contact Sales OEM / ODM Inquiry

In-Line Power Meter

InfraPower 1-Phase Inline Meter is the most effective PDU enhancement approach to upgrade your basic 1-Phase PDUs with local monitoring plus remote management. Single feed in-line meter simply connects between the single basic PDU and the power source. Dual feed in-line meter model is available for providing metering features to two basic PDUs in the a same rack. Users also benefit from network IP saving, as two basic PDUs can be accessed remotely by one single IP. Real time power monitoring is available via the upgraded PDU with the Inline Meter.

Single Feed

  • Metering for (1) Sources

Dual Feed

  • Metering for (2) Sources

110V

Certified for TUV, cUL, FCC
More Details

208V

Certified for TUV, cUL, FCC
More Details

230V

Certified for CE
More Details

Key Features

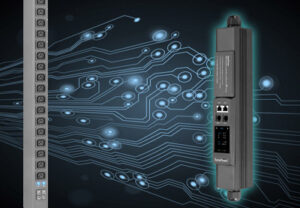

1-Phase In-Line Meter Quick and Easy PDU Upgrade

Quick & Easy PDU Upgrade

The InfraPower Inline Meter simply connects between the existing basic PDU and the power source. It eliminates the need to replace every rack PDU installed, dramatically reducing the project implementation time.

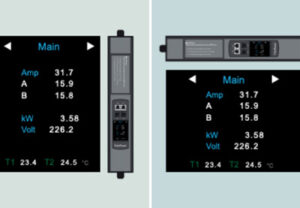

1-Phase In-Line Meter Vertical or Horizontal

Vertical or Horizontal

Both vertical and horizontal mounting kits are provided. The sophisticated 2.8" touchscreen meter display can be set to vertical or horizontal layout, whichever is most convenient to the installation.
Remote PDU Monitoring

Remote PDU Monitoring

InfraPower offers 3 kinds of remote monitoring solutions for users' selection - Free IPM-04 management software ( supports up to 800 PDUs ), Web-base GUI or Integration to 3rd party DCIM via SNMP.
Single Feed or Dual Feed Rack In-line Meter

Single Feed or Dual Feed

A Single Feed In-Line Meter is the cost efficient metering solution for one basic PDU. Dual Feed In-Line Meters are also available, providing metering features to two basic PDUs in the same rack. Users can also benefits from network IP saving, as two basic PDUs can be accessed remotely by one single IP.
2.8" Touchscreen Meter

2.8” Touchscreen Meter

The sharp and highly visible 2.8" touchscreen LCD provides local data of current (AMP), voltage (Volt), power (KW), power factor, energy consumption (KWh) of entire PDU. This data has a metering accuracy to within +/- 1%.
Save IP Address Cost

Save IP Address Cost

InfraPower Inline Meter is designed to support daisy chain connections. It allows up to 16 Inline Meters to be cascaded via Cat6 cables - All the PDUs with Inline Meters are remotely accessed via a single network IP.

Inline Meter with 2.8” Touchscreen LCD

The 2.8” color LCD with touchscreen provides a sharp and highly visible display of kWh, kW, Power Factor, Volt, Amp, Temp. & Humid.

Apart from metering, InfraPower Inline Meter provides ports for daisy chain and sensor connection.
W meter is field replaceable unit which is hot swappable without the need to power down the PDU and the mission critical equipment.

1-Phase PDU LCD Touchscreen Diagram

Meter Reading & Setting

Amp, kW, Volt - PDU Power Meter Screen - 1-Phase PDU
PDU Overview - PDU Power Meter Screen - 1-Phase PDU
Amperage & Peak Load Amp - Meter Screen - 1-Phase PDU
Power Factor, Active Power, Apparent Power, Frequency - PDU Power Meter Screen - 1-Phase PDU
Temperature & Humidity - PDU Power Meter Screen - 1-Phase PDU
System Overview - PDU Power Meter Screen - 1-Phase PDU

IP Dongle

With any rack mount device or inline power meters, one of the largest challenges is to integrate the device into the data centre environment without simply building up additional connectivity, cable run, patch panel etc. or network related costs.

Only one PDU IP Dongle allows access to all the Inline Meters in a single daisy chain – which is a highly efficient application for saving not only the IP remote accessories cost, but also the true IP addresses required for power management.

InfraPower IP Dongle IPD-02-S

IPD-02-S  PDU IP Dongle

Up to 16 levels in daisy chain

Hot-Pluggable design facilitates the PDU IP Dongle installation. Simply integrate the PDU IP Dongle to the first Inline power meter, then the entire daisy chain group can be remote over IP.

The new stylish Dual Lan PDU IP Dongle provides standard 10/100 & Gigabit Ethernet ports. The PDUs or Inline Meters in daisy chain can be accessed via two separate networks and hence the connection can be secured by dual LAN network. Apart from wired connection, WIFI connection is also available by optional USB port.

Dual Lan IP Dongle

IPD-03-S  PDU IP Dongle – Dual LAN

Up to 32 levels in daisy chain

Daisy Chain Cascades up to 16 / 32 Levels

InfraPower Inline Meter not only provides the local power monitoring, but also the connection ports for daisy chain. Each Inline Meter can be easily be connected to the next in a series using Cat5/6 cables. The standard PDU IP Dongle (IPD-02-S) supports up to 16 Inline Meters in one daisy chain group. With the new Dual Lan PDU IP Dongle (IPD-03-S), up to 32 daisy chain levels can be achieved.

Inline Meter IP Dongle Cascade Connection Diagram

Power Management Over IP

Remote Power management helps reducing manpower and hence improving uptime and productivity. It also benefits users with capacity planning and increasing the overall efficiency of the data center. InfraPower® Inline Meter offers 3 kinds of remote management solutions for users’ selection.

Integrated Web-based Management Software (GUI)

A web-based GUI is integrated with our Inline Meters. It is ideal for some users who simply require the power
monitoring of power sources over IP.

Control Through 3rd Party DCIM via SNMP

Nowadays, many data centers apply the DCIM ( Data Center Infrastructure Management ) in order to centralize the management for monitoring power, cooling and environmental factors across facilities and IT systems. InfraPower Inline Meter supports SNMP integration and hence user can remotely manage the power via their DCIM.

Free PDU Management Software (IPM-04)

InfraPower Manager IPM-04 is the free, powerful and user friendly power management software provided with our Inline Meters. The Administrator can remotely manage their In-line Meters & PDUs and their respective sensors via a web browser. The Windows based software consolidates management of max. 800 single & three phase In-line Meters or PDUs via 50 IP dongles. 5 concurrent user access licenses are part of the IPM-04 bundle, for achieving the demand of multi-user requirements in data center operations.

IPM-04 provides complete PDU monitoring / control and reporting functions for your data center.

See more

Accessories & Options

IP Access Devices

InfraPower IP Dongle IPD-02-S

IP Dongle
IPD-02-S

  • US & wordwide patents
  • All IP remote access
  • Supports up to 16 daisy chained PDUs
  • IP remote access via free management software IPM-04, web GUI & SNMP V2 / V3
  • Detachable design
Dual Lan IP Dongle

Dual Lan IP Dongle
IPD-03-S

  • US & wordwide patents
  • Dual LAN Network Failover
  • Auto-negotiable 10/100 BaseT Ethernet & Gigabit Ethernet standard
  • Enterprise IP Authentication & Remote Management Protocols
  • Supports up to 32 daisy chained PDUs
  • Simultaneous multiple access via free management software IPM-04, web GUI & SNMP V2 / V3
  • USB Wifi Port for connection to Wifi kit ( IPD-WIFI ) with standards 802.11 g/n/ac
  • Detachable design

Sensors & Peripherals

4.3" External PDU Panel

4.3" Door Mount Display Panel
IP-ED-01

  • 2 x InfraPower PDU Connection
  • Supports 1-Phase & 3-Phase PDUs
  • Displays power, temp., humid., smoke or door sensor status
  • Alarm & log
  • Viewable while doors in closed position
  • Resistive touchscreen
  • Panel resolution 480 x 272
  • Horizontal or vertical display option
  • Easily affix to doors by magnetic rear
  • No cut-out / damage required to doors
  • Upgrade standard third party racks to smart and stylish look
  • Plug & Play
Austin Hughes Temperature & Humidity Sensor

Temp. & Humid. Sensor or Temp. Sensor
IG-TH01-2M/4M or IG-T01-2M/4M

  • Plug & Play
  • External sensor with 2M or 4M cord
  • Low profile design with magnetic base for easy affixing to the rack
Smoke Sensor

Smoke Sensor
IP-S01-1M/3M

  • Smoke Sensor with 1M or 3M cord
  • When smoke alarm triggers, sensor red LED lights on with beep sound continuously
Austin Hughes Door Sensor

Door Sensor
IP-DSW-2M/4M

  • Mechanical door sensor with 2M or 4M cord
  • Cost efficient integration into rack
