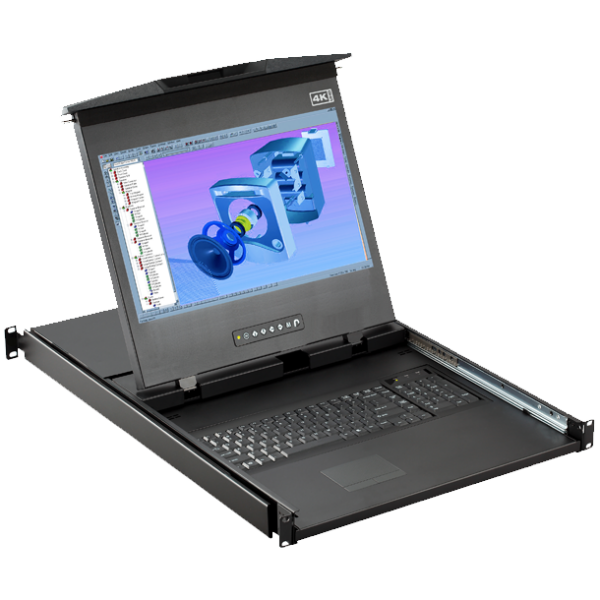

DK117, 1U Dual Slide 17″ 4K LCD Console Drawer

The CyberView DK117 Dual Slide rack console features a 17″ 4K LCD capable of 4K video.

Play Video Where to buy

Benefits

  • 1U 17" 4K LCD console drawer
  • Dual slide - LCD and keyboard slide independently
  • 3840 x 2160 @60Hz native resolution / 16.7M colors ( 8-bit )
  • 1920 x 1080 & 1920 x 1200 resolution support
  • Display port 1.2 video input / USB KB / MS
  • Built-in dual stereo speakers
  • One Man installation design
  • Enhanced aesthetics with 2-point lock
  • 2-year standard warranty ( upgradable up to 5 years )

Options

  • HDMI 2.0 video input
  • 3G / HD / SD-SDI Broadcast-grade input
  • DC power : 12V / 24V / 48V / 125V
  • MAC or SUN Micro keyboard options available

Design

Featuring a 17″ 4K LCD display and notepad keyboard with touchpad or trackball, the CyberView DK117 is the leading Rack Console solution for data centers & other IT environments. Enhance your rack by integrating a monitor, keyboard, mouse, and KVM Switch with this state-of-the- art, modular rack console drawer.

Get Info

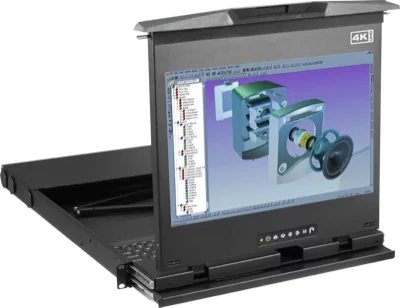

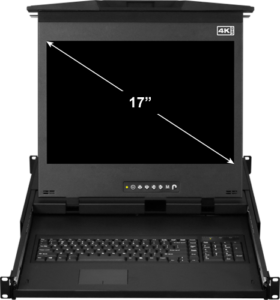

17" Monitor

The DK117 feature a 4K display that support up to 3840 x 2160 @60Hz native resolution / 16.7M colors ( 8-bit ).

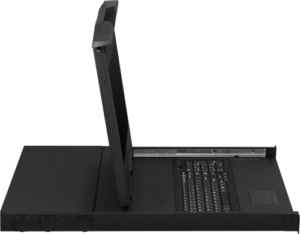

Dual-Slide Design

LCD and keyboard slide independently. Allows you to mount the console in 650mm* of space.

2U Rack Mount

The DK117 mounts into only 2U. of standard 19" Rack Mount Space. Control your datacenter from only 2U.

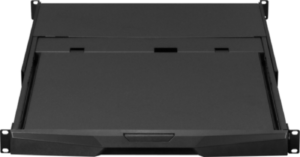

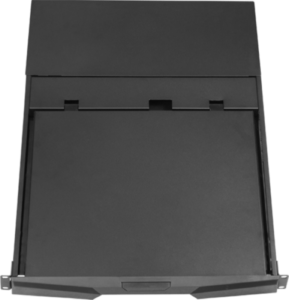

Enhanced aesthetics with 2-point lock

1U slim design with molded front handle

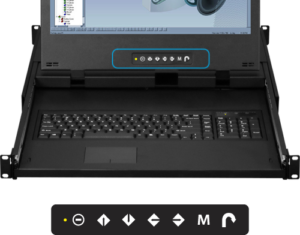

LED Touch OSD

The LED touch On-Screen-Display provides a convenient way to control device settings & switch between sources.

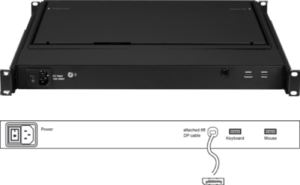

Display Port + USB Standard Input

Modular design supports integrated 4K 60Hz KVM option for your applications.

Integrated KVM Options

Integrated 4K 60Hz KVM Switch

DK117 is available as a stand-alone console, or with an optional 8-Port Austin Hughes CyberView 4K KVM Switch (PN DK117-801K). The KVM mounts into the rear of the 1U chassis and allows an administrator to control up to eight servers from one keyboard, mouse and monitor setup.

These new state-of-art devices support switching between multiple HDMI, DVI, DisplayPort enabled servers with resolutions up to 4K 60Hz. Mix and match operating systems with this multi-platform KVM to control PC.

4K KVM integrated into 1U Rack Console

DK117 Specifications

Brand

CyberView

Mounting

1U

Screen Size

17 Inch

Display Resolution

4K UHD (3840 x 2160) @60Hz

Display Brightness

400 cd/m²

Mouse

Touchpad

MTBF

20,000 Hours

Compliance

CE, FCC, REACH, ROHS2

Support

Technical Support

WE ARE HERE TO HELP! Please contact our experts for technical assistance.

Have Any Questions?

Ordering

Package Icon

Package Contents

  • (1) DK117 Console Drawer
  • (1) attached 6ft DP cable
  • (2) USB cable
  • (1) Power cord
  • (8) M6 screw, cage nut & cup washer
  • (1) 2-Year standard warranty upgradable up to 5 years
