RKP117 / 119, 1U 17″ / 19″ LCD Console Drawer

The CyberView RKP117 / RKP119 rack console features a 17″ / 19″ LCD capable of 1280 x 1024 video.

Play Video Where to buy

Benefits

  • 1U 17" / 19" LCD console drawer
  • 1280 x 1024 native resolution / 16.7M colors
  • 104-key keyboard with either touchpad or trackball
  • Short depth design of 460mm and 500mm respectively
  • One Man installation design
  • Enhanced aesthetics with molded front handle
  • 2-year standard warranty ( upgradable up to 5 years )

Options

  • Front USB hub port for device access
  • DVI-D / HDMI 1.2 video input
  • 3G / HD / SD-SDI Broadcast-grade input
  • 2-post rack mounting brackets ( ORB-2.1 )
  • S-Video + Composite ( BNC )
  • Audio input & output
  • DC power : 12V / 24V / 48V / 125V
  • Projected Capacitive / Capacitive / Resistive Touch
  • MAC or SUN Micro keyboard options available

Design

Featuring a 1280 x 1024 LCD display and notepad keyboard with touchpad or trackball, the CyberView RKP117/ RKP119 is the leading Rack Console solution for data centers & other IT environments. Enhance your rack by integrating a monitor, keyboard, mouse, and KVM Switch with this state-of-the- art, modular rack console drawer.

Get Info

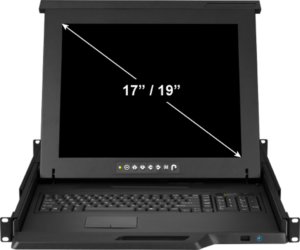

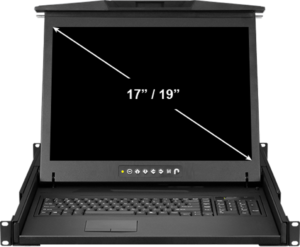

17" / 19" Monitor

The RKP117 or RKP119 feature a high-quality display that support up to 1280 x 1024 with 16.7M colors.

Short-Depth Design

Our Short Depth design allows you to mount the console in only 460mm* of space.

1U Rack Mount

The RKP117 / 119 mounts into only 1U. of 19" Rack Mount Space. Control your entire datacenter from only 1U.

Enhanced Aesthetics with Molded Front Handle

Our Second generation design features a new 1U slim design with a molded front handle for easy access.

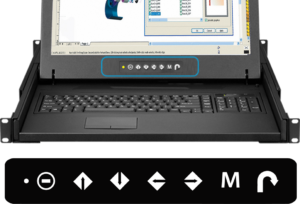

LED Touch OSD

The LED touch On-Screen-Display provides a convenient way to control device settings & switch between sources.

VGA + USB Standard Input

Modular design supports a variety of integrated KVM options for your applications.

Integrated KVM Options

All-in-one Control Solutions

Austin Hughes offers a large variety of KVM switches designed to allow users to control & switch between all the computers in an environment from a single convenient 1U rack mount solution.

CyberView KVMs have been designed to be driver-free to work with all known software and computer platforms, and have been tested and approved for UL, CE, FCC, CCC, RoHS Certifications IT, manufacturing, SOHO, commercial, military, government, and broadcast applications.

Austin Hughes Cat6 KVM Switch with Local Rack Console, IP & Extended Users - Diagram
Austin Hughes CyberView Network IP Session
Network IP Users

Access all your servers remotely over the internet

Use a VNC Viewer or Java Web Browser to connect to computers sources remotely from anywhere in the world. CyberViews IP based method employs enterprise grade security using AES encryption and RSA public key authentication.

Austin Hughes CyberView KVM Extender Receiver
Extended Users

Integrated KVM Extenders – Remote Access

CyberView KVMs can also be optionally controlled by users from up to 150m (500ft) away. Integrated CATx extenders allow you to easily connect the included remote user stations over single CATx cables.

KVM Series

Optimize your rack space by integrating a KVM Switch into your Console Drawer, providing easy installation & streamlined access to your servers in only 1U.

Compare

High-density Cat6 KVM

Matrix Cat6 KVM
Local IP Remote 8-Port 16-Port 32-Port
1 1 1 - RKP117 / 119-MUIP1613 RKP117 / 119-MUIP3213
1 2 1 - RKP117 / 119-MUIP1624 RKP117 / 119-MUIP3224
1 0 1 - RKP117 / 119-MU1602 RKP117 / 119-MU3202
1 0 2 - RKP117 / 119-MU1603 RKP117 / 119-MU3203
1 0 3 - RKP117 / 119-MU1604 RKP117 / 119-MU3204
Manual
Combo Cat6 KVM
Local IP Remote 8-Port 16-Port 32-Port
1 1 0 RKP117 / 119-UIP802 RKP117 / 119-UIP1602 RKP117 / 119-UIP3202
1 0 1 RKP117 / 119-U802 RKP117 / 119-U1602 RKP117 / 119-U3202
1 0 0 RKP117 / 119-U801 RKP117 / 119-U1601 RKP117 / 119-U3201
Manual

2K KVM

2K KVM
Local IP Remote 8-Port
1 0 0 RKP117 / 119-801D
Manual

DVI-D KVM

DVI-D KVM
Local IP Remote 12-Port
1 0 0 RKP117 / 119-1201D
Manual

VGA KVM

Combo VGA DB-15 KVM
Local IP Remote 8-Port 16-Port
1 1 0 RKP117 / 119-IP802 RKP117 / 119-IP1602
1 0 1 RKP117 / 119-802 RKP117 / 119-1602
1 0 0 RKP117 / 119-801 RKP117 / 119-1601
Manual

VGA USB Hub KVM

USB Hub DB-15 KVM
Local IP Remote 8-Port 16-Port
1 1 0 RKP117 / 119-IP802H RKP117 / 119-IP1602H
1 0 1 RKP117 / 119-802H RKP117 / 119-1602H
1 0 0 RKP117 / 119-801H RKP117 / 119-1601H
Manual

RKP117 / 119 Specifications

Brand

CyberView

Mounting

1U

Screen Size

17 Inch / 19 Inch

Display Resolution

1280 x 1024

Display Brightness

250 cd/m²

Mouse

Touchpad, Trackball

MTBF

30,000 Hours

Compliance

CE, FCC, CCC, REACH, ROHS2

Support

Technical Support

WE ARE HERE TO HELP! Please contact our experts for technical assistance.

Have Any Questions?

Ordering

Package Icon

Package Contents

  • (1) RKP117 Console Drawer
  • (1) 6ft VGA console cable
  • (1) Power cord
  • (8) M6 screw, cage nut & cup washer
  • (1) 2-Year standard warranty upgradable up to 5 years
