F32, Professional and Versatile 32″ FHD LED Monitor

The UltraView F32 is a 32″ high-quality LED monitor with support for FHD ( 1920 x 1080 ) resolution. F32 offers versatile options to fit into any application!

Compare

Benefits

  • 1920 x 1080 native FHD resolution
  • 1.07 billion colors ( 10-bit )
  • DVI-D + VGA + HDMI 1.4 video input
  • Display port video input ( option )
  • Video decoding capability up to 1080p ( option )
  • Rugged structure ensures high mobility
  • IP65 front protection ( NAP series )
  • Professional-use durability & around-the-clock operation
  • 2-year standard warranty ( upgradable up to 5 years )
  • Dark aluminum chassis color

Options

  • DC power
  • Touchscreen
  • IP65 front protection
  • Custom chassis & mounting
  • High Brightness panel
  • Embedded Brightness Dimming Module
  • HDMI decoder & extender
  • Embedded 3G / HD / SD-SDI Input Module
  • Embedded HDMI Quad Display Module 1080p over network

Design

F32 - F32"

F32"

UltraView F32 series 32" FHD LED monitor supports 1920 x 1080 resolution. 16.7 million colors achieve optimal picture quality. Improved energy efficiency and fan-less architecture provides professional-use durability and around the-clock operation

F32 is more than just a standalone monitor. UltraView has a variety of embedded modules including HDMI Decoder, HDMI Extender, HDMI Quad display Extender, Multi-Monitor OSD Controller, SDI Input and Portrait Mode Kit. The embedded modules give you the ability of video remote management and transmission for multiple monitors over network.

As a versatile FHD monitor, F32 is meticulously designed to meet professional and environmental demands including Sunlight readable brightness, IP54 Front protection, Multi-touch, Anti-reflective/Vandal proof glass, DC power input, Brightness dimming and Mounting kit for Overhead tilted wall-mount, Panel-mount, VESA-mount, Universal-mount and Desktop stand.

With over 22 years’ production experience, the F32 structure is well-engineered and manufactured by our own CNC facilities and team of experts to ensure its ruggedness, mobility and quality, as well as being suitable for harsh environment applications. The structure can be customized if required to facilitate monitor installation. Our knowledgeable engineers are able to provide frame customization for specific dimensions, color, metal treatment, screen printing, bezel and mounting.

Models

Standard Brightness (300 cd/m²)

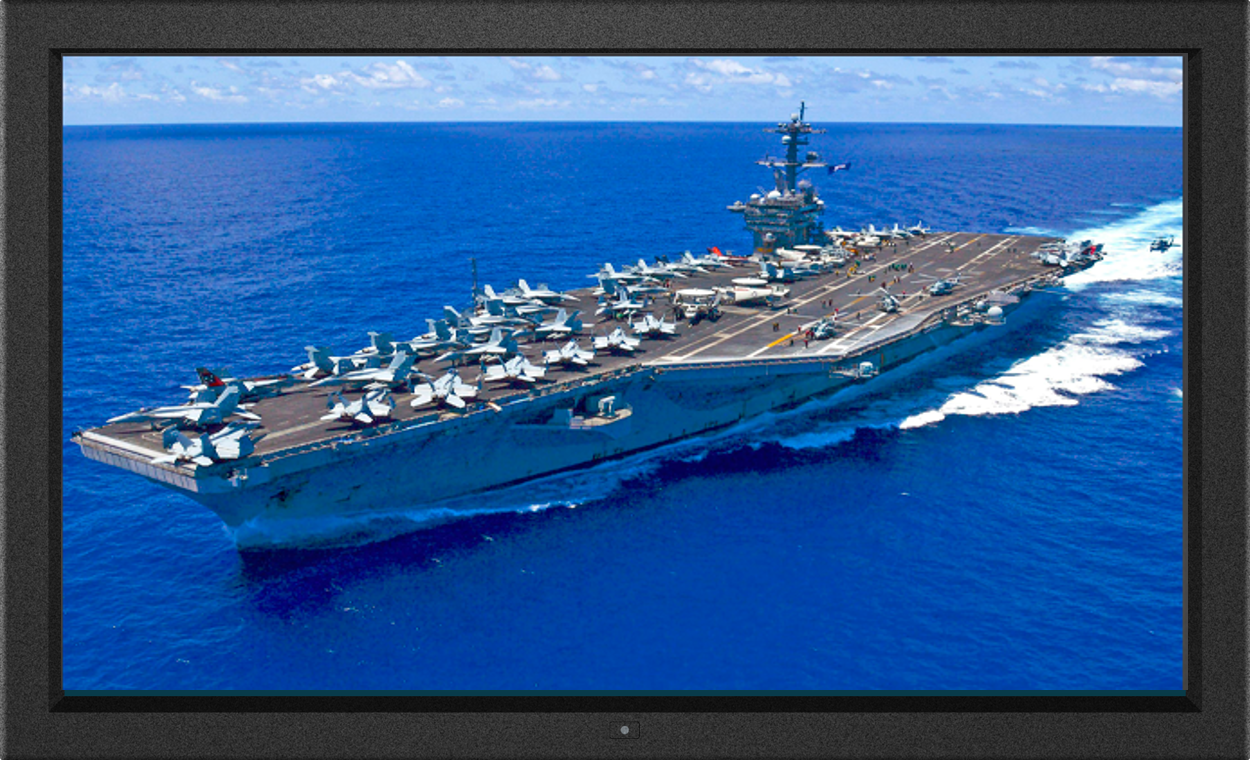

AP-F32, Professional and Versatile 32" FHD LED Monitor - Standard Brightness (300 cd/m²) - 6mm aluminum front bezel

AP-F32

6mm aluminum front bezel

NAP-F32, Professional and Versatile 32" FHD LED Monitor - Standard Brightness (300 cd/m²) - 6mm aluminum front bezel + NEMA 4 / IP65 front protection
NEMA 4 / IP65 front protection

NAP-F32

6mm aluminum front bezel
+ NEMA 4 / IP65 front protection

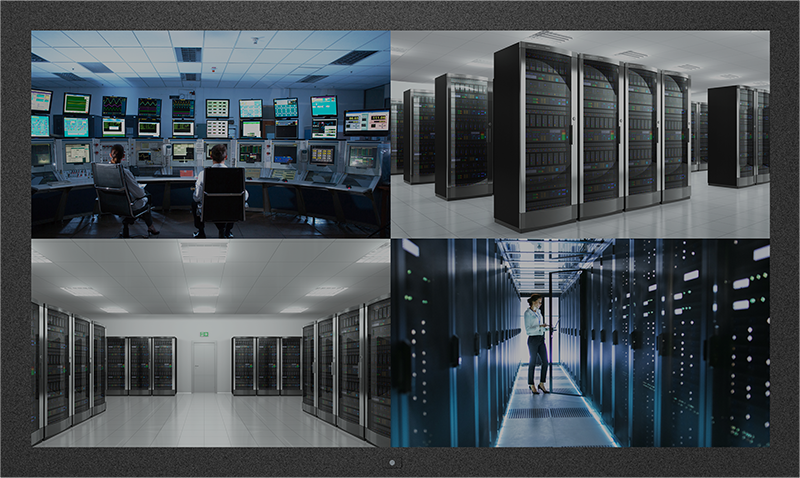

DP-F32, Professional and Versatile 32" FHD LED Monitor - Standard Brightness (300 cd/m²) - Aluminum front cover

DP-F32

Aluminum front cover

OP-F32, Professional and Versatile 32" FHD LED Monitor - Standard Brightness (300 cd/m²) - Universal open frame

OP-F32

Universal open frame

MP-F32

Industrial Display Kit

  • FHD 32_ LED
  • LCD controller
  • AC power

Sunlight Readable Brightness (1,500 cd/m²)

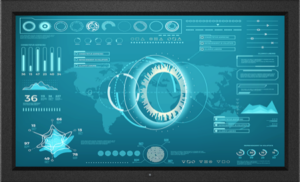

HAP-F32, Professional and Versatile 32" FHD LED Monitor - Sunlight Readable Brightness (1,500 cd/m²) - 6mm aluminum front bezel
Sunlight Readable Brightness

HAP-F32

6mm aluminum front bezel

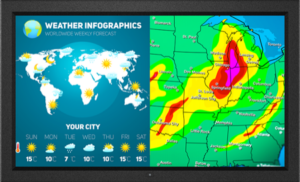

HNAP-F32, Professional and Versatile 32" FHD LED Monitor - Sunlight Readable Brightness (1,500 cd/m²) - 6mm aluminum front bezel + NEMA 4 / IP65 front protection
Sunlight Readable Brightness
NEMA 4 / IP65 front protection

HNAP-F32

6mm aluminum front bezel
+ NEMA 4 / IP65 front protection

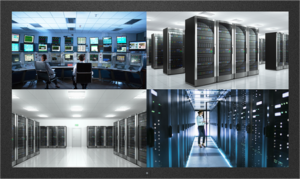

HDP-F32, Professional and Versatile 32" FHD LED Monitor - Sunlight Readable Brightness (1,500 cd/m²) - Aluminum front cover
Sunlight Readable Brightness

HDP-F32

Aluminum front cover

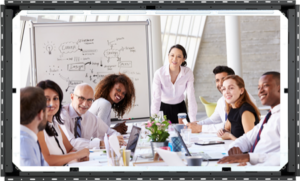

HOP-F32, Professional and Versatile 32" FHD LED Monitor - Sunlight Readable Brightness (1,500 cd/m²) - Universal open frame
Sunlight Readable Brightness

HOP-F32

Universal open frame

F32 Specifications

SKU F32
Brand

UltraView

Categories

,

Screen Size

32 Inch

Display Resolution

1080p FHD (1920 x 1080)

Display Brightness

1,500 cd/m² / 300 cd/m²

MTBF

30,000 Hours

Compliance

CE, FCC, REACH, RoHS3

Support & Downloads

Technical Support

WE ARE HERE TO HELP! Please contact our experts for technical assistance.

Have Any Questions?

    Ordering

    Package Icon

    Package Contents

    • (1) 32" FHD LCD Monitor
    • (1) 6ft VGA cable
    • (1) Power cord
    • (1) Remote controller
    • (1) 2-Year standard warranty upgradable up to 5 years
