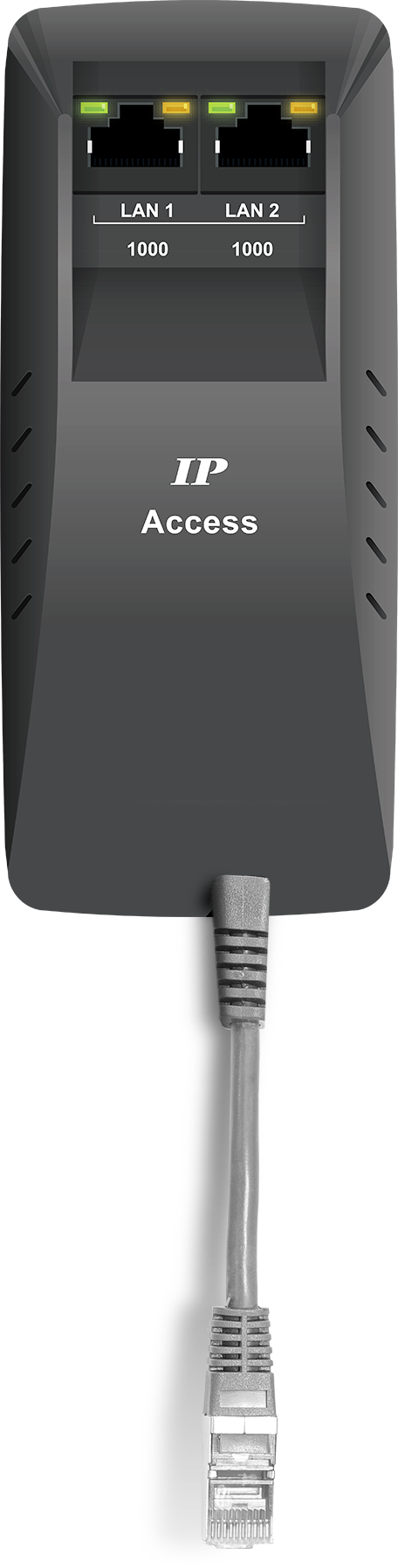

IPD-03-S, Dual LAN IP Dongle – Vertical

The new stylish Dual Lan PDU IP Dongle (Vertical) provides standard 2 x Gigabit Ethernet ports. The PDUs in daisy chain can be accessed via two separate networks and hence the PDU connection can be secured by dual LAN network. Apart from wired connection, WIFI connection is also available by optional USB port.

SKU: IPD-03-S Category:

Product Series: Dual Lan IP Dongle (For 0U / 2U iPDU)

Benefits

  • US & wordwide patents
  • Dual LAN Network Failover
  • Auto-negotiable 2 x Gigabit Ethernet standard
  • Enterprise IP Authentication & Remote Management Protocols
  • Supports up to 32 daisy chained iPDUs
  • Simultaneous multiple access via free management software IPM-04, web GUI & DCIM
  • DCIM Support - via SNMP V2 / V3 or REST API
  • USB Wifi Port for connection to Wifi kit ( IPD-WIFI ) with standards 802.11 g/n/ac
  • For 0U / 2U iPDU
  • Detachable design

Options

Design

Patented Dual LAN PDU IP Dongle (Vertical) provides IP remote access to the PDUs by a true network IP address chain. Only one network IP is required for maximum 32 PDUs in a single daisy chain. InfraPower offers 3 kinds of remote management solutions for users’ selection. Management Software IPM-04, Web-based GUI, or 3rd Party DCIM via SNMP. The free but comprehensive IPM-04 supports up to 50 IP groups. Hence, max 800 / 1600 PDUs can be remotely managed from anywhere.

Dual LAN Network Failover

Dual LAN Network Failover

  • Auto failover to a 2nd Ethernet-connection in the event of network interruption
  • Ensuring 100% iPDU uptime reporting
Connectivity

Connectivity

  • Access your iPDU on two independent networks or VLANs
  • Auto-negotiable 2 x Gigabit Ethernet ports
  • Redundant network access to the connected iPDUs via IP
Enterprise Level IP Authentication

Enterprise Level IP Authentication

  • Active Directory (AD), Lightweight Directory Access Protocol (LDAPv3 / LDAPS), Remote Access Dial-In User Service (RADIUS) protocol, or local credential database.
  • Strong passwords and granular user/user group permissions
DCIM Integration Support

DCIM Integration Support

  • SNMP V2 / V3
  • REST API
Remote Management

Remote Management

  • Significantly reduce the number of Ethernet ports used in deployment by cascading a single network connection across multiple iPDUs (up to 32)
  • Simultaneous access via free management software IPM-04, web GUI & SNMP V2 / V3
  • Remote level & ID setting for cascaded iPDU’s
Alerts / Alarms

Alerts / Alarms

  • Receive alerts via SNMP, email (SMTP), and syslog when predefined thresholds are exceeded for both iPDU and environmental sensor events.
  • Common SNMP MIBs (Management Information Base) across all iPDU families
USB Wifi Port

USB Wifi Port

  • Optionally connect via a Wifi kit (IPD-WIFI) complying with 802.11 g/n/ac
Remote Management Protocols

Remote Management Protocols

  • HTTP(S); SSH Command Line Interface; Telnet; SMTP; IPv6/IPv4

Get Info

    IPD-03-S Specifications

    SKU IPD-03-S
    Brand

    InfraPower

    Categories

    Product Series

    Dual Lan IP Dongle, Dual Lan IP Dongle (For 0U / 2U iPDU)
