Cat6 KVM Switch

CyberView

CyberView Cat6 KVM Switches allow you to mix and match a variety of sources, and control of them from one keyboard, mouse and keyboard (BIOS-level). CyberView Cat6 KVMs support a variety of video inputs from DisplayPort, HDMI, DVI, & VGA, with resolutions up to 1080p. Daisy chain connections allows up to 8 KVMs to be cascaded to access up to 256 source devices.

No products were found

Try again different with a different selection, or reach out to us!

We don't have results matching your selection yet, but we may be able to find or build you the right product. In addition to our full range of integrated solutions, we offer cost effective OEM / ODM services to cater for new challenges and technologies rapidly emerging from customers’ applications in different industry sectors.

Contact Sales OEM / ODM Inquiry

CyberView Cat6 KVM Switches

CyberView Cat6 KVM Switches allow you to mix and match a variety of sources, and control of them from one keyboard, mouse and keyboard (BIOS-level). CyberView Cat6 KVMs support a variety of video inputs from DisplayPort, HDMI, DVI, & VGA, with resolutions up to 1080p. Daisy chain connections allows up to 8 KVMs to be cascaded to access up to 256 source devices.

Standalone Cat6 KVM Switch

Stand-alone

Control KVM from a local console
Integrated KVM Switch in 1U Rack Console Drawer

Integrated

Integrate into an Rack Console Drawer

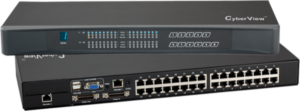

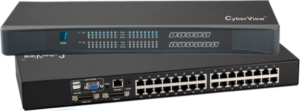

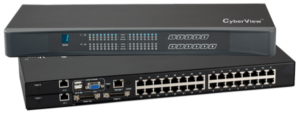

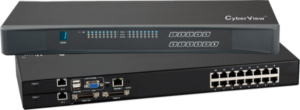

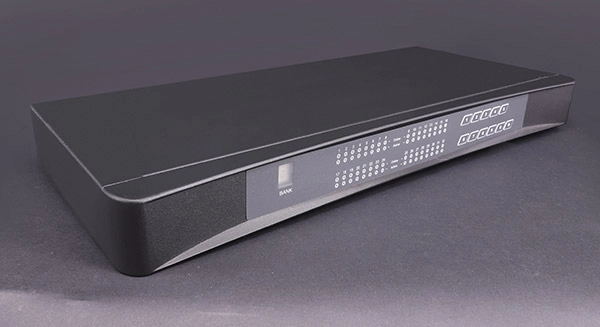

Matrix Cat6 KVM

Multi-User Access from Local, Extended & IP consoles
More details

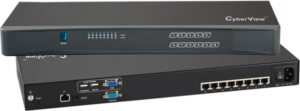

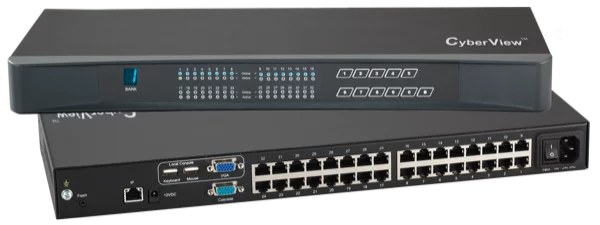

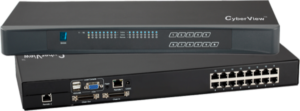

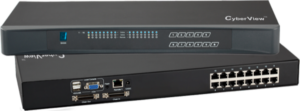

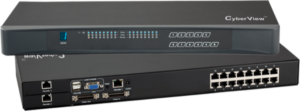

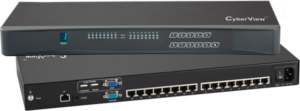

Combo Cat6 KVM

Single-User Access from Local, Extended & IP consoles
More details

Key Features

High Definition

High Definition 1080p Resolution

CyberView Cat6 KVM Switches support uncompressed pixel-perfect digital video at resolutions up to 1080p (1920 x 1080 @ 60Hz).

Broad Video Support VGA, DVI, HDMI, & DisplayPort

CyberView Cat6 KVMs support any combination of VGA, DVI, HDMI, USB-C, DisplayPort, USB, and PS/2 sources with optional audio through low-cost KVM dongles. Source computers can be located up to 131 feet (40 m) away via Cat5/6 cable.

Access Locally or Remotely

CyberView Cat6 KVM Switches have multiple ways of controlling & switching source computers; Locally from a user station, from a web browser or VNC client over IP, and remotely from up to 500ft (150m) away through integrated CATx extenders. Pick and choose the right model for your application.
Certificate Approval

Certifications

These CyberView KVMs have been tested and approved for CE, FCC, RoHS Certifications for IT, manufacturing, SOHO, commercial, military, government, and surveillance applications. For TAA Compliant applications, Austin Hughes KVMs are assembled and tested in California, USA.
Multi-Platform Support

Multi-Platform support

CyberView KVM Switches support any computer platform with USB keyboard and mouse interface, including all versions of Windows, Mac, Linux & SUN systems.
Channel Selection Options

Channel Selection Options

Users can quickly switch between connected computers with customizable hotkey keyboard combinations, by clicking front-panel push buttons, or with a mouse through an on-screen-display menu (OSD).
Hot Pluggable - No software or drivers required

Hot Pluggable - No software or drivers required

CyberView KVMs have been designed to be driver-free to work with all known software and computer platforms. Hot-pluggable design lets you simply add PCs or remove connected PCs for maintenance without powering down the KVM switch or PCs.

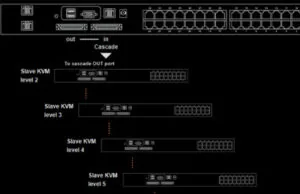

Easy Expansion KVM Cascading

Easy Expansion - KVM Cascading

Expand up to 256 source computers simply by linking Cat6 Matrix KVM units using cascade cables. CyberView Cat6 KVMs automatically detect up to 8 levels of cascade connections, letting you control and switch between all connected sources.

Access Methods

CyberView Cat6 KVMs can be used in a variety of applications, from single user, to large complex multi-user matrix applications. These KVMs can be accessed from the local user station, remotely using integrated Cat6 extender(s), or from a VNC client / Web Browser using Network IP.

CyberView KVMs have been designed to be driver-free to work with all known software and computer platforms, and have been tested and approved for UL, CE, FCC, CCC, RoHS Certifications.

Austin Hughes Cat6 KVM Switch with Local Rack Console, IP & Extended Users - Diagram
Austin Hughes CyberView Network IP Session
Network IP Users

Access all your servers remotely over the internet

Use a VNC Viewer or Java Web Browser to connect to computers sources remotely from anywhere in the world. CyberViews IP based method employs enterprise grade security using AES encryption and RSA public key authentication.

Austin Hughes CyberView KVM Extender Receiver
Extended Users

Integrated KVM Extenders – Remote Access

CyberView KVMs can also be optionally controlled by users from up to 150m (500ft) away. Integrated CATx extenders allow you to easily connect the included remote user stations over single CATx cables.

CyberView Cat6 KVM Diagram

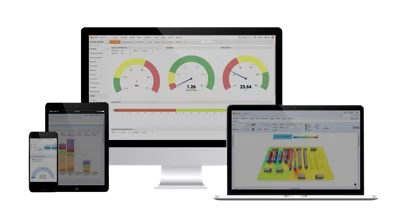

Server, Desktop PC & Mobile Phone / Tablet Support

CyberView Cat6 KVMs have been designed to provide driver-free & hot pluggable access to all of your sources regardless of the devices connections or OS. Control up to 32 sources (256 cascaded) from a single keyboard, monitor, & mouse station.

For models with remote IP users, our hardware-based VNC-Over-IP solution also supports remote access to source serves via a Mobile Phone & Tablets, using native apps such as Real VNC.

IP Control

DisplayPort, HDMI, DVI, & VGA Sources with Resolutions up to 1080p

Control & switch between any combination of up to (256) HDMI, DisplayPort, DVI-D, VGA, USB & PS/2 sources, using our low-cost KVM dongles. Source computers can be located up to 130 feet (40 m) away via a single Cat5/6 cable, while still providing full loss-less high-quality 1920 x 1080 @ 60Hz video.

Austin Hughes’ CyberView Cat6 KVM Switches are the perfect single-stop solution for applications with different video or higher resolution requirements.

Daisy Chain Cascades up to 8 Levels

CyberView Cat6 KVM Switches provide a connection ports for daisy chaining multiple KVM units together. This allows you to access up to 256 source servers from a single KVM locally or remotely. For daisy chaining KVMs, simply connect each KVM in the series to the next* using our cascade cables. Up to 8 KVMs are supported in one daisy chain group.

CyberView Cat6 KVM Daisy Chain Diagram

Options & Accessories

KVM Cables

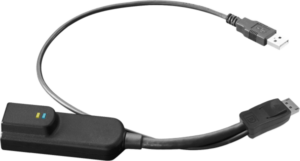

CyberView DG-100P DisplayPort + USB Cat6 KVM Dongle

DisplayPort USB KVM Dongle
DG-100P

  • Server-end: DisplayPort + USB-A
  • KVM port: Cat6
  • Access keyboard, video, and mouse via single Cat5 / 6 / 7 cable
  • Source computers can be located up to 130 feet (40 m) away
  • Supports resolutions up to 1920 x 1080

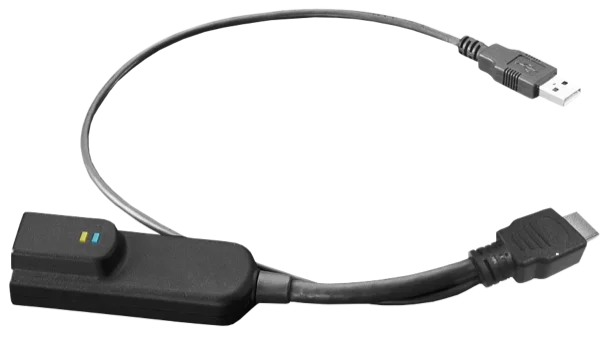

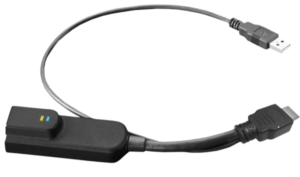

CyberView DG-100H HDMI + USB Cat6 KVM Dongle

HDMI USB KVM Dongle
DG-100H

  • Server-end: HDMI + USB-A
  • KVM port: Cat6
  • Access keyboard, video, and mouse via single Cat5 / 6 / 7 cable
  • Source computers can be located up to 130 feet (40 m) away
  • Supports resolutions up to 1920 x 1080

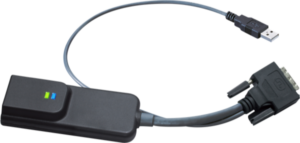

CyberView DG-100SD DVI-D + USB Cat6 KVM Dongle

DVI USB KVM Dongle
DG-100SD

  • Server-end: DVI-D + USB-A
  • KVM port: Cat6
  • Access keyboard, video, and mouse via single Cat5 / 6 / 7 cable
  • Source computers can be located up to 130 feet (40 m) away
  • Supports resolutions up to 1920 x 1080

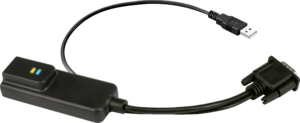

CyberView DG-100S VGA + USB Cat6 KVM Dongle

VGA USB KVM Dongle
DG-100S

  • Server-end: VGA + USB-A
  • KVM port: Cat6
  • Access keyboard, video, and mouse via single Cat5 / 6 / 7 cable
  • Source computers can be located up to 130 feet (40 m) away
  • Supports resolutions up to 1920 x 1080
CyberView DG-100 VGA + PS/2 Cat6 KVM Dongle

VGA PS/2 KVM Dongle
DG-100

  • Server-end: DisplayPort + PS/2
  • KVM port: Cat6
  • Access keyboard, video, and mouse via single Cat5 / 6 / 7 cable
  • Source computers can be located up to 130 feet (40 m) away
  • Supports resolutions up to 1920 x 1080

KVM Expansion

CyberView CBC-6 Combo KVM Cascade Cable

6ft Cascade KVM Cable - for Combo Cat6 KVM
CBC-6

  • Cable for linking two or more Combo Cat6 KVM switches together.
  • Control up to 256 servers from one keyboard, mouse, and monitor station
  • Up to 8 KVMs are supported in one daisy chain group.

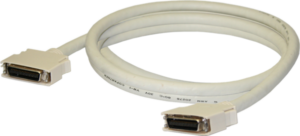

CyberView CMC-8 Matrix KVM Cascade Cable

8ft Cascade KVM Cable - for Matrix Cat6 KVM
CMC-8

  • Cable for linking two or more Matrix Cat6 KVM switches together.
  • Control up to 256 servers from one keyboard, mouse, and monitor station
  • Up to 8 KVMs are supported in one daisy chain group.

Power Input

AC Power

AC Power

  • AC to DC Adapter with 6ft Power Cord
  • Auto-sensing 100 to 240VAC, 50 / 60Hz
  • Max. Power Consumption: 10 Watts
DC Power

DC Power

  • Optional 12V / 24V / 48V / 125V DC Power Input
  • Max. Power Consumption: 10 Watts

High-quality Build with Certifications for any application

Product Warranty

2 years standard warranty on all purchases. Expandable up to 5 years.

Certifications

UL, CE, FCC, REACH, ROHS2 Certified, and TAA Compliant.

Built-to-last

High-quality build with many years of in-market testing.

Global Support

Extensive authorized distributions network around the globe.

Customer Commitment

Enhance customer competitiveness through our world class quality solutions and services.

Go Green Business

BSI ISO9001 / ISO14001 accredited ensuring maximum operating efficiency.
