1-Phase Z & M iPDU

InfraPower

Single Phase Rack Power Distribution Units help data center IT managers meet their rapidly escalating power requirements. Offered in a variety of sizes and configurations, InfraPower 1 Phase PDUs can be tailored to specific voltage, current, and connection needs, providing flexibility to address diverse power distribution requirements within the data center.

Z series IP PDUs are embedded with dual Gigabit ethernet LAN IP for redundant network access via IP, whilst M series Serial PDUs. Both Z & M series PDUs are featuring the newly designed smart meters and patented slide-lock IEC C13 / C19 / Combo C13/C19 outlets.

Monitored & Switched iPDU models are available to provide comprehensive remote monitoring, and on/off outlet switching functionality from anywhere in the world.

PDU Selector

Z & M Series 1-Phase PDU Model Coverage

Single Phase Rack Power Distribution Units help data center IT managers meet their rapidly escalating power requirements. Offered in a variety of sizes and configurations, InfraPower 1 Phase PDUs can be tailored to specific voltage, current, and connection needs, providing flexibility to address diverse power distribution requirements within the data center.

Z series IP PDUs are embedded with dual Gigabit ethernet LAN IP for redundant network access via IP, whilst M series Serial PDUs. Both Z & M series PDUs are featuring the newly designed smart meters and patented slide-lock IEC C13 / C19 / Combo C13/C19 outlets.

Monitored & Switched iPDU models are available to provide comprehensive remote monitoring, and on/off outlet switching functionality from anywhere in the world.

  • Z-2100 ( Z )

    • Embedded Dual IP
    • Strip Monitoring
    • Circuit Monitoring
  • Z-2200 ( Zi )

    • Embedded Dual IP
    • Strip Monitoring
    • Circuit Monitoring
    • Outlet Monitoring
  • Z-2300 ( ZS )

    • Embedded Dual IP
    • Strip Monitoring
    • Circuit Monitoring
    • Outlet Switching
  • Z-2400 ( ZSi )

    • Embedded Dual IP
    • Strip Monitoring
    • Circuit Monitoring
    • Outlet Monitoring
    • Outlet Switching
  • M-2100 ( M )

    • Strip Monitoring
    • Circuit Monitoring
  • M-2200 ( Mi )

    • Strip Monitoring
    • Circuit Monitoring
    • Outlet Monitoring
  • M-2300 ( MS )

    • Strip Monitoring
    • Circuit Monitoring
    • Outlet Switching
  • M-2400 ( MSi )

    • Strip Monitoring
    • Circuit Monitoring
    • Outlet Monitoring
    • Outlet Switching
  • 208V / 110V


    See all
  • 230V


    See all

Slimmer. Smarter. Superior

Rack Power Management, like many areas of Information Technology Infrastructure has evolved in recent
years and the options available today enable better usability, energy efficiency, and capacity planning.
Austin Hughes has developed the new InfraPower 2000 series cutting-edge rack power solutions for your
IT environment, including a comprehensive range of single-phase to three-phase power distribution units
with a new design intelligent meter and lockable / combo IEC outlets.

  • 1-Phase Z & M iPDU - REMOTE ACCESS - High Availability

    REMOTE ACCESS - High Availability

    Z IP PDU model is embedded dual Gigabit ethernet LAN IP for redundant network access via IP and hence ensuring 100% iPDU uptime reporting. Enterprise-level IP authentication support e.g., Active Directory (AD), LDAPv3 / LADPS, RADIUS or local credential database.
  • 1-Phase Z & M iPDU - CONNECTION - Secure Auto Lock

    CONNECTION - Secure Auto Lock

    Patented IEC C13 & C19 outlets with slide lock mechanism design by Austin Hughes. Slide-lock C13 & C19 outlets connectable & lockable to C14 & C20 plugs respectively using generic IEC cables.
  • 1-Phase Z & M iPDU - CONNECTION - Combo IEC

    CONNECTION - Combo IEC

    Patented hybrid of IEC C13 & C19 outlet design by Austin Hughes. Slide-lock combo C13 / C19 outlet connectable & lockable to C14 / C20 plugs using generic IEC cables.
  • 1-Phase Z & M iPDU - Slim profile 0U chassis design

    Slim profile 0U chassis design

    For efficient rack mounting, InfraPower vertical PDU steel casing is designed with a slim profile starting from 56mm width and 55/68mm depth for a single IEC row.
  • 1-Phase Z & M iPDU - LINKING - Cost Saving Efficiency

    LINKING - Cost Saving Efficiency

    InfraPower intelligent PDUs provide daisy chain functionality. With the 1st level Z PDU with embedded IP, up to 32 daisy chain levels can be achieved. Z and W series 1-phase/ 3-phase PDUs can be inter-cascaded in a single daisy chain, up to 32 PDUs can be accessed via one single IP.
  • 1-Phase Z & M iPDU - METERING - Precise Intelligence

    METERING - Precise Intelligence

    Z IP meter provide real-time local & remote power management. The +/- 0.5% accuracy of the InfraPower PDU meter is vital for billing accuracy, energy efficiency,capacity planning and performance monitoring.
  • 1-Phase Z & M iPDU - Quality PDUs in Short Lead Time

    Quality PDUs in Short Lead Time

    Austin Hughes designs highly reliable Single Phase PDUs using an efficient production, assembly and inventory process. Every InfraPower Rack PDU unit is 100% tested before shipment. All these efforts allow us to deliver quality PDUs to customers in the shortest lead time.
  • 1-Phase Z & M iPDU - CONFIGURATION - Diversified & Customizable

    CONFIGURATION - Diversified & Customizable

    3-Phase 208V, 400V, 415V and more Volt inputs; Apart from the standard configurations, custom configuration available upon request

New Generation Z IP & M Serial Meters

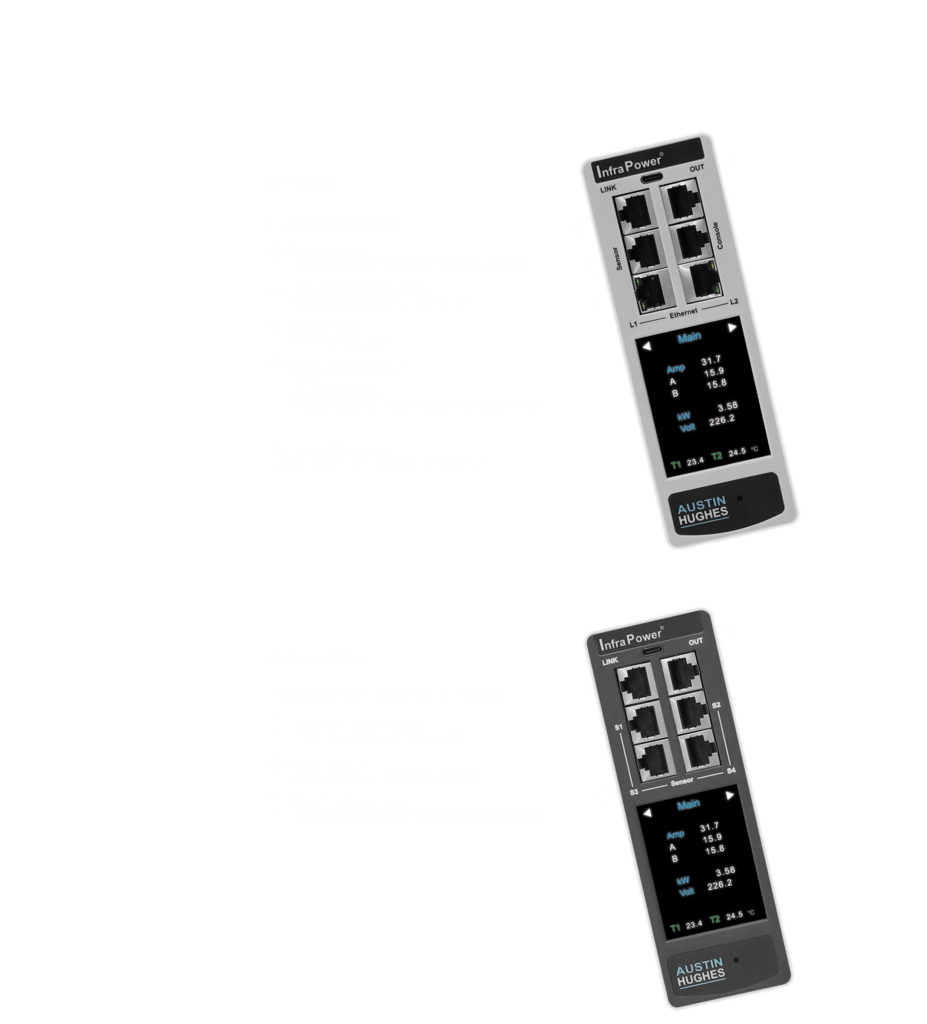

InfraPower® Z & M intelligent PDU series are supplied with new generation meters. The Z IP Meter not only provides local metering, but also embedded dual Gigabit ethernet LAN IP. Up to 32 levels of Z IP / M Serial iPDUs in daisy chain can be remotely accessed via one single network IP.

The 2.8″ color LCD with touchscreen provides a sharp and highly visible display of kWh, kW, Power Factor, Volt, Amp, Temperature and Humidity.

The meter is hot swappable and field replaceable without needing to power down the PDU or attached mission critical equipment.

Amp, kW, Volt - PDU Power Meter Screen - 1-Phase PDU
PDU Overview - PDU Power Meter Screen - 1-Phase PDU
Amperage & Peak Load Amp - Meter Screen - 1-Phase PDU
Power Factor, Active Power, Apparent Power, Frequency - PDU Power Meter Screen - 1-Phase PDU
Temperature & Humidity - PDU Power Meter Screen - 1-Phase PDU
System Overview - PDU Power Meter Screen - 1-Phase PDU

PDU IP Remote Managament

Z IP meter provides IP remote access to the PDUs by a true network IP address chain. Only one Z IP meter allows access to max. 32 smart PDUs in a single daisy chain – which is a highly efficient application for saving not only the IP remote accessories cost, but also the true IP addresses required on the PDU management. Simply connect the router to the first Z series IP PDU, then all the PDUs in entire daisy chain group can be remotely accessed over IP.

Z series IP PDU with embedded dual Gigabit Ethernet ports supports enterprise level IP authentication. For example, Active Directory (AD), Lightweight Directory Access Protocol (LDAPv3 / LDAPS), Remote Access Dial-In User Service (RADIUS) protocol, or local credential database.

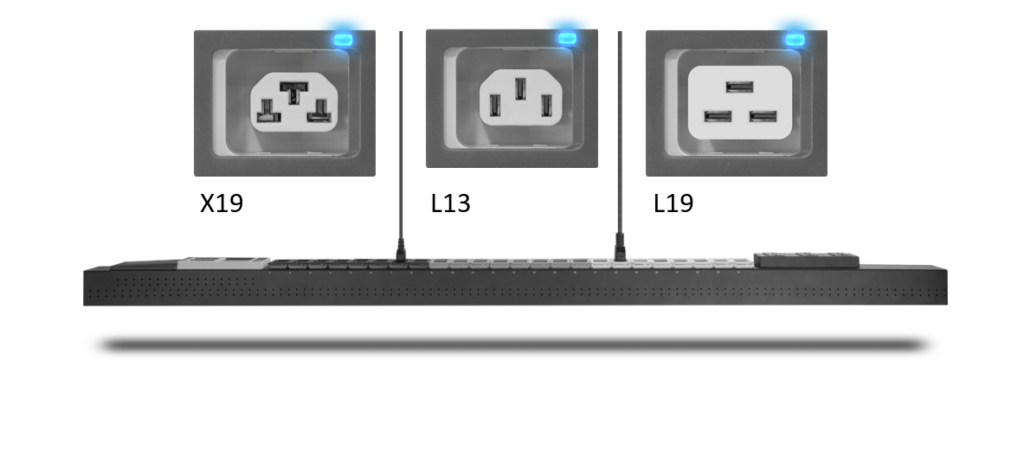

Patented Slide-Lock Outlets - C13, C19 & Combo C13/C19

X19 Slide-lock Combo C13 / C19 Outlet
•  Hybrid of IEC C13 & C19 outlet design by Austin Hughes
•   Built-in slide locking lever locks the C14/C20 plug after insertion
L13 Slide-lock C13 Outlet
•   Built-in slide locking lever locks the C14 plug after insertion
L19 Slide-lock C19 Outlet
•   Built-in slide locking lever locks the C20 plug after insertion
( Outlet LEDs available for Switched PDUs )

Alternative Outlets

US NEMA, UK BS1363, German Schuko, French, standard IEC C13 & C19 outlets are available for Z & M PDUs.

For project based custom requirements, specific outlets (e.g., Fused IEC, Australian, South African or International) are also available.

Color selection for slide lock outlet

Colored L13, L19 & X19 IEC outlets allow easy identification of rackmount equipment power paths, and facilitate power distribution management.

  •  Standard colors : Black & Grey ( 1-Phase )
  •  Standard colors : Black, Grey & White ( 3-Phase )
  •  Optional colors : Red, Blue & Green

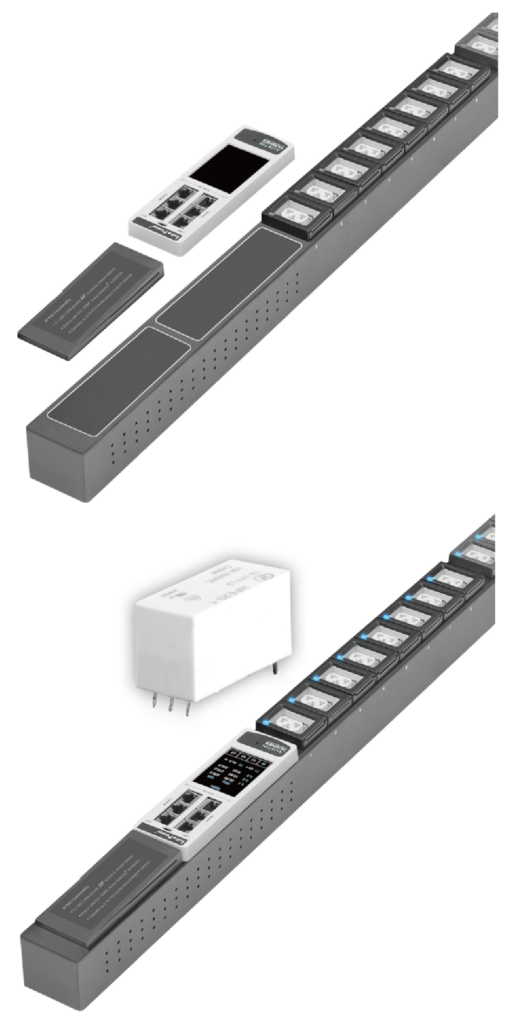

Field Replaceable Design & Latching Relay

Meter

A field replaceable RMS meter with 2.8″ color LCD display with touchscreen functionality. The hot swappable design helps eliminate maintenance downtime by simply replacing apossible defective meter without a service interruption.

DC Module

Given the mission critical nature of the environment the intelligent rack PDU is designed, built and manufactured to provide extremely high levels of resiliency. In addition to the hot swappable digital local touchscreen display, field replaceable DC power modules are used
within the intelligent PDU models to avoid unnecessary downtime

Latching Relay

Outlet LEDs are built-in for Switched PDU models with outlet switching functionality. Outlet switching is controlled via latching relays. Ensuring an ‘always on’ operational performance and outlet status returning to a pre-power outage after a planned or unplanned shutdown. Power consumption during normal or standard operationis low and therefore assists to reduce energy usage of the overall PDU.

PDU Remote Management Over IP

PDU remote management helps reducing manpower and hence improving uptime and productivity. It also benefits users with capacity planning and increasing the overall efficiency of the data center. InfraPower® Intelligent PDU offers 3 kinds of remote management solutions for users’ selection.

A web-based GUI is integrated with our Intelligent PDUs. It is ideal for some users who simply require the power monitoring and input switching over IP.

Nowadays, many data centers apply the DCIM ( Data Center Infrastructure Management ) in order to centralize the management for monitoring power, cooling and environmental factors across facilities and IT systems. InfraPower Intelligent PDUs support SNMP V2/V3 and REST API integration and hence user can remotely manage the PDU via their DCIM.

InfraPower® Manager IPM-04 is the free, powerful and user friendly PDU management software provided with W Series PDUs.

Administrators can remotely manage smart PDUs and the connected sensors via the web browser. The Windows based software consolidates management of max. 1600 1-Phase & 3-Phase PDUs via 50 Dual LAN IP dongles (IPD-03-S / IPD-H03-S). 5 concurrent user access licenses are part of the IPM-04 bundle, for achieving the demand of multi-user requirements in data center operations.

IPM-04 provides complete PDU monitoring / control and reporting functions for your data center.

IPM-04 Features

Sensors & Peripherals

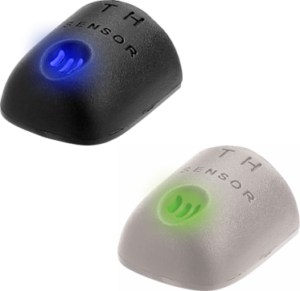

Temp. & Humid. Sensor or Temp. Sensor
Z-TH01-2M / 4M or Z-T01-2M / 4M

  • Plug & Play
  • External sensor with 2M or 4M cord
  • Low profile design with magnetic base for easy affixing to the rack

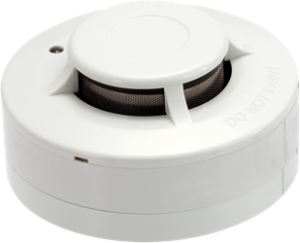

IP-S01-1M / 3M - Smoke Sensor with 1M / 3M cord

Smoke Sensor
Z-S01-1M / 3M

  • Smoke Sensor with 1M or 3M cord
  • When smoke alarm triggers, sensor red LED lights on with beep sound continuosly

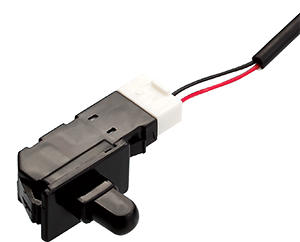

IP-DSW-2M / 4M - Mechanical Door Sensor with 2M / 4M cord

Door Sensor
Z-DSW-2M / 4M

  • Mechanical door sensor with 2M or 4M cord
  • Cost efficient integration into rack

Mounting Tools

VMS - Vertical Button Mounting

Vertical Button Mounting
VMS

  • Quick and Tool-less integration simplifies PDU installation
  • Designed for particular global branded cabinet with key hole type mounting holes on rear verticals
VMB - Vertical Bracket Mounting

Vertical Bracket Mounting
VMB

  • Universal mounting kit supports all cabinet models
  • Easy integration by mounting the PDU to the cabinet cable tray

Safety Devices

MCB - Magnetic Circuit Breaker

Magnetic Circuit Breaker
MCB

  • Hydraulic magnetic circuit breaker
  • Overload switch
  • Designed to prevent accidental on / off operation
  • Safety Regulatory : UL / cUL / TUV / CE
ELCB - Earth-leakage Circuit Breaker

Earth-leakage Circuit Breaker
ELCB

  • Earth-leakage circuit breaker
  • Safety component with high
  • Earth impedance to prevent shock
  • Interrupting the circuit if a dangerous voltage is detected
RCM - Residual Current Monitor

Residual Current Monitor
RCM

  • Residual current monitoring
  • Alerts users to current leaking from IT devices
  • Reduces the danger for both the user and IT system

Outlets

Individual Fused IEC Outlets - InfraPower PDU

Fused IEC Outlet

  • Prevent overload of the active equipment
  • Avoid short circuiting of the entire PDU
  • 10A Rated C13 outlet with 5A glass fuse
  • 16A Rated C19 outlet with 10A glass fuse

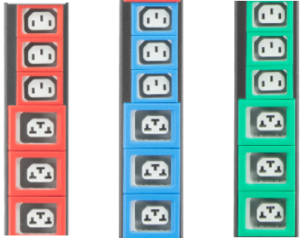

Colored IEC Outlet

  • Colored outlets help visualize the power connections of IT devices to facilitate power distribution management.

Standard colors (1-Phase) : Black & Grey
Standard colors (3-Phase) : Black, Grey & White
Optional colors : Red, Blue & Green

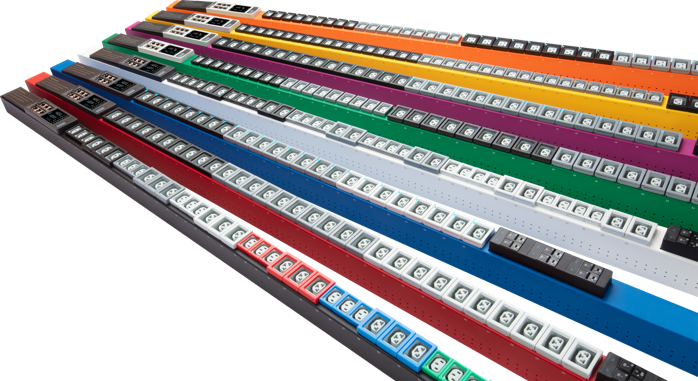

Colored PDU Chassis

  • Colored PDU chassis allow easy identification of power paths and simplifies management of power sources.
    Standard color : Black
    Optional color : Red, Blue, Green, Orange, Purple, Yellow, White
