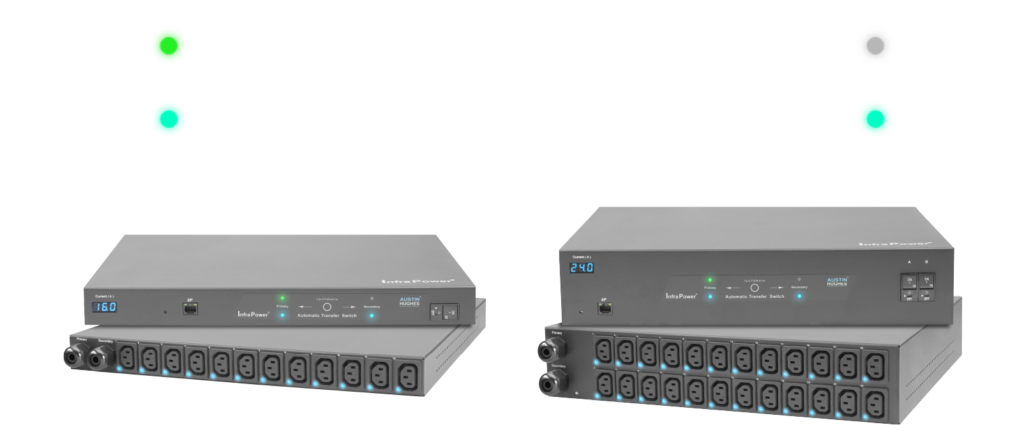

Intelligent ATS ( iATS ) allows user to switch power input over IP, and provides real time power monitoring and helps users with power capacity planning.
To meet the rapidly increased needs for iATS, Austin Hughes offers the B-series iATS at an affordable price.
B-series iATS with a local LED current meter can achieve the same remote ATS management level
( kWh, Amp, Volt) as W-series iATS.
No products were found
Try again different with a different selection, or reach out to us!
We don't have results matching your selection yet, but we may be able to find or build you the right product. In addition to our full range of integrated solutions, we offer cost effective OEM / ODM services to cater for new challenges and technologies rapidly emerging from customers’ applications in different industry sectors.
Contact Sales OEM / ODM InquiryB-series Intelligent Automatic Transfer Switch (iATS)
Intelligent ATS ( iATS ) allows user to switch power input over IP, and provides real time power monitoring and helps users with power capacity planning.
To meet the rapidly increased needs for iATS, Austin Hughes offers the B-series iATS at an affordable price.
B-series iATS with a local LED current meter can achieve the same remote ATS management level
( kWh, Amp, Volt) as W-series iATS.
60309
Open end
C20
UK
C14
Key Benefits
-
Local power input switching is essential, especially for conducting maintenance in the data center. Alternatively, InfraPower® intelligent ATS enables users to switch power input over IP, saving manpower and providing a prompt way to switch power input. -
Most data centers provide power source redundancy in order to ensure that critical devices have no power downtime issue. Some rackmount IT devices, however, are not designed with power redundancy. For single-corded devices, InfraPower® intelligent ATS is a perfect fit to provide power fallback. It includes dual power inlets, for connection to both a primary power source and a redundant, secondary power source. -
InfraPower® intelligent ATS offers a simple but reliable solution for automatically sensing power loss and seamlessly switching to a secondary power source. The power source transfer time is seamless to the connected equipment, making sure that the switching occurs safely between the two input power sources. After switching to a backup power source, it can also switch power back to the primary input after power has been restored. -
InfraPower® intelligent ATS provides a real time monitoring on Amp, Volt and kWh. Hence, it helps users with capacity planning and improving the overall power efficiency of the data center. -
To provide price-competitive iATS to the market, Austin Hughes designed B series iATS. Its LED meter only display the ampere figure. Nevertheless, same as W series iATS, the users can monitor the kWh, voltage and current status over management software GUI or SNMP. -
The leading edge ATS solution provides the widest range of configurations with shortest lead-times in the market : It offers 110V / 208V / 230V models with input range from 10A to 32A, outlet number from 1 to 24 and variety of outlet types ( e.g. NEMA, C13, C19, UK, Schuko, French, etc ). Custom configurations are available upon request.

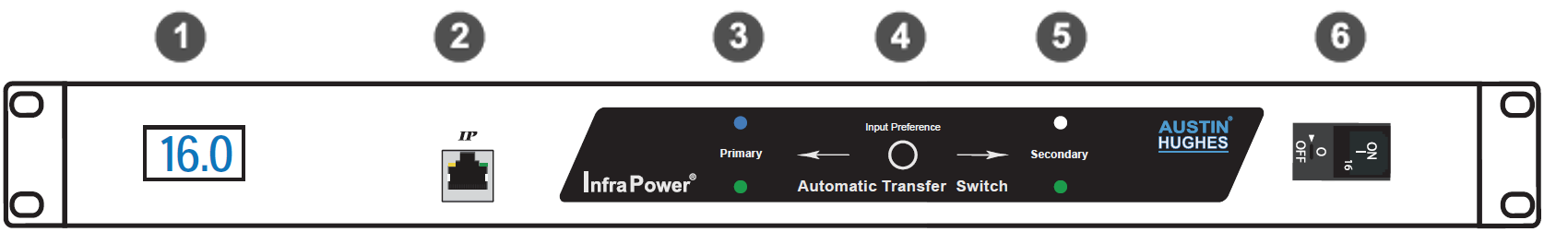

Hardware
- 3-digit LED meter display for current only
- IP Port
- Power LED – primary input
- Input preference switch
- Power LED – secondary input
- Hydraulic MCB
Redundant Power
Automatic Transfer Switches (ATS) provide fail-safe power redundancy. A rack ATS has dual input power cords supplying power to the connected load. If the primary power source becomes unavailable, the rack ATS will seamlessly source power from the
secondary source without interrupting critical loads.
Remote Management Over IP
ATS remote management helps reducing manpower and hence improving uptime and productivity. It also benefits users with capacity planning and increasing the overall efficiency of the data center.
InfraPower intelligent ATS offers 3 kinds of remote management solutions for users’ selection.
Integrated Web-based Management Software (GUI)
A web-based GUI is integrated with our intelligent ATS. It is ideal for some users who simply require the power monitoring and input switching over IP.
Nowadays, many data centers apply the DCIM ( Data Center Infrastructure Management ) in order to centralize the management for monitoring power, cooling and environmental factors across facilities and IT systems. InfraPower Intelligent IP PDUs or PDU Dongle are natively compatible with DCIM or some other 3rd party management systems. Protocols include SNMP V2 V3, Web GUI, Modbus/TCP, RestAPI, etc.
Free ATS Management Software (IPM-04)
IPM-04 is a free, powerful and user friendly management software provided with intelligent ATS. The Administrator can remotely manage the ATS via web browsers. It provides power input switching, ATS monitoring, alarm and reporting functions. The Windows based software consolidates management of max. 50 ATSs. Up to 5 concurrent user access is bundled in order to achieve the demand of multi-user requirements in data center operations.
