Most data centers provide power source redundancy in order to ensure critical devices have no power related downtime. Many rackmount IT devices, however, are not designed to take advantage of power redundancy. For single-corded devices, ATS is a perfect fit to provide power failover. Intelligent ATS ( iATS ) also allows user to switch power input over IP, and provides real time power monitoring and helps users with power capacity planning.
Intelligent Automatic Transfer Switch (iATS)
Most data centers provide power source redundancy in order to ensure critical devices have no power related downtime. Many rackmount IT devices, however, are not designed to take advantage of power redundancy. For single-corded devices, ATS is a perfect fit to provide power failover. Intelligent ATS ( iATS ) also allows user to switch power input over IP, and provides real time power monitoring and helps users with power capacity planning.
60309
Open end
C20
UK
C14
Key Benefits
-
Local power input switching is essential, especially for conducting maintenance in the data center. Alternatively, InfraPower® intelligent ATS enables users to switch power input over IP, saving manpower and providing a prompt way to switch power input. -
Most data centers provide power source redundancy in order to ensure that critical devices have no power downtime issue. Some rackmount IT devices, however, are not designed with power redundancy. For single-corded devices, InfraPower® intelligent ATS is a perfect fit to provide power fallback. It includes dual power inlets, for connection to both a primary power source and a redundant, secondary power source. -
InfraPower® intelligent ATS offers a simple but reliable solution for automatically sensing power loss and seamlessly switching to a secondary power source. The power source transfer time is seamless to the connected equipment, making sure that the switching occurs safely between the two input power sources. After switching to a backup power source, it can also switch power back to the primary input after power has been restored. -
InfraPower® intelligent ATS provides a real time monitoring on Amp, Volt and kWh. Hence, it helps users with capacity planning and improving the overall power efficiency of the data center. -

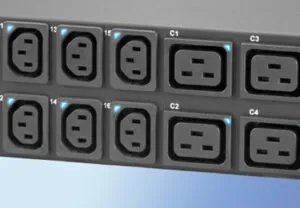

Both WS & WSi ATS series allow outlet switching on / off remotely over network IP, whilst WSi provides outlet monitoring features. -
The leading edge ATS solution provides the widest range of configurations with shortest lead-times in the market : It offers 110V / 208V / 230V models with input range from 10A to 32A, outlet number from 1 to 24 and variety of outlet types ( e.g. NEMA, C13, C19, UK, Schuko, French, etc ). Custom configurations are available upon request.

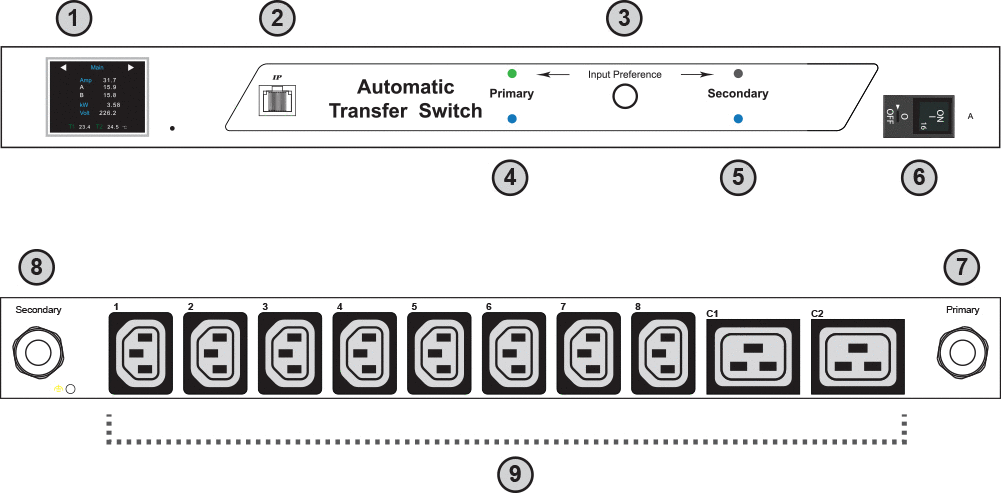

Hardware
- 1.8″ color LCD
- IP Port
- Input Preference Switch
- Power LED – primary input
- Power LED – secondary input
- Circuit Breaker
- Primary Input attached with 3M cord & inlet plug
- Secondary Input attached with 3M cord & inlet plug
- Outlets
Redundant Power
Automatic Transfer Switches (ATS) provide fail-safe power redundancy. A rack ATS has dual input power cords supplying power to the connected load. If the primary power source becomes unavailable, the rack ATS will seamlessly source power from the
secondary source without interrupting critical loads.
Remote Management Over IP
ATS remote management helps reducing manpower and hence improving uptime and productivity. It also benefits users with capacity planning and increasing the overall efficiency of the data center.
InfraPower intelligent ATS offers 3 kinds of remote management solutions for users’ selection.

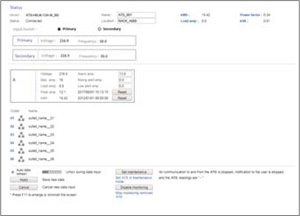

Integrated Web-based Management Software (GUI)

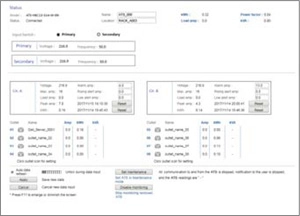

A web-based GUI is integrated with our intelligent ATS. It is ideal for some users who simply require the power monitoring and input switching over IP.
Control Through 3rd Party DCIM via SNMP
Nowadays, many data centers apply the DCIM ( Data Center Infrastructure Management ) in order to centralize the management for monitoring power, cooling and environmental factors across facilities and IT systems. InfraPower intelligent ATS supports SNMP integration and hence user can remotely manage the ATS via theirs DCIM.
Free ATS Management Software (IPM-04)

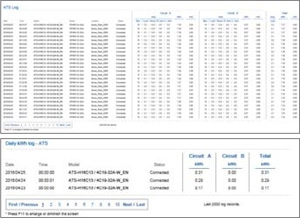

IPM-04 is a free, powerful and user friendly management software provided with intelligent ATS. The Administrator can remotely manage the ATS via web browsers. It provides power input switching, ATS monitoring, alarm and reporting functions. The Windows based software consolidates management of max. 50 ATSs. Up to 5 concurrent user access is bundled in order to achieve the demand of multi-user requirements in data center operations.
Accessories
Magnetic Circuit Breaker
MCB
- Overload reset button (Fuse) or switch (MCB)
- Safety Regulatory : UL / cUL / CSA / TUV / CCC / VDE
- 110V / 208V : 15A, 20A & 30A
- 230V : 10A, 13A, 16A, 20A & 32A
Mounting Bracket with Cord Retention Tray
Free
- 19″ rack mount kit for ATS
- Cord retention tray for cabling management
- Easy installation
Lockable IEC Outlet
- Lockable IEC outlet ATS models are available to secure plugs and prevent accidental disconnection
- Support regular or switched IEC outlets
- Compatible with our lockable IEC power cords for outlet locking features
- Patented design for our ATS
Power Cords
Lockable IEC Colored Power cords
- Patented design
- Proprietary for InfraPower ATS & PDU
- Applicable to standard IEC outlet in the market
- VDE & ENEC approvals
- Quality & cost effective
- Easy to lock & secure
- 6-colors : Black / Grey / Red / Blue / Orange / Green
- C13-C14 (0.75mm²) : 0.5M / 1M / 2M
- C19-C20 (1.5mm²) : 1M / 2M
Colored UK Power Cord
- Enhance cable management and visualize power sources
Selection:
Blue / Red
UK – C13 (0.75 mm²): 3ft / 6ft
