3-Phase Intelligent PDU

208V / 400V

W Series 3-Phase Intelligent PDUs are rack Power Distribution Units (PDUs) with digital local touchscreen display and IP network connectivity. These PDUs support daisy chain connections allowing multiple PDUs to be cascaded together via Cat6 cables. All the PDUs can be remotely accessed and controlled via only one network IP address. The free management software provides easy-to-learn tools for the remote management of a huge amount of PDUs anywhere around the world.

4 Intelligent PDU Series

W Series 3-Phase Intelligent PDUs are rack Power Distribution Units (PDUs) with digital local touchscreen display and IP network connectivity. These PDUs support daisy chain connections allowing multiple PDUs to be cascaded together via Cat6 cables. All the PDUs can be remotely accessed and controlled via only one network IP address. The free management software provides easy-to-learn tools for the remote management of a huge amount of PDUs anywhere around the world.

Play Video

Wi PDU Series

  • Circuit Monitoring
  • Outlet Monitoring

WS PDU Series

  • Circuit Monitoring
  • Outlet Switching

WSi PDU Series

  • Circuit Monitoring
  • Outlet Monitoring
  • Outlet Switching

208V

Certified for TUV, cUL, FCC
See all

400V

Certified for CE
See all

Key Features

High power density has been implemented in applications such as high-end network switches, storage systems and supercomputing. The expansion of centralized computing causes the rack power density to steadily rise in these years. As a result, the demand of Three Phase PDUs with higher power ratings is increasing in data center field.

Broadest Portfolio of Intelligent PDU

An extensive array of Intelligent Rack PDUs are available from stock with Custom rack PDU configurations to suit your exact requirements available at competitive prices and on short lead times. Austin Hughes build to order system enables us to produce and deliver quality solutions for your project.

Quality PDUs in Short Lead Time

Austin Hughes designs highly reliable 3-Phase PDUs using an efficient production, assembly and inventory process. Every InfraPower PDU unit is 100% tested before shipment. All these efforts allow us to deliver quality PDUs to customers in the shortest lead time.

Certificate Approval

Our dedicated PDU compliance team ensures conformance to safety and reliability standards in US, EMEA, APAC & ASEAN.
InfraPower PDU Management Software

Free Management Software

The Free IPM-04 Windows based management software consolidates management of max. 800 1-Phase & 3-Phase PDUs via 50 IP dongles. 5 concurrent user access licences are part of the IPM-04 bundle, for achieving the demand of multi-user requirements in data center operations.
PDU Metering - High Metering Accuracy

High Metering Accuracy

InfraPower Intelligent PDUs provide real-time local & remote power monitoring with +/- 1% billing-grade accuracy. With reliable metering accuracy, data centers can produce industry grade billing for their co-location clients or for inter-departmental charging.

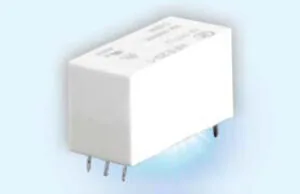

Power Saving by Latching Relays

InfraPower WSi / WS switched PDUs apply Latching Relays which consume very low power during outlet switched on. That highly saves the power required for internal hardware usage.
Lockable IEC Outlets & Cables

Locking IEC Outlets & Power Cords with Color Options

Austin Hughes designs the advanced C13 & C19 outlets which are ready for using with our color lockable cables ( blue/ red/ green/ orange/ black/ white, 0.5M, 1M & 2M).

PDU Panel & Environmental Sensors

InfraPower PDU provides the most popular sensor selection form Temperature & Humidity, to Airflow Sensors, & Door Sensors. We also offers the industry First External PDU Panel 4.3″ Color Touch to display power, temperature, humidity and airflow status.

Sophisticated W Meter with 2.8” LCD touchscreen

InfraPower® intelligent PDUs are supplied with a sophisticated meter. The W meter provides not only local metering, but also daisy chain connection ports to connect up to 16 PDUs and 2 optional external sensors.

The 2.8” color LCD with touchscreen provides a sharp and highly visible display of kWh, kW, Power Factor, Volt, Amp, Temperature and Humidity. Apart from monitoring, W meter provides the cascade ports for daisy chain up to 16 x PDUs. For PDU IP access, simply connect one PDU IP Dongle for all daisy chain PDUs. This allows use of a single IP address throughout the power network.

The meter is hot swappable and field replaceable without needing to power down the PDU or attached mission critical equipment.

3-Phase PDU Meter Diagram

Meter Reading & Setting

Amp, Volt, Temperature - PDU Power Meter Screen - 3-Phase PDU
Amperage & Peak Load Amp - Meter Screen - 3-Phase PDU
Power Factor, Active Power, Apparent Power, Frequency - PDU Power Meter Screen - 3-Phase PDU
Outlet Amp & kW - PDU Power Meter Screen - 3-Phase PDU
Temperature & Humidity - PDU Power Meter Screen - 3-Phase PDU
PDU System Overview - Power Meter Screen - 3-Phase PDU

PDU IP Dongle

With any rack mount device or in-cabinet PDU, one of the largest challenges is to integrate the device into the data centre environment without simply building up additional connectivity, cable run, patch panel etc. or network related costs.

Patented PDU IP Dongle provides IP remote access to the PDUs by a true network IP address chain. Only one PDU IP Dongle allows access to all PDUs in a single daisy chain – which is a highly efficient application for saving not only the IP remote accessories cost, but also the true IP addresses required on the PDU management.

InfraPower IP Dongle IPD-02-S

IPD-02-S  PDU IP Dongle

Up to 16 levels in daisy chain

Hot-Pluggable design facilitates the IP Dongle installation. Simply integrate the PDU IP Dongle to the first PDU, then the entire daisy chain group can be remote over IP.

The new stylish Dual Lan PDU IP Dongle provides standard 10/100 & Gigabit Ethernet ports. The PDUs in daisy chain can be accessed via two separate networks and hence the PDU connection can be secured by dual LAN network. Apart from wired connection, WIFI connection is also available by optional USB port.

Dual Lan IP Dongle

IPD-03-S  PDU IP Dongle – Dual LAN

Up to 32 levels in daisy chain

Daisy Chain Cascades up to 16 / 32 Levels

InfraPower® rack intelligent PDUs provide connection ports for PDU daisy chain. To daisy chain units, each PDU can simply be connected in series to the next by Cat5/6 cables. Standard PDU IP Dongle (IPD-02-S) supports up to 16 PDUs in one daisy chain group. With the new Dual Lan PDU IP Dongle (IPD-03-S), up to 32 daisy chain levels can be achieved.

PDU IP Dongle Cascade Connection Diagram

High Efficiency PDU Remote Management

Patented PDU IP Dongle provides IP remote access to the PDUs by a true network IP address chain. Only one network IP is required for maximum 16 / 32 PDUs in a single daisy chain. InfraPower® offers 3 kinds of remote management solutions for users’ selection. Management Software IPM-04, Web-based GUI, or 3rd Party DCIM via SNMP. The free but comprehensive IPM-04 supports up to 50 IP groups. Hence, max 800 / 1600 PDUs can be remotely managed from anywhere.

High Efficiency PDU Remote Management Diagram

PDU Remote Management Over IP

PDU remote management helps reducing manpower and hence improving uptime and productivity. It also benefits users with capacity planning and increasing the overall efficiency of the data center. InfraPower® intelligent PDU offers 3 kinds of remote management solutions for users’ selection.

Integrated Web-based Management Software (GUI)

A web-based GUI is integrated with our intelligent PDU. It is ideal for some users who simply require the power monitoring and input switching over IP.

Control Through 3rd Party DCIM via SNMP

Nowadays, many data centers apply the DCIM ( Data Center Infrastructure Management ) in order to centralize the management for monitoring power, cooling and environmental factors across facilities and IT systems. InfraPower intelligent PDU supports SNMP integration and hence user can remotely manage the PDU via their DCIM.

Free PDU Management Software (IPM-04)

InfraPower® Manager IPM-04 is the free, powerful and user friendly PDU management software provided with W Series PDUs.

The Administrator can remotely manage the PDUs and the sensors via the web browser. The Windows based software consolidates management of max. 1600 1-Phase & 3-Phase PDUs via 50 Dual LAN IP dongles (IPD-03-S), or max. 800 PDUs via 50 standard IP dongles (IPD-02-S). 5 concurrent user access licenses are part of the IPM-04 bundle, for achieving the demand of multi-user requirements in data center operations.

IPM-04 provides complete PDU monitoring / control and reporting functions for your data center.

IPM-04 Features

Accessories & Options

IP Access & Cascade Devices

InfraPower IP Dongle IPD-02-S

IP Dongle
IPD-02-S

  • US & wordwide patents
  • All IP remote access
  • Supports up to 16 daisy chained PDUs
  • IP remote access via free management software IPM-04, web GUI & SNMP V2 / V3
  • Detachable design
Dual Lan IP Dongle

Dual Lan IP Dongle
IPD-03-S

  • US & wordwide patents
  • Dual LAN Network Failover
  • Auto-negotiable 10/100 BaseT Ethernet & Gigabit Ethernet standard
  • Enterprise IP Authentication & Remote Management Protocols
  • Supports up to 32 daisy chained PDUs
  • Simultaneous multiple access via free management software IPM-04, web GUI & SNMP V2 / V3
  • USB Wifi Port for connection to Wifi kit ( IPD-WIFI ) with standards 802.11 g/n/ac
  • Detachable design

Sensors & Peripherals

4.3" External PDU Panel

4.3" Door Mount Display Panel
IP-ED-01

  • 2 x InfraPower PDU Connection
  • Supports 1-Phase & 3-Phase PDUs
  • Displays power, temp., humid., smoke or door sensor status
  • Alarm & log
  • Viewable while doors in closed position
  • Resistive touchscreen
  • Panel resolution 480 x 272
  • Horizontal or vertical display option
  • Easily affix to doors by magnetic rear
  • No cut-out / damage required to doors
  • Upgrade standard third party racks to smart and stylish look
  • Plug & Play
Austin Hughes Temperature & Humidity Sensor

Temp. & Humid. Sensor or Temp. Sensor
IG-TH01-2M/4M or IG-T01-2M/4M

  • Plug & Play
  • External sensor with 2M or 4M cord
  • Low profile design with magnetic base for easy affixing to the rack
Smoke Sensor

Smoke Sensor
IP-S01-1M/3M

  • Smoke Sensor with 1M or 3M cord
  • When smoke alarm triggers, sensor red LED lights on with beep sound continuously
Austin Hughes Door Sensor

Door Sensor
IP-DSW-2M/4M

  • Mechanical door sensor with 2M or 4M cord
  • Cost efficient integration into rack

Mounting Tools

InfraPower PDU Vertical Tool-less Button Mounting Kit Diagram

Vertical Button Mounting
VMS

  • Quick and Tool-less integration simplifies PDU installation
  • Designed for particular global branded cabinet with key hole type mounting holes on rear verticals
InfraPower PDU Vertical Bracket Mounting Kit Diagram

Vertical Bracket Mounting
VMB

  • Universal mounting kit supports all cabinet models
  • Easy integration by mounting the PDU to the cabinet cable tray

Safety Devices

Magnetic Circuit Breaker (MCB) - InfraPower PDU

Magnetic Circuit Breaker
MCB

  • Hydraulic magnetic circuit breaker
  • Overload switch
  • Designed to prevent accidental on / off operation
  • Safety Regulatory : UL / cUL / TUV / CE
Earth-leakage Circuit Breaker (ELCB) - InfraPower PDU

Earth-leakage Circuit Breaker
ELCB

  • Earth-leakage circuit breaker
  • Safety component with high
  • Earth impedance to prevent shock
  • Interrupting the circuit if a dangerous voltage is detected
Residual Current Monitoring (RCM) - InfraPower PDU

Residual Current Monitor
RCM

  • Residual current monitoring
  • Alerts users to current leaking from IT devices
  • Reduces the danger for both the user and IT system

Outlets

Lockable IEC Outlets - InfraPower PDU

Lockable IEC Outlet

  • Lockable IEC outlet PDU models are available to secure plugs and prevent accidental disconnection
  • Support regular or switched IEC outlets
  • Compatible with InfraPower lockable IEC power cords for outlet locking features
Individual Fused IEC Outlets - InfraPower PDU

Fused IEC Outlet

  • Prevent overload of the active equipment
  • Avoid short circuiting of the entire PDU
  • 10A Rated C13 outlet with 5A glass fuse
  • 16A Rated C19 outlet with 10A glass fuse
Colored Outlet - InfraPower PDU

Colored IEC Outlet

  • Colored C13 & C19 outlets help visualize the power connections of IT devices to facilitate power distribution management
    Standard color : Black
    Optional color : Red, Blue, White
    * Optional colored outlets for W & Wi only

Power Cords

Lockable Color Power Cords & Outlets - InfraPower PDU

Lockable IEC Colored Power Cords

  • Patented design
  • Proprietary for InfraPower PDU
  • Applicable to standard IEC outlet in the market
  • VDE & ENEC approvals
  • Quality & cost effective
  • Easy to lock & secure
  • 6-colors : Black / Grey / Red / Blue / Orange / Green
  • C13-C14 (0.75mm²) : 0.5M / 1M / 2M
  • C19-C20 (1.5mm²) : 1M / 2M

Colored PDU Chassis

Colored PDU Chassis - InfraPower PDU
  • Colored PDU chassis allow easy identification of power paths and simplifies management of power sources.
    Standard color : Black
    Optional color : Red, Blue, Green, Orange, Purple, Yellow, White
