K123, 1U 23″ 4K LCD Console Drawer

The CyberView K123 rack console features a 23″ 4K LCD capable of up to 4K UHD (3840 x 2160) @60Hz video.

Compare

Benefits

  • 1U 23" 4K LCD console drawer
  • 3840 x 2160 @60Hz native resolution / 1.07B colors ( 10-bit )
  • 1920 x 1080 & 1920 x 1200 resolution support
  • Display port 1.2 video input / USB KB/MS
  • 104-key keyboard with either touchpad or trackball
  • Built-in dual stereo speakers
  • One Man installation design
  • Enhanced aesthetics with 2-point lock
  • 2-year standard warranty ( upgradable up to 5 years )

Options

Design

Featuring a large 23″ 4K LCD display and notepad keyboard with touchpad or trackball, the CyberView K123 is the leading Rack Console solution for data centers & other IT environments. Enhance your rack by integrating a monitor, keyboard, mouse, and KVM Switch with this state-of-the-art, modular rack console drawer.

Get Info
  • K123 - 23" Monitor

    23" Monitor

    The K123 feature a 4K display that support up to 3840 x 2160 @60Hz native resolution / 1.07B colors ( 10-bit ).

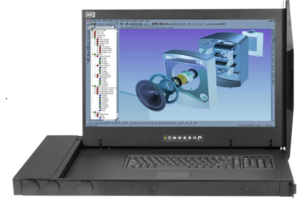

  • K123 - Side-Open Design

    Side-Open Design

    Models with left or right side open mechanism available for your installation environment
  • K123 - 1U Rack Mount

    1U Rack Mount

    The K123 mounts into only 1U of standard 19" Rack Mount Space. Control your datacenter from only 1U.
  • K123 - Enhanced aesthetics with 2-point lock

    Enhanced aesthetics with 2-point lock

    1U slim design with molded front handle
  • K123 - LED Touch OSD

    LED Touch OSD

    The LED touch On-Screen-Display provides a convenient way to control device settings & switch between sources.
  • K123 - Display Port + USB Standard Input

    Display Port + USB Standard Input

    Modular design supports integrated 4K 60Hz KVM option for your applications.

Integrated KVM Options

Integrated 4K 60Hz KVM Switch

K123 is available as a stand-alone console, or with an optional 8-Port Austin Hughes CyberView 4K KVM Switch (PN K123-801K). The KVM mounts into the rear of the 1U chassis and allows an administrator to control up to eight servers from one keyboard, mouse and monitor setup.

These new state-of-art devices support switching between multiple HDMI, DVI, DisplayPort enabled servers with resolutions up to 4K 60Hz. Mix and match operating systems with this multi-platform KVM to control PC.

4K KVM integrated into 1U Rack Console

K123 Specifications

SKU K123
Brand

CyberView

Categories

, ,

Form Factor

1U Rack Mount, Side Mount

Screen Size

23 Inch

Display Resolution

4K UHD (3840 x 2160) @60Hz

Display Brightness

310 cd/m²

Mouse

Touchpad, Trackball

Features
Integrated KVM Switch Options,
Large LCD,
Side Mount (Left Open / Right Open Models),
Dual Stereo Speakers
MTBF

30,000 Hours

Compliance

CE, UKCA, FCC, REACH, RoHS3, WEEE

Support & Downloads

Technical Support

WE ARE HERE TO HELP! Please contact our experts for technical assistance.

Have Any Questions?

    Accept Cookies To Send This Form

    Ordering

    Package Icon

    Package Contents

    • (1) K123 Console Drawer
    • (1) Attached 6ft DP cable
    • (2) USB cable
    • (1) Power cord
    • (8) M6 screw, cage nut & cup washer
    • (1) 2-Year standard warranty upgradable up to 5 years
