W19, Professional and Versatile 19″ Widescreen LED Monitor

The UltraView W19 is a 19″ high-quality LED monitor with support for Widescreen ( 1440 x 900 ) resolution. W19 offers versatile options to fit into any application!

Play Video Where to buy

Benefits

  • 1440 x 900 native resolution
  • 16.7 M colors
  • PIP Sub-screen & PBP Dual-screen viewing efficiency
  • DVI-D + VGA video input
  • Rugged structure ensures high mobility
  • IP65 front protection ( NAP series )
  • Professional-use durability & around-the-clock operation
  • 2-year standard warranty ( upgradable up to 5 years )
  • Dark aluminum chassis color

Options

  • DC power
  • Touchscreen
  • IP65 front protection
  • Custom chassis & mounting
  • High Brightness panel
  • Embedded Brightness Dimming Module
  • HDMI decoder & extender
  • Embedded 3G / HD / SD-SDI Input Module

Design

W19"

UltraView W19 series 19" widescreen LED monitor supports 1440 x 900 resolution. 16.7 million colors achieve optimal picture quality. Improved energy efficiency and fan-less architecture provides professional-use durability and around-the-clock operation.

W19 is more than just a standalone monitor. UltraView has a variety of embedded modulesincluding HDMI Decoder, HDMI Extender, HDMI Quad display Extender, Multi-Monitor OSD Controller and SDI Input. The embedded modules give you the ability of video remote management and transmission for multiple monitors over network.

As a versatile 1440 x 900 monitor, W19 is meticulously designed to meet professional and environmental demands including Sunlight readable brightness, IP54 Front protection, Multi-touch, Anti-reflective/Vandal proof glass, DC power input, Brightness dimming and Mounting kit for Panelmount, VESA-mount, Universal-mount and Desktop stand.

With over 22 years’ production experience, the W19 structure is well-engineered and manufactured by our own CNC facilities and team of experts to ensure its ruggedness, mobility and quality, as well as being suitable for harsh environment applications. The structure can be customized if required to facilitate monitor installation. Our knowledgeable engineers are able to provide frame customization for specific dimensions, color, metal treatment, screen printing, bezel and mounting.

Models

Standard Brightness (250 cd/m²)

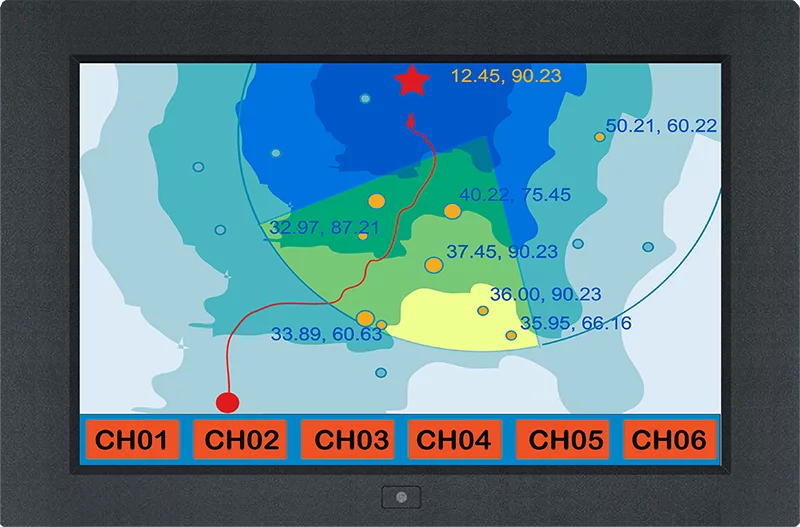

AP-W19 6mm aluminum front bezel

AP-W19

6mm aluminum front bezel

NAP-W19 6mm aluminum front bezel <br>+ NEMA 4 / IP65 front protection
NEMA 4 / IP65 front protection

NAP-W19

6mm aluminum front bezel
+ NEMA 4 / IP65 front protection

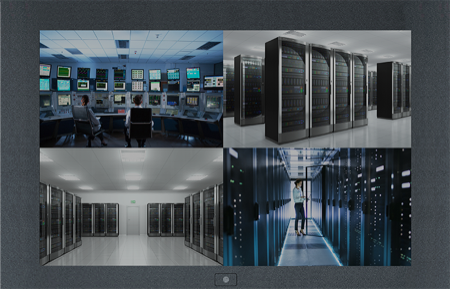

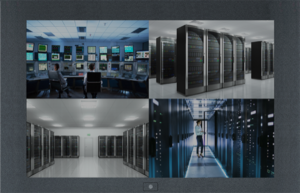

DP-W19 Aluminum front cover

DP-W19

Aluminum front cover

OP-W19 Universal open frame

OP-W19

Universal open frame

MP-W19

Industrial Display Kit

  • Widescreen 19_ LED
  • LCD controller
  • AC power

Sunlight Readable Brightness (1,000 cd/m²)

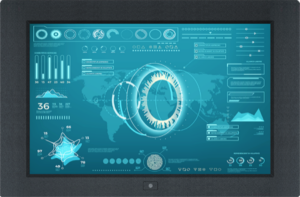

HAP-W19 6mm aluminum front bezel
Sunlight Readable Brightness

HAP-W19

6mm aluminum front bezel

HNAP-W19 6mm aluminum front bezel <br>+ NEMA 4 / IP65 front protection
Sunlight Readable Brightness
NEMA 4 / IP65 front protection

HNAP-W19

6mm aluminum front bezel
+ NEMA 4 / IP65 front protection

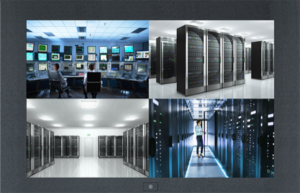

HDP-W19 Aluminum front cover
Sunlight Readable Brightness

HDP-W19

Aluminum front cover

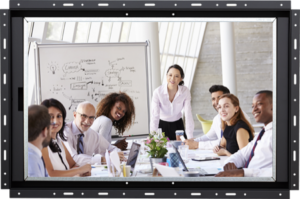

HOP-W19 Universal open frame
Sunlight Readable Brightness

HOP-W19

Universal open frame

W19 Specifications

Brand

UltraView

Screen Size

19 Inch

Display Resolution

1440 x 900

Display Brightness

1,000 cd/m² / 250 cd/m²

MTBF

30,000 Hours

Compliance

CE, FCC, REACH, ROHS2

Support

Technical Support

WE ARE HERE TO HELP! Please contact our experts for technical assistance.

Have Any Questions?

Ordering

Package Icon

Package Contents

  • (1) 19" Widescreen LED Monitor
  • (1) 6ft VGA cable
  • (1) Power adapter & Power cord
  • (1) 2-Year standard warranty upgradable up to 5 years
