VGA KVM Switch

CyberView

CyberView VGA KVM Switches are a low cost but highly reliable KVM Switching solution. This KVM supports single-user access to sources from up to 3 consoles: 1x Local, 1x Over-IP (from browser or VNC client), and 1x Extended via and integrated CAT6 KVM Extender. CyberView VGA KVMs supports multiple input styles and multiple platforms. Multi lingual OSD menu, port switching via OSD, front button & keyboard hotkeys are the user-friendly features provided by the KVM.

No products were found

Try again different with a different selection, or reach out to us!

We don't have results matching your selection yet, but we may be able to find or build you the right product. In addition to our full range of integrated solutions, we offer cost effective OEM / ODM services to cater for new challenges and technologies rapidly emerging from customers’ applications in different industry sectors.

Contact Sales OEM / ODM Inquiry

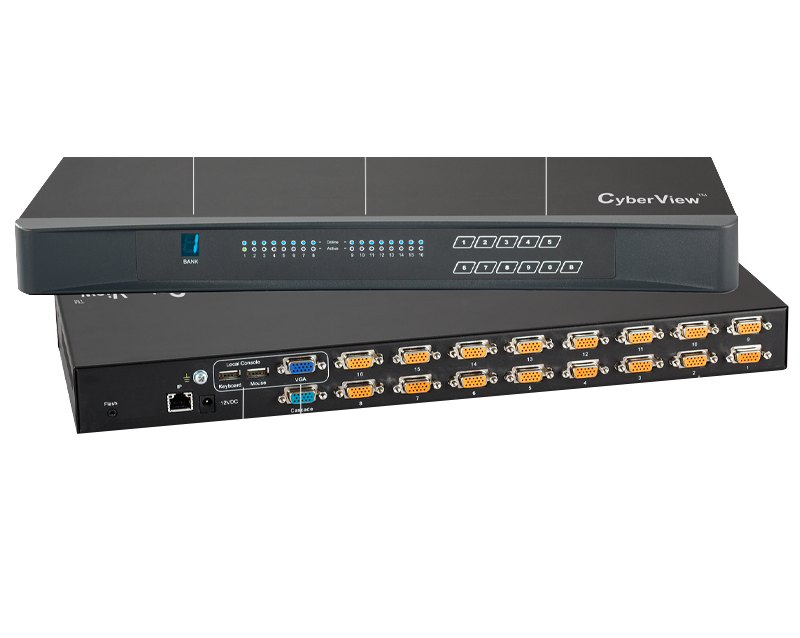

VGA DB-15 KVM Switch

CyberView VGA KVM Switches are a low cost but highly reliable KVM Switching solution. This KVM supports single-user access to sources from up to 3 consoles: 1x Local, 1x Over-IP (from browser or VNC client), and 1x Extended via and integrated CAT6 KVM Extender. CyberView VGA KVMs supports multiple input styles and multiple platforms. Multi lingual OSD menu, port switching via OSD, front button & keyboard hotkeys are the user-friendly features provided by the KVM.

Standalone VGA KVM Switch

Stand-alone

Control KVM from a local console
Integrated KVM Switch in 1U Rack Console Drawer

Integrated

Integrate into an Rack Console Drawer

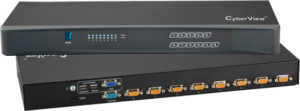

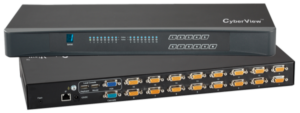

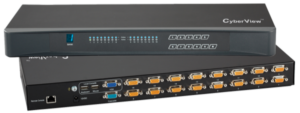

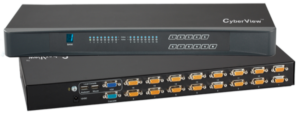

VGA KVM Models

Single-User Access from Local, Extended & IP consoles
More details

Key Features

High Definition

Support resolution up to 1920 x 1200

CyberView VGA (DB-15) KVM Switches support uncompressed pixel-perfect digital video at resolutions up to 1920 x 1200 / 1080p (1920 x 1080) @ 60hz.

Highly Reliable, Low-Cost, KVM Solution

CyberView KVMs designed for cost efficient and reliable server management in a data center. Customers can meet end to end equipment and management requirements using CyberView whilst meeting budget and application demands.

Access Locally or Remotely

CyberView VGA KVM Switches have multiple ways of controlling & switching source computers; Locally from a user station, from a web browser or VNC client over IP, and remotely from up to 500ft (150m) away through integrated CATx extenders. Pick and choose the right model for your application.
Certificate Approval

Certifications

These CyberView KVMs have been tested and approved for UL, CE, FCC, RoHS Certifications for IT, manufacturing, SOHO, commercial, military, government, and surveillance applications. For TAA Compliant applications, Austin Hughes KVMs are assembled and tested in California, USA.
Multi-Platform Support

Multi-Platform support

CyberView KVM Switches support any computer platform with USB or PS/2 keyboard and mouse interface, including all versions of Windows, Mac, Linux & SUN systems.
Channel Selection Options

Channel Selection Options

Users can quickly switch between connected computers with customizable hotkey keyboard combinations, by clicking front-panel push buttons, or with a mouse through an on-screen-display menu (OSD).
Hot Pluggable - No software or drivers required

Hot Pluggable - No software or drivers required

CyberView KVMs have been designed to be driver-free to work with all known software and computer platforms. Hot-pluggable design lets you simply add PCs or remove connected PCs for maintenance without powering down the KVM switch or PCs.
Easy Expansion KVM Cascading

Easy Expansion - KVM Cascading

Expand up to 256 source computers simply by linking VGA Matrix or Combo KVM units using cascade cables. CyberView VGA KVMs automatically detect up to 8 levels of cascade connections, letting you control and switch between all connected sources.

CyberView VGA KVMs can be used in a variety of applications. These KVMs can be accessed from the local user station, remotely using integrated Cat6 extender(s), or from a VNC client / Web Browser using Network IP. Up to 1 user can user the sources concurrently.

CyberView KVMs have been designed to be driver-free to work with all known software and computer platforms, and have been tested and approved for UL, CE, FCC, CCC, RoHS Certifications.

Austin Hughes Cat6 KVM Switch with Local Rack Console, IP & Extended Users - Diagram
Austin Hughes CyberView Network IP Session
Network IP Users

Access all your servers remotely over the internet

Use a VNC Viewer or Java Web Browser to connect to computers sources remotely from anywhere in the world. CyberViews IP based method employs enterprise grade security using AES encryption and RSA public key authentication.

Austin Hughes CyberView KVM Extender Receiver
Extended Users

Integrated KVM Extenders – Remote Access

CyberView KVMs can also be optionally controlled by users from up to 150m (500ft) away. Integrated CATx extenders allow you to easily connect the included remote user stations over single CATx cables.

CyberView VGA DB-15 KVM Switch Diagram

Multi-platform for PC, Server, Blade Server, SUN & MAC

CyberView KVMs have been designed to provide driver-free & hot pluggable access to all of your sources regardless of the devices connections or OS. Control up to 16 sources (128 cascaded) from a single keyboard, monitor, & mouse station.

For models with remote IP users, our hardware-based VNC-Over-IP solution also supports remote access to source serves via a Mobile Phone & Tablets, using native apps such as Real VNC.

Multi-platform

Combo KVM Cables

Our light-weight Combo KVM cables integrate keyboard, video, & mouse signals into a single compact cable. 6ft, 10ft, & 15ft USB-VGA KVM cables are available. Users can select the right cable length according to the installation environment. CyberView KVM cables allow you to mix and match servers across Windows, Linux and other platforms.

Austin Hughes’ CyberView VGA KVM Switches are the perfect solution for applications that require a highly reliable and versatile KVM Switch that doesn’t cost a fortune.

CyberView CB-6 6ft VGA + USB KVM Cable

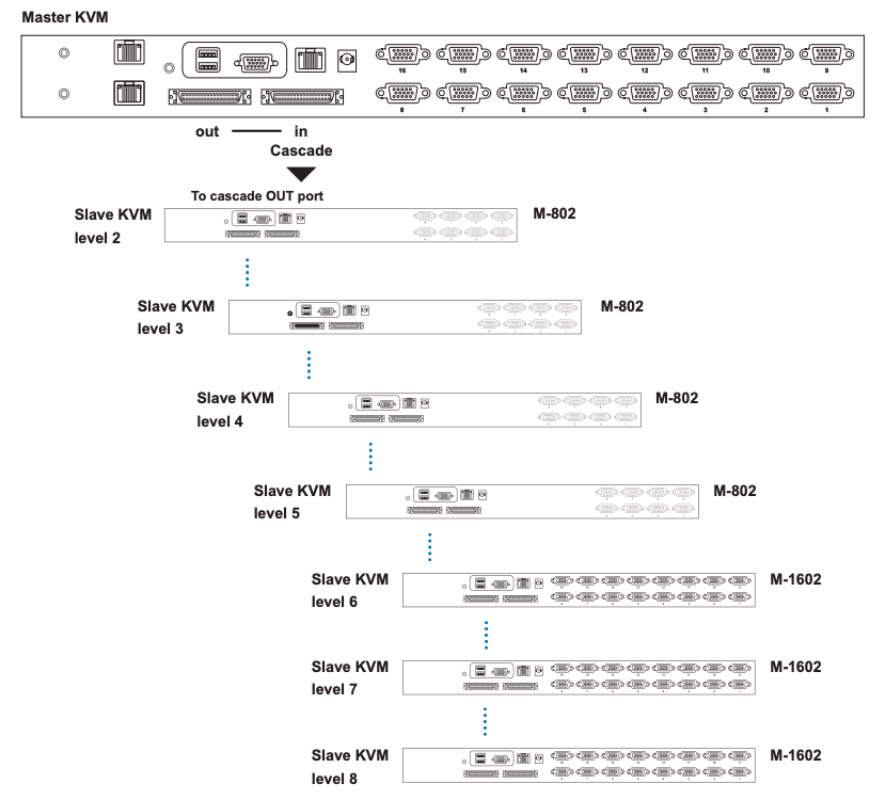

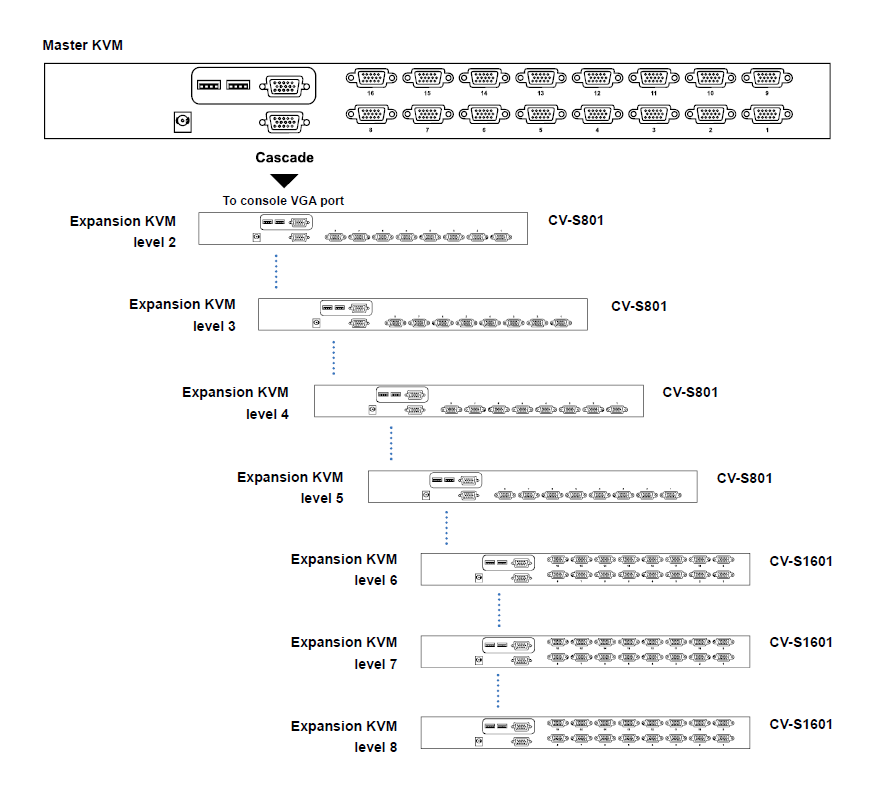

Daisy Chain Cascades up to 8 Levels

CyberView VGA KVM Switches provide a connection ports for daisy chaining multiple KVM units together. This allows you to access up to 128 source servers from a single KVM locally or remotely. For daisy chaining KVMs, simply connect each KVM in the series* to the next using our cascade cables. Up to 8 KVMs are supported in one daisy chain group.

Options & Accessories

KVM Cables

CyberView CB-6 6ft VGA + USB KVM Cable

VGA + USB KVM Cable - 6ft, 10ft, 15ft
CB-6

  • Server-end: VGA + USB-A
  • KVM port: DB-15
  • Access keyboard, video, and mouse via a single compact KVM cable
  • Source computers can be located up to 6 feet (2 m) away
  • Supports resolutions up to 1920 x 1200
CyberView CE-6 6ft VGA + USB or PS/2 KVM Cable

VGA + PS/2 KVM Cable - 6ft, 10ft, 15ft
CE-6

  • Server-end: VGA + (2) PS/2
  • KVM port: DB-15
  • Access keyboard, video, and mouse via a single compact KVM cable
  • Source computers can be located up to 6 feet (2 m) away
  • Supports resolutions up to 1920 x 1200

KVM Expansion

CyberView CBC-6 Combo KVM Cascade Cable

6ft Cascade KVM Cable for VGA KVM
CBC-6

  • Cable for linking two or more USB KVM switches together.
  • Control up to 128 servers from one keyboard, mouse, and monitor station
  • Up to 8 KVMs are supported in one daisy chain group.

Power Input

AC Power

AC Power

  • AC to DC Adapter with 6ft Power Cord
  • Auto-sensing 100 to 240VAC, 50 / 60Hz
  • Max. Power Consumption: 10 Watts
DC Power

DC Power

  • Optional 12V / 24V / 48V / 125V DC Power Input
  • Max. Power Consumption: 10 Watts

High-quality Build with Certifications for any application

Product Warranty

2 years standard warranty on all purchases. Expandable up to 5 years.

Certifications

UL, CE, FCC, REACH, ROHS2 Certified, and TAA Compliant.

Built-to-last

High-quality build with many years of in-market testing.

Global Support

Extensive authorized distributions network around the globe.

Customer Commitment

Enhance customer competitiveness through our world class quality solutions and services.

Go Green Business

BSI ISO9001 / ISO14001 accredited ensuring maximum operating efficiency.
