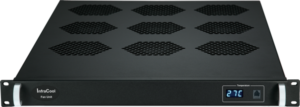

Basic 1U Rackmount Fan Tray

InfraCool

InfraCool Basic 1U rack mount Fan Tray provides a reliable airflow solution which can be mounted at the top, middle or bottom of the rack. Available with 3, 6 or 9 fans.

With today’s high density heat loads inside server racks, cooling should be an integral part of the rack equipment. InfraCool® Basic Fan Unit series is designed as a cost effective but reliable airflow solution. A full range of form factor options are available for different data center needs.

Server Rack

InfraCool 1U Rackmount Fan Tray Animation
InfraCool 1U Rackmount Fan Tray Diagram

Top Exhaust hot air out

Equipment Cooling

Bottom Cool air in

Filter products
Form Factor
Fan Type
Max. Total Fan Capacity
Fan Features
Cascade / Expansion

Basic 1U Rackmount Fan Tray

InfraCool Basic 1U rack mount Fan Tray provides a reliable airflow solution which can be mounted at the top, middle or bottom of the rack. Available with 3, 6 or 9 fans.

With today’s high density heat loads inside server racks, cooling should be an integral part of the rack equipment. InfraCool® Basic Fan Unit series is designed as a cost effective but reliable airflow solution. A full range of form factor options are available for different data center needs.

Play Video

Server Rack

InfraCool 1U Rackmount Fan Tray Animation
InfraCool 1U Rackmount Fan Tray Diagram

Top Exhaust hot air out

Equipment Cooling

Bottom Cool air in

Key Benefits

  • Basic - Minimize Rack Hot Spots

    Minimize Rack Hot Spots

    InfraCool Basic Fan Units are designed as a cost effective reliable airflow solution. 1U Fan tray can be rack-mounted at the top, middle or bottom of the rack in order to minimize the hot spots in the rack.
  • Basic - Available with 3, 6 or 9 Fans

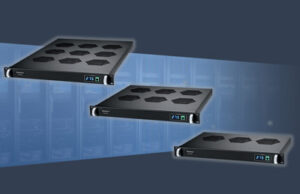

    Available with 3, 6 or 9 Fans

    User can select fan tray model with 3, 6 or 9 fan kits, depending on the total airflow required. Each fan kit delivers 108 CFM of airflow and hence up to 972 CFM of airflow can be generated by one 1U fan tray.
  • Basic - Local Temperature Monitoring

    Local Temperature Monitoring

    Each 1U fan tray is bundled with an external temperature sensor with 2M cord. The front panel LED shows the temperature detected by sensor. User can monitor the rack level temperature when operating the fan tray.
  • Basic - Only 1U of Rack Space

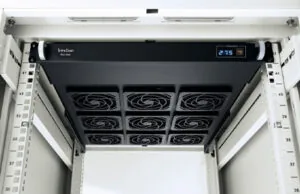

    Only 1U of Rack Space

    InfraCool rackmount fan tray is just 1U. It is efficient rack airflow solution but saves your rack space. Why still looking for bulky cooling equipment ?

Model Overview

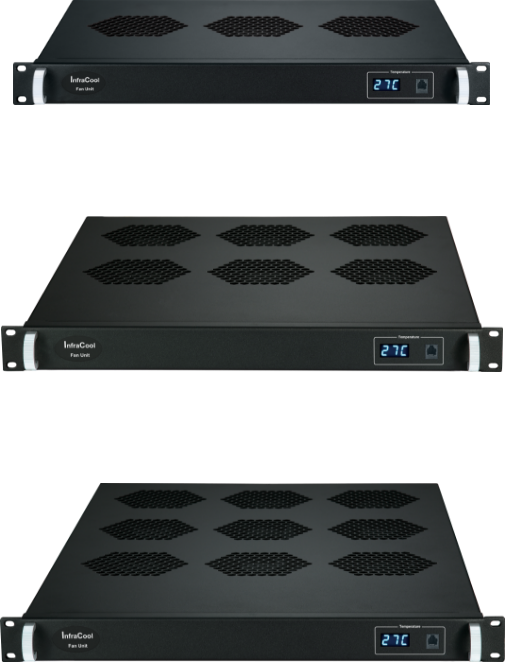

InfraCool Basic 1U Rack Mount Fan Tray

1U Rackmount Fan Tray

Basic

F-1.3
F-1.6
F-1.9

  • 1U rackmount with 3, 6 or 9 fans
  • External temperature sensor x 1
  • Front temperature LED
  • Auto-sensing 110V to 220VAC power input
  • 48V, 24V or 12VDC power option
  • 2-year standard warranty ( upgradable up to 5 years )

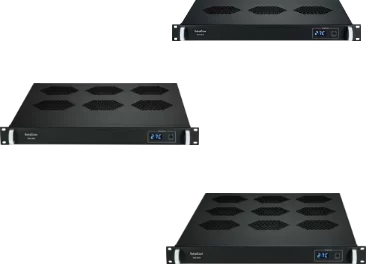

Basic 1U Rack Mount Fan Model Coverage

In order to provide scalable airflow solutions, Austin Hughes offers variety of 1U fan tray models with different amount of fans.

Fan tray models with 3, 6 or 9 fan kits can be chosen, subject to the total airflow required.

ModelFansFan CapacityTotal Capacity
F-1.33108 CFM324 CFM
F-1.66108 CFM648 CFM
F-1.99108 CFM972 CFM

External temperature sensor (included)

  • Plug & play
  • 2M wire
Austin Hughes Basic Temperature Sensor
1U Rackmount Fan Tray Basic

Management and Setup

  • 1U fan tray x 1
  • 6 ft power cord x 1
  • Rear mounting bracket x 1 pair
  • External temperature sensor x 1
  • * Bracket for F-1.6 & F-1.9 only
  • * M6 screws for fixing are not included

Options & Accessories

Environmental Monitoring

Austin Hughes Basic Temperature Sensor

External Temperature Sensor (Free)

  • Plug & play
  • 2M wire

High-quality Build with Certifications for any application

Product Warranty

2 years standard warranty on all purchases. Expandable up to 5 years.

Certifications

CE, FCC, REACH, RoHS3, LDV Certified, and TAA Compliant.

Built-to-last

MTBF (Mean-Time-Between-Failure) of 50,000 Hours.

Global Support

Extensive authorized distributions network around the globe.

Customer Commitment

Enhance customer competitiveness through our world class quality solutions and services.

Go Green Business

BSI ISO9001 / ISO14001 accredited ensuring maximum operating efficiency.

FCC Certified
CE Certified
REACH Compliant
RoHS3 Compliant
