Intelligent 1U Rackmount Fan Tray

InfraCool

InfraCool® Intelligent Fan Unit series is designed to provide local and remote management capabilities.

Up to 16 fan units can be connected by daisy chain and remotely accessed by one single IP address. Maximum 30 x daisy chain group ( i.e. 480 x Fan Unit ) can be remotely managed by the free GUI. Front panel LED and buttons allow local monitoring and individual fan kit switch on / off.

Fan speed can be set to automatically adjust based on temperature changes being detected by the sensor. The intelligent fan units provide improved airflow whilst reducing operational costs associated with data center energy consumption.

Server Rack

InfraCool 1U Rackmount Fan Tray Animation
InfraCool 1U Rackmount Fan Tray Diagram

Top Exhaust hot air out

Equipment Cooling

Bottom Cool air in

No products were found

Try again different with a different selection, or reach out to us!

We don't have results matching your selection yet, but we may be able to find or build you the right product. In addition to our full range of integrated solutions, we offer cost effective OEM / ODM services to cater for new challenges and technologies rapidly emerging from customers’ applications in different industry sectors.

Contact Sales OEM / ODM Inquiry

Intelligent 1U Rackmount Fan Tray

InfraCool® Intelligent Fan Unit series is designed to provide local and remote management capabilities.

Up to 16 fan units can be connected by daisy chain and remotely accessed by one single IP address. Maximum 30 x daisy chain group ( i.e. 480 x Fan Unit ) can be remotely managed by the free GUI. Front panel LED and buttons allow local monitoring and individual fan kit switch on / off.

Fan speed can be set to automatically adjust based on temperature changes being detected by the sensor. The intelligent fan units provide improved airflow whilst reducing operational costs associated with data center energy consumption.

Play Video

Server Rack

InfraCool 1U Rackmount Fan Tray Animation
InfraCool 1U Rackmount Fan Tray Diagram

Top Exhaust hot air out

Equipment Cooling

Bottom Cool air in

Key Benefits

InfraCool Daisy Chain Reduce IP Addresses

Reduce IP Address Cost in the Network

Intelligent fan units support daisy chain connection. Up to 16 fan unit levels can be connected in a daisy chain group and to be remotely accessed via only 1 IP address. User can remotely manage the intelligent fan unit groups by the management software in providing uptime and improving productivity.
ICM-02 InfraCool Airflow Manager Software

High Density Fan Unit Management

ICM-02 - the associated software for Intelligent Fan Unit series supports remote management of multiple fan unit daisy chain groups. Up to 30 fan unit daisy chain groups and hence 480 fan units can be remotely managed via IP by one GUI.
Automatic Fan Speed ControlAutomatic Fan Speed Control

Automatic Fan Speed Control

The User always wants to achieve the optimum airflow adjustment but with minimum operational cost for energy consumption. Automatic fan speed control can be set locally or remotely, so that fan speed can be adjusted according to the alarm threshold and the temperature detected by the external sensor. At a normal temperature the fan speed is kept at mid-level. Fan speed is increased when temperature rises above the threshold.
InfraCool Free Management Software

Free Management Software

InfraCool® Manager ICM-02 is a FREE Air Flow management software to remote & monitor up to 30 Master IP Groups ( max. 16 fan unit levels in each Master IP Group ), total 480 fan units. 5 concurrent user access are bundled for achieving the demand of multi-user / multi-tasking in nowadays’ time sharing data center operation.

Model Overview

1U Rackmount Fan Tray Intelligent Fan Unit series offers Master and Expansion models.

Master Fan Unit is bundled with internal IP dongle. Hence, it is applied as the 1st level fan unit in the daisy chain. Expansion Fan Units without built-in IP dongle will be located to the 2nd to 16th fan unit levels.

Comparison Table

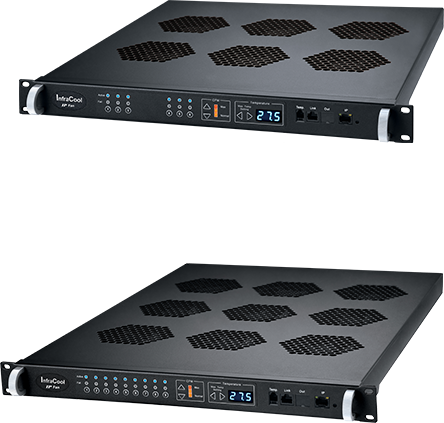

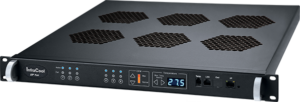

1U Rackmount Fan Tray Intelligent Master

1U Rackmount Fan Tray

Master

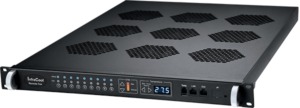

MRF-1.6
MRF-1.9

IPOUT

1U Rackmount Fan Tray

Expansion

RF-1.6
RF-1.9

LINKOUT

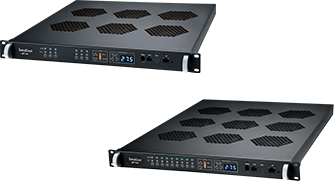

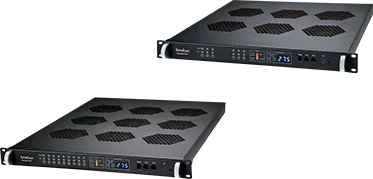

1U Rackmount Fan Tray Intelligent Slave

Intelligent Master & Expansion - 1U Rackmount Fan Tray

Master Fan Units are bundled with an internal IP dongle, and are used as the 1st level in the daisy chain. Up to 16 fan units ( 1 x Master + 15 x Expansion ) can be connected by daisy chain and remotely accessed by one single IP address. Front panel LED and buttons allow local monitoring and individual fan kit switch ON / OFF.

Fan tray models with 6 or 9 fan kits can be chosen, subject to the total airflow required.

Model Fans Fan Capacity Total Capacity
MRF / RF-1-6 6 108 CFM 648 CFM
MRF / RF-1-9 9 108 CFM 972 CFM

External temperature sensor (included)

IG-T01-2M

  • Plug & play
  • Magnetic base
  • 2M wire
  • Optional 4M wire

Austin Hughes Magnetic Temperature Sensor
1U Rackmount Fan Tray Intelligent

Fan Unit Meter Setting & Daisy Chain

How To Connect

  • Connect each fan unit in series to the next by Cat5/6 cable, up to 16 x fan unit in a daisy chain
  • Apply the Master model as the 1st level fan unit in the daisy chain. The Master model with built-in IP Dongle and IP port will be connected to network device and WAN.
  • Apply the Expansion models as the 2nd to 16th level fan units.
  • All the fan units in the daisy chain group can be remotely accessed by only 1 x true IP address

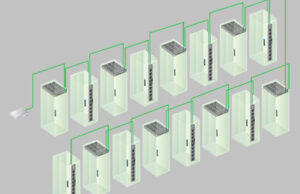

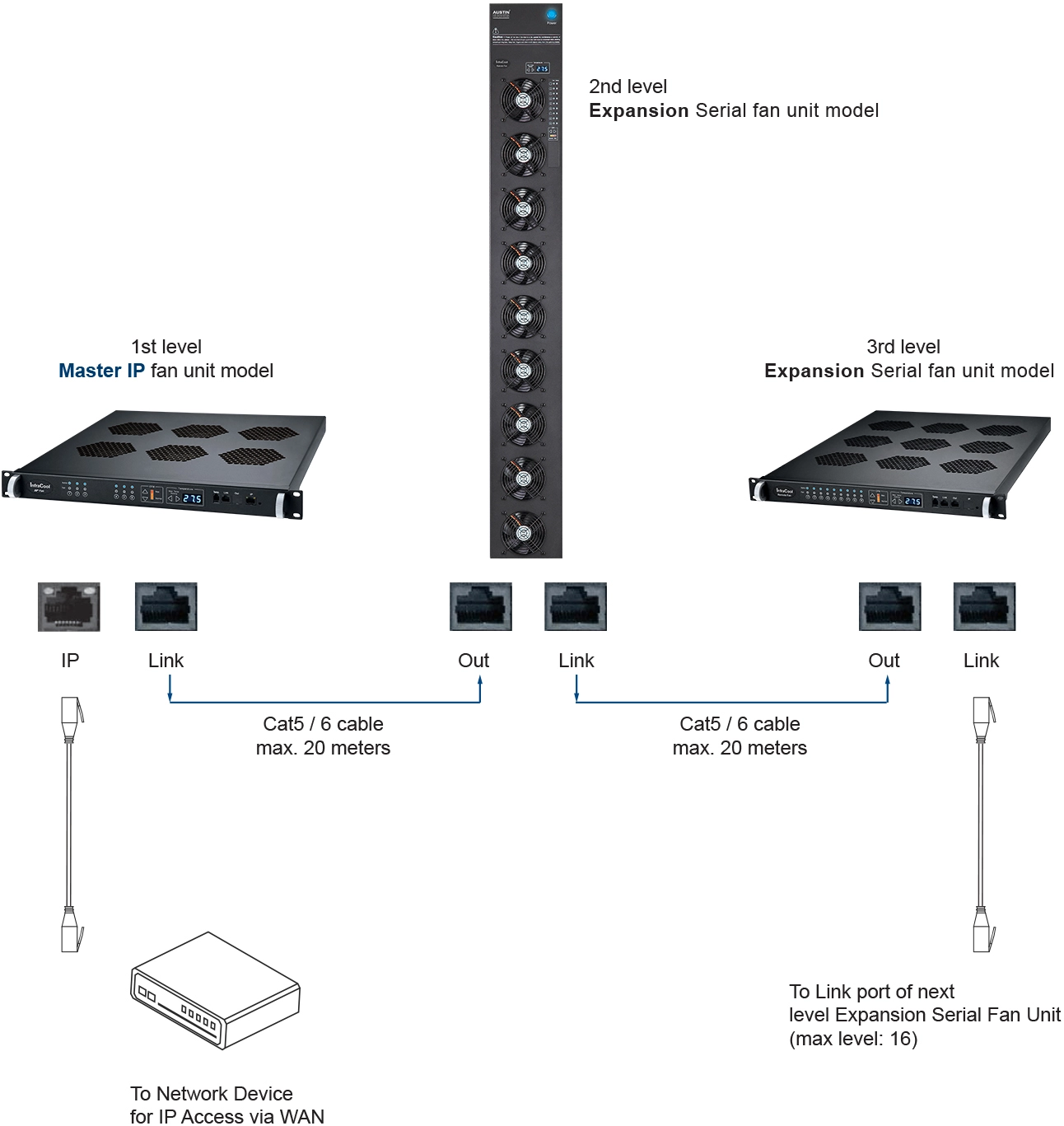

InfraCool Intelligent Fan Daisy Chain / Cascade / Expansion Connection Diagram
InfraCool Intelligent Fan Daisy Chain / Cascade / Expansion Diagram

Centralized Fan Unit Remote Management

Maximum 16 intelligent fan units in daisy chain can be remotely access by one single IP address.

ICM-02 – the associated software for Intelligent Fan Unit series supports remote management of multiple fan unit daisy chain groups. Up to 30 fan unit daisy chain group and hence 480 fan units can be IP managed remotely by one GUI.

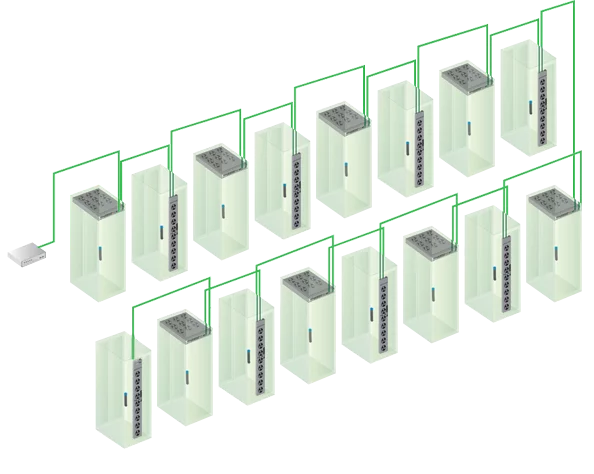

InfraCool Intelligent Fan Daisy Chain / Cascade / Expansion Diagram Features

Airflow Remote Management Over IP

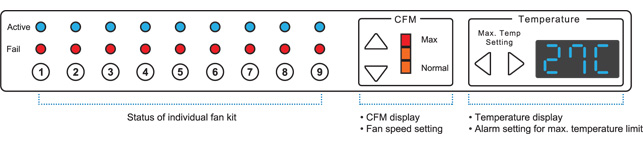

Front Panel for Local Monitoring / Control

Advanced front panel of the Intelligent Fan Units provides an easy control and monitoring on the fan kits and
airflow. User can switch on / off the Fan Kits and the fan speed can be adjusted locally. Alarm threshold
setup can also be done by the control buttons.

InfraCool Door Fan Front Panel for Local Monitoring / Control

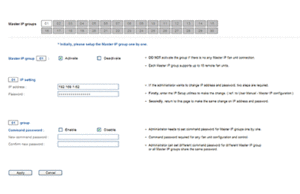

Integrated Web-based Management Software (GUI)

A web-based GUI is integrated with the Intelligent Master Fan. It is ideal for some users who simply require the fan monitoring and switching over IP.

Control Through 3rd Party DCIM via SNMP V2 / V3

Nowadays, many data centers apply the DCIM ( Data Center Infrastructure Management ) in order to centralize the management for monitoring power, cooling and environmental factors across facilities and IT systems. InfraCool intelligent Fan supports SNMP integration and hence users can remotely manage the rack fans via their DCIM.

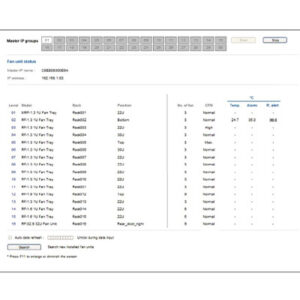

Free Management Software (ICM-02)

InfraCool® Manager ICM-02 is a FREE Air Flow management software to remote & monitor up to 30 Master IP Groups ( max. 16 fan unit levels in each Master IP Group ), total 480 fan units.

5 concurrent user access are bundled for achieving the demand of multi-user / multi-tasking in nowadays’ time sharing data center operation.

ICM-02 Features

Options & Accessories

Environmental Monitoring

Austin Hughes Magnetic Temperature Sensor

External Temperature Sensor (Free)
IG-T01-2M

  • Plug & play
  • Magnetic base
  • 2M wire
  • Optional 4M wire
ICM-02 InfraCool Airflow Manager Software

InfraCool Manager Software (Free)
ICM-02

  • FREE Air Flow management software
  • Remote & monitor up to 30 Master IP Groups ( max. 16 fan unit levels in each Master IP Group )
  • Manage up to 480 fan units
  • 5 concurrent user access
  • Multi-user / multi-tasking for modern time sharing data center operation.

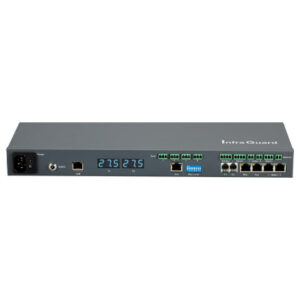

InfraGuard Rack Sensor Solution

InfraGuard Rack Sensor Solution

  • Control of cooling fans
  • Switching and monitoring of PDUs
  • Two door and two side panel alarms
  • LED Light bar or beacon
  • Monitoring of:
    • Temperature
    • Humidity
    • Smoke
    • Shock
    • Water alarms

Expansion

33U Rack Door Fan Panel (Slave) RF-33.9

33U Rack Door Fan Panel (Expansion)
RF-33.9

  • 33U door mount extract / intake fan panel with 9 fans
  • Improves extraction of heat from high density rack
  • Low noise & high airflow performance
  • Thin & light weight design only 5 kg / 11 lb

High-quality Build with Certifications for any application

Product Warranty

2 years standard warranty on all purchases. Expandable up to 5 years.

Certifications

CE, FCC, REACH, ROHS2, LDV Certified, and TAA Compliant.

Built-to-last

MTBF (Mean-Time-Between-Failure) of 50,000 Hours.

Global Support

Extensive authorized distributions network around the globe.

Customer Commitment

Enhance customer competitiveness through our world class quality solutions and services.

Go Green Business

BSI ISO9001 / ISO14001 accredited ensuring maximum operating efficiency.

FCC Certified
CE Certified
REACH Compliant
RoHS2 Compliant
