Basic Raised Floor Mount Fan

InfraCool

InfraCool Basic Raised Floor Mount Fan Units help deliver strong cool air from underfloor via the contained aisle to high density server racks to eliminate internal hot spots. Maximizes CRAC (Computer Room Air Conditioning) efficiency and saves energy costs.

InfraCool Raised Floor Mount Fan Cold Isle Containment Diagram
InfraCool Raised Floor Mount Fan Unit Animation

No products were found

Try again different with a different selection, or reach out to us!

We don't have results matching your selection yet, but we may be able to find or build you the right product. In addition to our full range of integrated solutions, we offer cost effective OEM / ODM services to cater for new challenges and technologies rapidly emerging from customers’ applications in different industry sectors.

Contact Sales OEM / ODM Inquiry

High quality, low-cost, Raised Floor Mount Fans

InfraCool Basic Raised Floor Mount Fan Units help deliver strong cool air from underfloor via the contained aisle to high density server racks to eliminate internal hot spots. Maximizes CRAC (Computer Room Air Conditioning) efficiency and saves energy costs.

Play Video

InfraCool Raised Floor Mount Fan Cold Isle Containment Diagram
InfraCool Raised Floor Mount Fan Unit Animation

Key Benefits

Quad EC (Electronically Communicated) Fans

Quad EC ( Electronically Communicated ) Fans

InfraCool® F-66.4 consists of four high performance and quality EC fans. It provides unit CFM up to 2,100 and unit MTBF up to 50,000 hours.
For Retrofits or New Aisle Constructions

Maximize CRAC Efficiency & Minimize Rack Hot Spots

InfraCool® F-66.4 delivers strong cool air from underfloor via the contained aisle to the high density server racks to eliminate inside hot spots. Eventually, F-66.4 not only maximizes CRAC efficiency, but also saves energy cost.

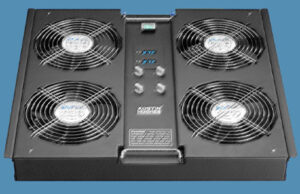

Raised Floor Fan Individual Fan On Off

Individual Fan On / Off

Each EC fan is equipped with an individual on / off switch. It provides flexibility for users while the aisle environment or rack cooling requirement changes.
InfraCool Raised Floor Unit / Fan Speed Levels

Unit / Fan Speed Levels

Each EC fan is provided with 3 speed levels. User can adjust the speed level according to aisle environment and requirements. Energy expenses for the cooling become more cost-effective as lower speed level costs much less.
Temperature Monitoring

Overall Temperature Monitoring

By two temp. sensors and LED display, it is easy to monitor the temperature status in rack level, aisle level and even air duct underfloor level. Eventually, user can be aware of overall temperature environment.

Model Overview

Raised Floor Mount Fan - Basic F-66.4

Raised Floor Mount

Basic

F-66.4

T1T2
  • Quad EC ( Electronically Communicated ) fans
  • Maximizes aisle containment cooling performance
  • Minimizes hot spots in server rack
  • Provides overall temperature monitoring
  • Adjustable CFM Levels
  • Unit or individual fan on / off
  • 2 x bundled temp. sensors with 2M wire
  • 2-year standard warranty ( upgradable up to 5 years )

Control & Monitoring

Control Panel

F-66.4 is integrated with a control panel for easy management. Users can switch on / off for individual EC fans. Apart from individual EC Fan status and CFM figures, it also provides monitoring of temperature detected by the two sensors.

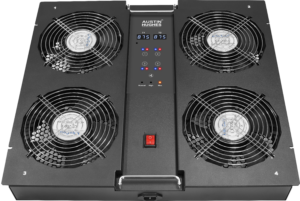

InfraCool Basic Raised Floor Fan Control Panel

Temperature Sensor

With two included temperature sensors, it is easy to monitor the temperature status in rack level, aisle level and even air duct underfloor level. Eventually, user can be aware of overall temperature environment.

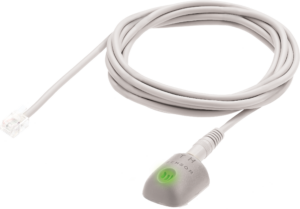

Austin Hughes Basic Temperature Sensor

Bundled Temp. Sensor x2

  • Plug & Play
  • 2M Wire

Management and Setup

Basic Raised Floor Fan Package Contents

  1. Fan Unit
  2. Temperature sensor with cable x 2
  3. Support bracket, left & right side
  4. Bracket fi xing plate x 4
  5. M8 screw & nut x 8 ( for fi xing plate )
  6. M5 screw x 4

Before Installation

  • Make sure the fan unit is installed under the 600 x 600mm raised floor & located in front of the server rack.
  • The fan unit contains moving parts which may cause serious injury. Don’t apply power until the installation is complete.
  • The fan unit must be installed by a qualified electrician and comply with local and national regulations.
  • Use the provided input power cord to connect the unit. The power voltage must be rated 208V or 230V.
  • Never disassemble the unit. It contains potentially hazardous voltages.

Accessories

Austin Hughes Basic Temperature Sensor

Temperature Sensor (2x included)
IG-T01-2M

  • Plug & play
  • 2M wire

High-quality Build with Certifications for any application

Product Warranty

2 years standard warranty on all purchases. Expandable up to 5 years.

Certifications

CE, FCC, REACH, ROHS2, LDV Certified, and TAA Compliant.

Built-to-last

MTBF (Mean-Time-Between-Failure) of 50,000 Hours.

Global Support

Extensive authorized distributions network around the globe.

Customer Commitment

Enhance customer competitiveness through our world class quality solutions and services.

Go Green Business

BSI ISO9001 / ISO14001 accredited ensuring maximum operating efficiency.
