Intelligent Dual-Feed Rack PDU

110V / 208V / 230V

W Series Single-Phase Dual-Feed PDUs are designed to house two PDUs in a single chassis, facilitating easier PDU setup, saves spacing, and consolidating IP addresses. Dual-feed PDUs can be used for redundant power or as separate PDUs. Colored layout to distinguish between primary and redundant (A&B) feeds. The meter not only allows local monitoring for 2 PDUs, but also supports up to 16 cascade levels.

Intelligent Dual-Feed Rack PDU

W Series Single-Phase Dual-Feed PDUs are designed to house two PDUs in a single chassis, facilitating easier PDU setup, saves spacing, and consolidating IP addresses. Dual-feed PDUs can be used for redundant power or as separate PDUs. Colored layout to distinguish between primary and redundant (A&B) feeds. The meter not only allows local monitoring for 2 PDUs, but also supports up to 16 cascade levels.

Wi PDU Series

  • Circuit Monitoring
  • Outlet Monitoring

WS PDU Series

  • Circuit Monitoring
  • Outlet Switching

WSi PDU Series

  • Circuit Monitoring
  • Outlet Monitoring
  • Outlet Switching

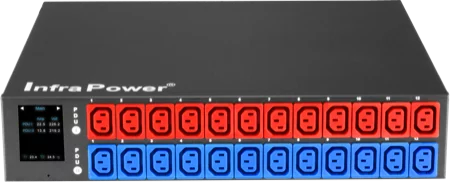

Vertical Dual Feed PDU

Vertical

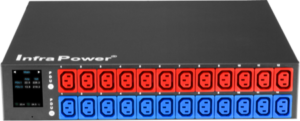

Horizontal Dual Feed PDU

Horizontal

110V

Certified for TUV, cUL, FCC
More details

208V

Certified for TUV, cUL, FCC
More details

230V

Certified for CE
More details

Key Features

InfraPower W series Dual Feed PDU is designed to house two PDUs in a single chassis which only requires one side installation. With InfraPower Dual Feed PDU, power & data cable separation is easily achieved. In addition, space-saving design and Red + Blue distinguishable layout contribute to a well-organized rack cabling. The creative 1 Meter 2 PDUs solution not only allows local monitoring for 2 PDUs by one meter, but also supports PDU daisy chain connection for saving network IP addresses.

1 Chassis, 2 PDUs - InfraPower Dual Feed PDU

1 Chassis 2 PDUs

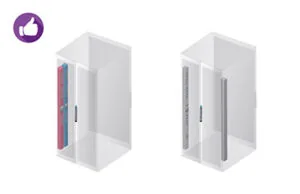

Traditionally, data center racks are equipped with two PDUs positioned in the rear left and right side respectively. InfraPower W series Dual Feed PDU is designed to house two PDUs in a single chassis which only requires one side installation. Hence, this facilitates PDU setup and saves spacing. Users also benefit from the Red + Blue colored layout to distinguish the primary & secondary PDUs.
1 Meter, 2 PDUs - InfraPower Dual Feed PDU

1 Meter 2 PDUs

Creatively, Austin Hughes develops 1 Meter 2 PDUs solution - InfraPower W series Dual Feed PDU. The sophisticated LCD touchscreen meter is integrated in a single chassis but for both primary and secondary PDUs. The meter not only allows local monitoring for 2 PDUs, but also supports up to 16 cascade levels. By the patent IP dongle, only one IP is required to access up to 32 PDUs in a single cascade group.
Facilitate Cable Management - InfraPower Dual Feed PDU

Facilitate Cable Management

It becomes one of the cable management standard to separate power and data cables inside a rack. On the one hand, it minimizes the erratic data transfer as well as EMI. On the other hand, it distinguishes the power & data cabling. By InfraPower Dual Feed PDU, power & data cable separation is easily achieved. In addition, space-saving design and Red + Blue distinguishable layout contribute to a well-organized rack cabling.

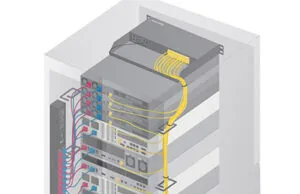

One Side Orientation for Power Cabling - InfraPower Dual Feed PDU

One Side Orientation for Power Cabling

Power and data cables should be kept apart in order to avoid interference. It is a typical practice to isolate power cabling to one side of the rack, whether it is for primary or secondary power connection. InfraPower Dual Feed PDU series offers an efficient, convenient & space saving solution - Primary & Secondary PDUs are integrated to one unit with dual power feed.

Sophisticated W Meter with 2.8” LCD

Austin Hughes developed the 1 Meter 2 PDUs W series Dual Feed PDU solution. The sophisticated LCD touchscreen meter is integrated in a single chassis but for both primary and secondary PDUs. It provides not only local metering but also connection ports for PDU daisy chain as well as external sensor.

The 2.8” color LCD provides a sharp and highly visible display of kWh, kW, Power Factor, Volt, Amp, Temperature and Humidity. Apart from monitoring, W meter provides the cascade ports for daisy chain up to 32 or 64 PDUs. For PDU IP access, simply connect one IP Dongle for all daisy chain PDUs. This allows use of a single IP address throughout the power network.

W meter is field replaceable unit which is hot swappable without the need to power down the PDU and the mission critical equipment.

1-Phase Dual-Feed PDU Meter Diagram
Amperage & Peak Load Amp - PDU 1, Circuit A PDU Meter Screen - 1-Phase Dual Feed Intelligent PDU
Amperage & Peak Load Amp - PDU 2, Circuit A Meter Screen - 1-Phase Dual Feed Intelligent PDU
Amperage & Peak Load Amp - PDU 1, Circuit B Meter Screen - 1-Phase Dual Feed Intelligent PDU
Amperage & Peak Load Amp - PDU 2, Circuit B Meter Screen - 1-Phase Dual Feed Intelligent PDU
Power Factor, Active Power, Apparent Power, Frequency - PDU 1 Power Meter Screen - 1-Phase Dual Feed Intelligent PDU
Power Factor, Active Power, Apparent Power, Frequency - PDU 2 Power Meter Screen - 1-Phase Dual Feed Intelligent PDU

Consolidated Solution with Dual Power

InfraPower Dual-Feed PDUs can be used as two separate PDUs with efficient power management & monitoring, OR as a solution for Redundant Power.

N+1 Redundant Power ensures uptime of connected servers by providing two separate power sources to each device. When used on a dual-feed device or with an InfraPower ATS, If the primary power feed fails, the device will automatically switch power to the other source.

Horizontal Dual Feed PDU

Patented PDU IP Dongle provides IP remote access to the PDUs by a true network IP address chain. Only one PDU IP Dongle allows access to up to 16 PDUs (with PDU IP Dongle IPD-02S) or up to 32 PDUs (with Dual Lan PDU IP Dongle IPD-03-S) in a single daisy chain – which is a highly efficient application for saving not only the IP remote accessories cost, but also the true IP addresses required on the PDU management.

Hot-Pluggable design facilitates the PDU IP Dongle installation. Simply integrate the IP Dongle to the first PDU, then the entire daisy chain group can be remote over IP.

Dual Lan IP Dongle

IPD-03-S  PDU IP Dongle – Dual LAN

Up to 32 levels in daisy chain

Daisy Chain Cascades up to 16 / 32 Levels

InfraPower® dual-feed rack intelligent PDUs provide connection ports for PDU daisy chain. To daisy chain units, each PDU can simply be connected in series to the next by Cat5/6 cables. Standard PDU IP Dongle (IPD-02-S) supports up to 16 PDUs in one daisy chain group. With the new Dual Lan PDU IP Dongle (IPD-03-S), up to 32 daisy chain levels can be achieved.

Dual-Feed PDU IP Dongle Cascade Connection Diagram

High Efficiency PDU Remote Management

Patented PDU IP Dongle provides IP remote access to the PDUs by a true network IP address chain. Only one network IP is required for max. 16 or 32 PDUs in a single daisy chain. InfraPower offers 3 kinds of remote management solutions for users’ selection. Management Software IPM-04, Web-based GUI, or 3rd Party DCIM via SNMP. The free but comprehensive IPM-04 supports up to 50 IP groups. Hence, 800 or 1600 Dual Feed PDUs can be remotely managed from anywhere.

InfraPower High Efficiency PDU Management Diagram

PDU Remote Management Over IP

PDU remote management helps reducing manpower and hence improving uptime and productivity. It also benefits users with capacity planning and increasing the overall efficiency of the data center. InfraPower® intelligent PDU offers 3 kinds of remote management solutions for users’ selection.

Integrated Web-based Management Software (GUI)

A web-based GUI is integrated with our intelligent PDU. It is ideal for some users who simply require the power
monitoring and input switching over IP.

Control Through 3rd Party DCIM via SNMP

InfraPower® Manager IPM-04 is the free, powerful and user friendly PDU management software provided with W Series PDUs.

The Administrator can remotely manage the PDUs and the temperature / humidity sensors via the web browser. The Windows based software consolidates management of max. 800 PDUs via 50 IP dongles. 5 concurrent user access licences are part of the IPM-04 bundle, for achieving the demand of multi-user requirements in data center operations.

IPM-04 provides complete PDU monitoring / control and reporting functions for your data center.

Free PDU Management Software (IPM-04)

InfraPower® Manager IPM-04 is the free, powerful and user friendly PDU management software provided with W Series PDUs.

The Administrator can remotely manage the PDUs and the sensors via the web browser. The Windows based software consolidates management of max. 1600 1-Phase & 3-Phase PDUs via 50 Dual LAN IP dongles (IPD-03-S), or max. 800 PDUs via 50 standard IP dongles (IPD-02-S). 5 concurrent user access licenses are part of the IPM-04 bundle, for achieving the demand of multi-user requirements in data center operations.

IPM-04 provides complete PDU monitoring / control and reporting functions for your data center.

IPM-04 Features

Accessories & Options

IP Access Devices

InfraPower IP Dongle IPD-02-S

IP Dongle
IPD-02-S

  • US & wordwide patents
  • All IP remote access
  • Supports up to 16 daisy chained PDUs
  • IP remote access via free management software IPM-04, web GUI & SNMP V2 / V3
  • Detachable design
Dual Lan IP Dongle

Dual Lan IP Dongle
IPD-03-S

  • US & wordwide patents
  • Dual LAN Network Failover
  • Auto-negotiable 10/100 BaseT Ethernet & Gigabit Ethernet standard
  • Enterprise IP Authentication & Remote Management Protocols
  • Supports up to 32 daisy chained PDUs
  • Simultaneous multiple access via free management software IPM-04, web GUI & SNMP V2 / V3
  • USB Wifi Port for connection to Wifi kit ( IPD-WIFI ) with standards 802.11 g/n/ac
  • Detachable design

Sensors & Peripherals

4.3" External PDU Panel

4.3" Door Mount Display Panel
IP-ED-01

  • 2 x InfraPower PDU Connection
  • Supports 1-Phase & 3-Phase PDUs
  • Displays power, temp., humid., smoke or door sensor status
  • Alarm & log
  • Viewable while doors in closed position
  • Resistive touchscreen
  • Panel resolution 480 x 272
  • Horizontal or vertical display option
  • Easily affix to doors by magnetic rear
  • No cut-out / damage required to doors
  • Upgrade standard third party racks to smart and stylish look
  • Plug & Play
Austin Hughes Temperature & Humidity Sensor

Temp. & Humid. Sensor or Temp. Sensor
IG-TH01-2M/4M or IG-T01-2M/4M

  • Plug & Play
  • External sensor with 2M or 4M cord
  • Low profile design with magnetic base for easy affixing to the rack
Austin Hughes Smoke Sensor

Smoke Sensor
IP-S01-1M/3M

  • Smoke Sensor with 1M or 3M cord
  • When smoke alarm triggers, sensor red LED lights on with beep sound continuously
Austin Hughes Door Sensor

Door Sensor
IP-DSW-2M/4M

  • Mechanical door sensor with 2M or 4M cord
  • Cost efficient integration into rack

Safety Devices

Magnetic Circuit Breaker (MCB) - InfraPower PDU

Magnetic Circuit Breaker
MCB

  • Hydraulic magnetic circuit breaker
  • Overload switch
  • Designed to prevent accidental on / off operation
  • Safety Regulatory : UL / cUL / TUV / CE

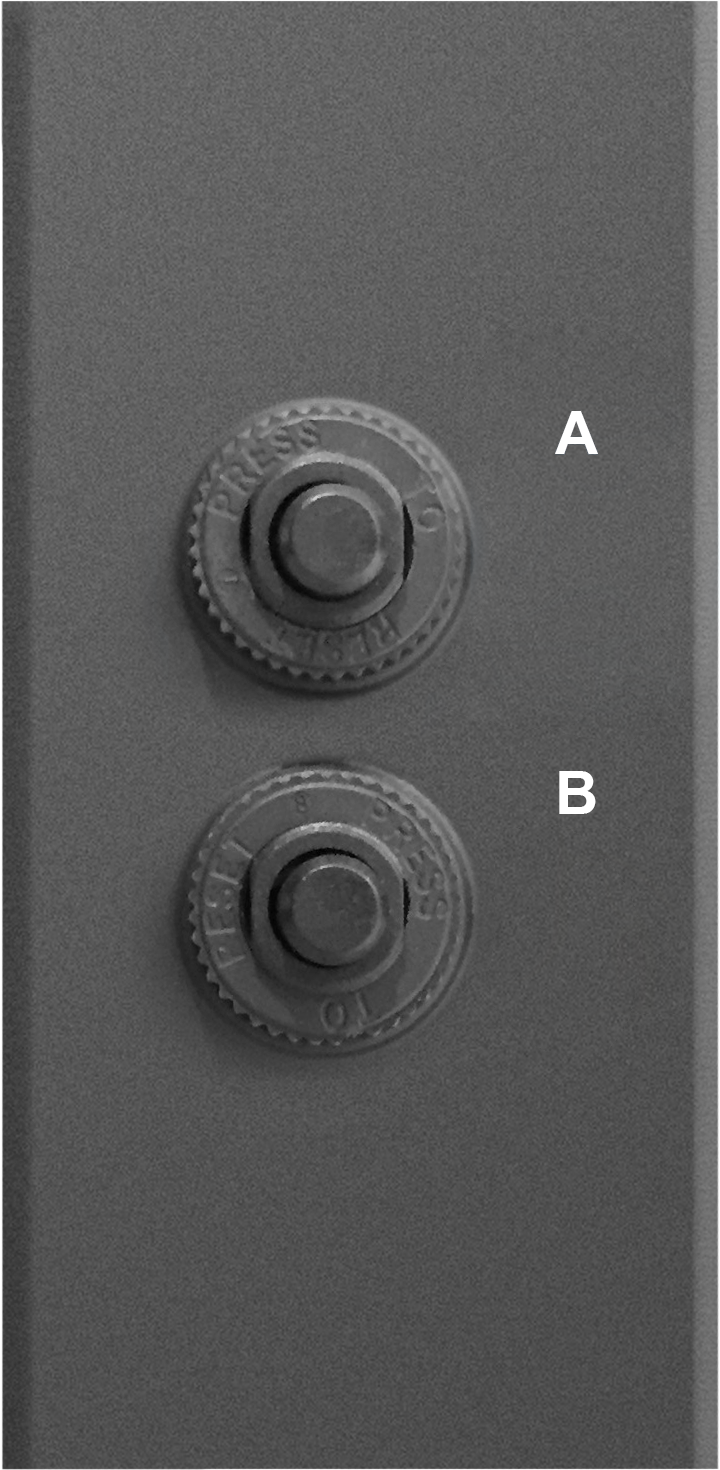

Resettable Fuse - InfraPower PDU

Resettable Fuse

  • Protected load segments for increased reliability
  • Overload reset button
  • Safety Regulatory : UL / cUL / CSA / TUV / CCC / VDE
Electromagnetic Interference (EMI) Filter - InfraPower PDU

Electromagnetic Interference Filter
EMI

  • Maintains power stability
  • Suppresses conducted interference on a signal/power line
Surge Protector SPT - InfraPower PDU

Surge Protector
SPT

  • Surge Protector
  • Enhances the device protection
  • Grounds unwanted voltages above the safe threshold
Earth-leakage Circuit Breaker (ELCB) - InfraPower PDU

Earth-leakage Circuit Breaker
ELCB

  • Earth-leakage circuit breaker
  • Safety component with high
  • Earth impedance to prevent shock
  • Interrupting the circuit if a dangerous voltage is detected
Residual Current Monitoring (RCM) - InfraPower PDU

Residual Current Monitor
RCM

  • Residual current monitoring
  • Alerts users to current leaking from IT devices
  • Reduces the danger for both the user and IT system

Mounting Tools

InfraPower PDU Vertical Tool-less Button Mounting Kit Diagram

Vertical Button Mounting
VMS

  • Quick and Tool-less integration simplifies PDU installation
  • Designed for particular global branded cabinet with key hole type mounting holes on rear verticals
InfraPower PDU Vertical Bracket Mounting Kit Diagram

Vertical Bracket Mounting
VMB

  • Universal mounting kit supports all cabinet models
  • Easy integration by mounting the PDU to the cabinet cable tray

Outlets

Lockable IEC Outlets - InfraPower PDU

Lockable IEC Outlet

  • Lockable IEC outlet PDU models are available to secure plugs and prevent accidental disconnection
  • Support regular or switched IEC outlets
  • Compatible with InfraPower lockable IEC power cords for outlet locking features
Individual Fused IEC Outlets - InfraPower PDU

Fused IEC Outlet

  • Prevent overload of the active equipment
  • Avoid short circuiting of the entire PDU
  • 10A Rated C13 outlet with 5A glass fuse
  • 16A Rated C19 outlet with 10A glass fuse

Power Cords

Lockable Color Power Cords & Outlets - InfraPower PDU

Lockable IEC Colored Power Cords

  • Patented design
  • Proprietary for InfraPower PDU
  • Applicable to standard IEC outlet in the market
  • VDE & ENEC approvals
  • Quality & cost effective
  • Easy to lock & secure
  • 6-colors : Black / Grey / Red / Blue / Orange / Green
  • C13-C14 (1.0mm²) : 0.5M / 1M / 2M
  • C19-C20 (1.5mm²) : 1M / 2M

Color UK Power Cord - InfraPower PDU

Colored UK Power Cord

  • Enhance cable management and visualize power sources
    Selection:
    Blue / Red
    UK – C13 (0.75 mm²): 3ft / 6ft
