4K 60Hz / 2K KVM Switch

CyberView

Austin Hughes CyberView 4K / 2K KVM Switches feature a slim, rack mountable 1U chassis and allow an administrator to control up to eight servers from one keyboard, mouse and monitor setup. These new state-of-art devices support switching between multiple HDMI, DVI, DisplayPort enabled servers with resolutions up to 4K 60Hz. Mix and match operating systems with this multi-platform KVM to control PC.

No products were found

Try again different with a different selection, or reach out to us!

We don't have results matching your selection yet, but we may be able to find or build you the right product. In addition to our full range of integrated solutions, we offer cost effective OEM / ODM services to cater for new challenges and technologies rapidly emerging from customers’ applications in different industry sectors.

Contact Sales OEM / ODM Inquiry

4K 60Hz / 2K KVM Switch

Austin Hughes CyberView 4K / 2K KVM Switches feature a slim, rack mountable 1U chassis and allow an administrator to control up to eight servers from one keyboard, mouse and monitor setup. These new state-of-art devices support switching between multiple HDMI, DVI, DisplayPort enabled servers with resolutions up to 4K 60Hz. Mix and match operating systems with this multi-platform KVM to control PC.

Standalone 4K / 2K KVM Switch

Stand-alone

Control KVM from a local console
Integrated KVM Switch in 1U Rack Console Drawer

Integrated

Integrate into an Rack Console Drawer

4K 60Hz KVM

Switch between DP & HDMI sources with up to 4K resolution, and USB Hub.
More details

2K KVM

Switch between DVI-D & HDMI sources with up to 2K resolution.
More details

Key Features

CyberView 4K 60Hz & 2K KVM take advantage of both advanced video connection and flexible form factor for rackmount servers and professional workstation application in high resolution. CV-801K and CV-801D offer effortless KVM management with the superior video quality up to 4K 60Hz and 2K respectively.

High Definition

High Definition Video (4K / 2K / 1080P)

CyberView 4K 60Hz / 2K KVM Switches support uncompressed pixel-perfect digital video at resolutions up to 4K UHD (3840 x 2160) @ 30Hz, and 2K / 1920 x 1200 / 1080p @ 60Hz.
HDMI DisplayPort DVI Sources

HDMI, DisplayPort, & DVI Sources

CyberView 4K 60Hz / 2K KVMs feature HDMI 1.4 video inputs ports that support any combination of HDMI, DisplayPort, and DVI sources through low-cost naitive KVM cables.
Multi-Platform Support

Multi-Platform Support

CyberView KVM Switches support any computer platform with USB keyboard and mouse interface, including all versions of Windows, Mac, Linux & SUN systems.

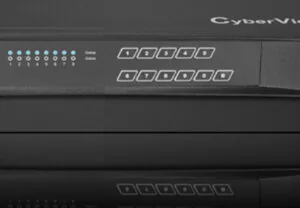

Channel Selection Options

Channel Selection Options

Users can quickly switch between connected computers with customizable hotkey keyboard combinations, by clicking front-panel push buttons, or with a mouse through an on-screen-display menu (OSD).
Plug & Play / Driver-Free

Plug & Play / Driver-Free

CyberView KVMs have been designed to be driver-free to work with all known software and computer platforms. Hot-pluggable design lets you simply add PCs or remove connected PCs for maintenance without powering down the KVM switch or PCs.

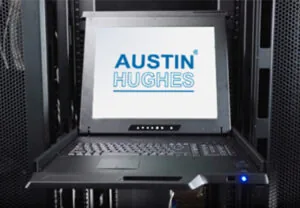

KVM Switch Integrated in 1U Rack Console Drawer

1U Rack Mount or Integrate Into Rack Drawer

CyberView 4K / 2K KVM switch can be rack mounted into 1U of space (rack brackets included), or it can be purchased integrated into a CyberView Rack Console. Small size also makes the units ideal for mounting behind third-party rack console.

All-in-one Control Solution

Austin Hughes 4K 60Hz & 2K KVM switches designed to allow users to control & switch between all the computers in an environment from a single convenient 1U rack mount solution.

CyberView KVMs have been designed to be driver-free to work with all known software and computer platforms, and have been tested and approved for UL, CE, FCC, CCC, RoHS Certifications IT, manufacturing, SOHO, commercial, military, government, and broadcast applications.

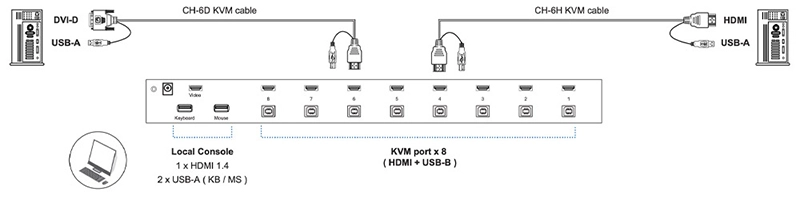

CyberView 4K / 2K KVM Switch Diagram
CyberView 4K KVM Switch
4K 60Hz KVM

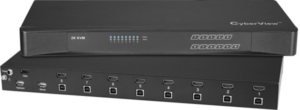

CyberView 2K KVM Switch
2K KVM

Superior Video Quality

Austin Hughes CyberView 4K 60Hz & 2K KVM Switches feature pixel-perfect ultra-high definition video with support for sources that have resolutions up to 4K 60Hz / 2K 60Hz

CyberView 4K 60Hz KVM (CV-801K) supports resolutions up to 3840 x 2160 @ 60Hz (16 : 9), while the CyberView 2K 60Hz KVM (CV-801D) supports resolutions up to 2560 x 1440 @ 60Hz (16 : 9).

Superior Video

HDMI, DisplayPort, & DVI Sources

Control & switch between up to eight HDMI, DisplayPort, & DVI-D sources. The Austin Hughes CyberView 4K 60Hz & 2K KVM Switches are perfect for any application with high resolution requirements, or for people who would like to future-proof their environment.

Austin Hughes CyberView 4K 60Hz KVM (CV-801K) supports a mix of servers with DisplayPort & HDMI video inputs, while the CyberView 2K 60Hz KVM (CV-801D) supports a mix of servers with DVI-D & HDMI video inputs.

CyberView 4K / 2K KVM Cables

Port Connection

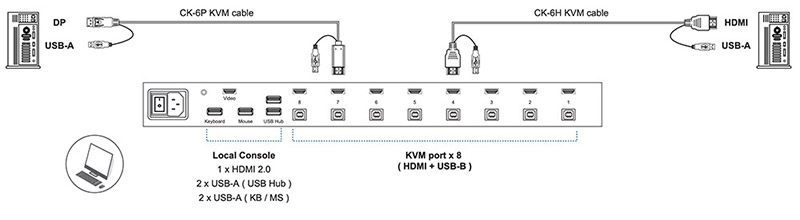

CyberView 4K 60hz KVM Port Connection Diagram

4K 60Hz KVM

Options & Accessories

KVM Cables

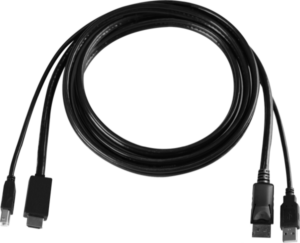

CyberView CH-6P 6ft 4K HDMI to DisplayPort + USB KVM Cable

4K 60Hz DisplayPort KVM Cable, 6 Ft
CK-6P

  • Resolutions up to 4K 60Hz
  • Server-end: DisplayPort + USB-A
  • KVM port: HDMI + USB-B
  • 6 feet
CyberView CK-6H 6ft 4K HDMI + USB KVM Cable

4K 60Hz HDMI KVM Cable, 6 Ft
CK-6H

  • Resolutions up to 4K 60Hz
  • Server-end: HDMI + USB-A
  • KVM port: HDMI + USB-B
  • 6 feet

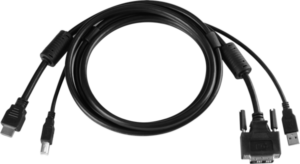

CyberView CH-6D 6ft 2K HDMI to DVI + USB KVM Cable

2K DVI-D KVM Cable, 6 Ft
CH-6D

  • Resolutions up to 2K 60Hz
  • Server-end: DVI-D + USB-A
  • KVM port: HDMI + USB-B
  • 6 feet

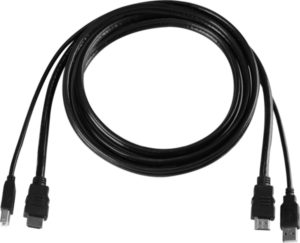

CyberView CH-6H 6ft 2K HDMI + USB KVM Cable

2K HDMI KVM Cable, 6 Ft
CH-6H

  • Resolutions up to 2K 60Hz
  • Server-end: HDMI + USB-A
  • KVM port: HDMI + USB-B
  • 6 feet

Power Input

AC Power

AC Power (Standard)

  • AC to DC Adapter with 6ft Power Cord
  • Auto-sensing 100 to 240VAC, 50 / 60Hz
  • Max. Power Consumption: 10 Watts
DC Power

DC Power

  • Optional 12V / 24V / 48V / 125V DC Power Input
  • Max. Power Consumption: 10 Watts

High-quality Build with Certifications for any application

Product Warranty

2 years standard warranty on all purchases. Expandable up to 5 years.

Certifications

CE, FCC, REACH, ROHS2 Certified, and TAA Compliant.

Built-to-last

High-quality build with many years of in-market testing.

Global Support

Extensive authorized distributions network around the globe.

Customer Commitment

Enhance customer competitiveness through our world class quality solutions and services.

Go Green Business

BSI ISO9001 / ISO14001 accredited ensuring maximum operating efficiency.
