Rack ATS

InfraPower

Most data centers provide power source redundancy in order to ensure critical devices have no power related downtime. Many rackmount IT devices, however, are not designed to take advantage of power redundancy.

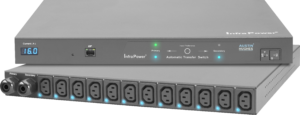

For single-corded IT rack-mount devices, InfraPower rackmount Automatic Transfer Switches (or ATS) with dual power inputs provide reliable and redundant power supply connection. A variety of InfraPower ATS models and features are available to meet different data center requirements.

ATS Selector

ATS Model Comparison W-series Intelligent ATS B-series Intelligent ATS Basic ATS
WSi WS W BSi BS B
2.0″ Color Touchscreen LCD Meter
3-digit RMS Current Meter
Input Source Switching Over IP
Input Source Switching Locally
Transfer Time 10ms 10ms 10ms 10ms 10ms 10ms 10 – 16ms
Outlet Switching Over IP
Outlet Power Monitoring Over IP
Circuit Power Monitoring Over IP
Billing Grade Meter Accuracy, ±0.5%
Accuracy ± ( 3% of the reading + 5 digits ) RMS
Embedded 100/1000 LAN IP
Input Source Transfer Time < 10 ms
Built-in Web Based Management GUI
DCIM support : SNMP V2 / V3
Free Management Software ( Max. 50 iATS )
Single Circuit & Dual Circuit Models
Operating Temperature -5 to 60°C
Hydraulic-magnetic Circuit Breaker (MCB) Bundled
Mounting Bracket with Cord Retention Tray Included
