InfraSolution S-800 Standalone Series
Rack level access security has become critically important for all data centers and server rooms. More and more IT managers have recognized this need and are upgrading their racks with smartcard access control. To meet the increasing needs, Austin Hughes offers the InfraSolution® S Standalone SmartCard Handle at affordable prices.

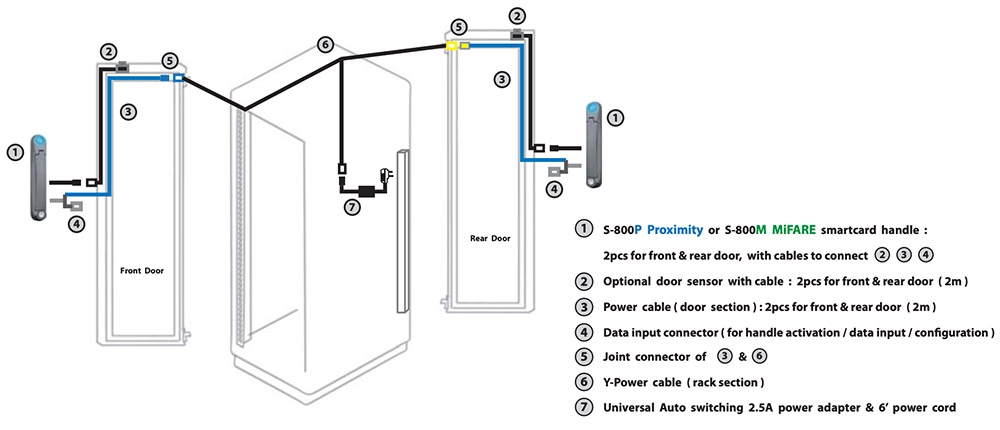

Overall Installation Diagram

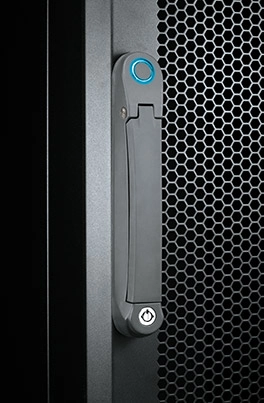

Smartcard Handle
The patented Smartcard handle is an intelligent design with universal mounting cut-out. Recently, most global branded racks have applied a standard handle cut out dimension on the door. To achieve the highest level of interoperability offered in the rack industry, the S-800 handle also applies the same mounting dimension. It avoids costly and complicated door customization for the Smartcard handle integration.
Handle Releasing
S-800 handle allows 2 lock releasing ways – by SmartCard or Mechanical key. In the event of failure in the smartcard or handle electronic board, the handle lock can still be released by mechanical key. Under normal operation handle release by mechanical key is not recommended.

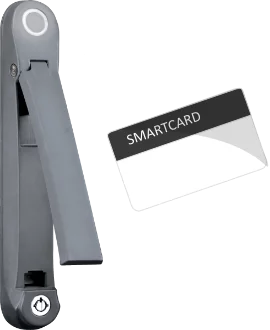

Smartcard

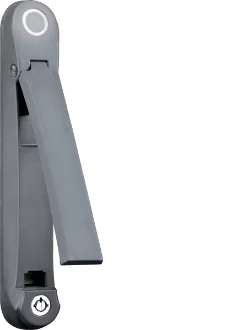

Mechanical Key
Operation

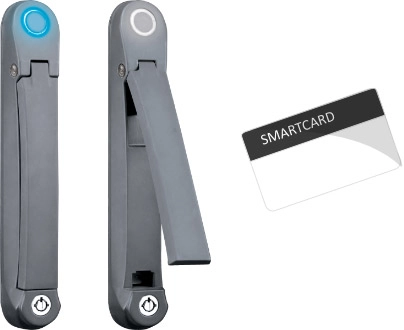

LED color modes on the smartcard handle indicate the lock status clearly.
Use MIFARE or Proximity cards for building access, cashless vending, pull printing? InfraSolution allows these existing smart cards to apply on the rack access system (once the access levels have been attributed by the administrator).
Door Close
Blue & green LED indicate the locked status of Proximity & MiFARE handle respectively

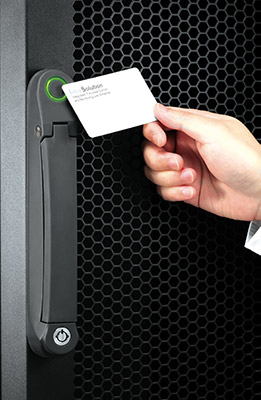

Door Open
An authorized unlock is signaled by a silver white flashing LED
Alarm for Unauthorized Open
Unauthorized rack access will result in a red flashing LED following with an audible alarm
Door Sensor
InfraSolution® provides high quality, durable and precise door sensors to ensure 100% right door detection.
Inductive Door Sensor, pair (S-DSI)
• Light weight / adhesive
• Easy setup for existing rack retrofit
• No custom cutting required on door
• Mounting bracket bundled
Mechanical Door Sensor, pair (S-DSW)
• Low cost / precise
• Cost efficient integration to new rack
• Custom hole cutting required on doors
Software

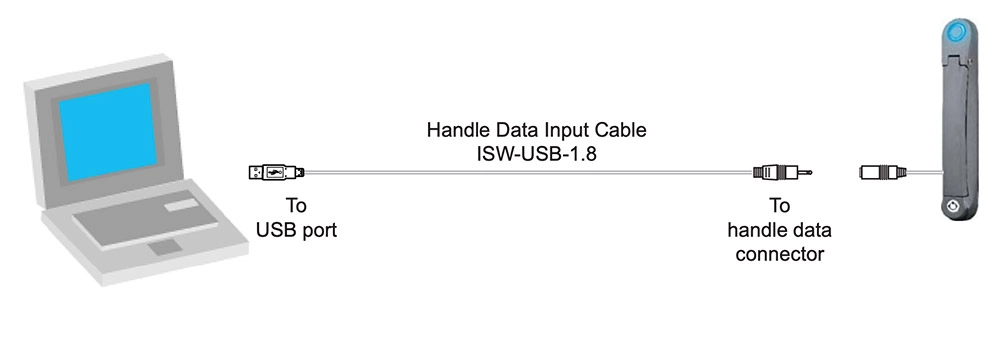

InfraSolution S provides two user-friendly software free. UTILITIES ISU-01 is ideal for the initial setup and simple operation. To look for relatively high requirements like the reporting feature and password security, MANAGER ISM-01 will be the one you should apply for.
Software Feature
Max. 50 user card authorization per handle
Max. 500 pairs of handle
Login Password
