F119 - 1U 19" 1080p LED-backlit LCD Console Drawer

F119, 1U 19″ 1080p LED-backlit LCD Console Drawer

The CyberView F119 rack console features a 19″ LED-backlit LCD capable of 1920 x 1080 video.

SKU: F119 Categories: , ,

Screen Size: 19 Inch
Compare

Benefits

  • 1U 19" FHD LED-backlit LCD console drawer
  • 1920 x 1080 native resolution / 16.7M colors
  • HDMI + VGA ( speakers excluded ) + USB K/B & MS
  • 104-key keyboard with either touchpad or trackball
  • Short depth design of 460mm
  • One Man installation design
  • Enhanced aesthetics with new molded front panel and 2-point lock
  • 2-year standard warranty ( upgradable up to 5 years )

Options

  • Dual stereo speakers for HDMI ( HS4.4 )
  • DP 1.0 + Speakers ( DP )
  • DVI-D + Audio + Speakers ( DV4.4 )
  • Composite + Audio IN + Speakers ( BNC )
  • 3G-SDI Broadcast-grade input + Speakers ( SDI )
  • Front USB hub port for device access ( USB )
  • DC power : 12V / 24V / 48V / 125V / 250V
  • Keyboard available in 9 languages
  • SUN Micro keyboard options available
  • Integrated KVM Switch options

Design

Featuring a 19? FHD LED-backlit LCD display and notepad keyboard with touchpad or trackball, the CyberView F119 is the leading Rack Console solution for data centers & other IT environments. Enhance your rack by integrating a monitor, keyboard, mouse, and KVM Switch with this state-of-the-art, modular rack console drawer.

Get Info

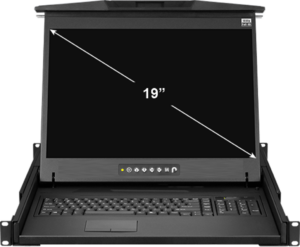

  • F119 - 19" Full HD 1080p Monitor

    19" Full HD 1080p Monitor

    The F119 features a high-quality 19" display that supports up to FHD 1080P resolution with 16.7M colors.
  • F119 - Short-Depth Design

    Short-Depth Design

    Our Short Depth design allows you to mount the console in only 460mm* of space.
  • F119 - 1U Rack Mount

    1U Rack Mount

    The F119 mounts into only 1U of standard 19" Rack Mount Space. Control your entire datacenter from only 1U.
  • F119 - Enhanced aesthetics with 2-point lock

    Enhanced aesthetics with 2-point lock

    1U slim design with molded front handle.
  • F119 - LED Touch OSD

    LED Touch OSD

    The LED touch On-Screen-Display provides a convenient way to control device settings & switch between sources.
  • F119 - HDMI + VGA & USB Standard Input

    HDMI + VGA & USB Standard Input

    Modular design supports a variety of integrated KVM options for your applications.

Integrated KVM Options

All-in-one Control Solutions

Austin Hughes offers a large variety of KVM switches designed to allow users to control & switch between all the computers in an environment from a single convenient 1U rack mount solution.

CyberView KVMs have been designed to be driver-free to work with all known software and computer platforms, and have been tested and approved with CE, UKCA, FCC, REACH, RoHS3, WEEE Certifications for IT, manufacturing, SOHO, commercial, military, government, and broadcast applications.

CyberView KVMs support high definition resolutions up to 1080p & 1920 x 1200 (via local, remote, and IP*).

Austin Hughes Cat6 KVM Switch with Local Rack Console, IP & Extended Users - Diagram
Austin Hughes CyberView Network IP Session
Network IP Users

Access all your servers remotely with high performance IP 1080p*

CyberView IP KVMs only require a web browser to connect to computer sources remotely from anywhere in the world. Our IP based method employs enterprise grade security using AES encryption. BIOS-level Access removes the need to ever be physically present with servers.

PDF1080p IP Brochure

Austin Hughes CyberView KVM Extender Receiver
Extended Users

Integrated KVM Extenders – Remote Access

CyberView KVMs can also be optionally controlled by users from up to 150m (500ft) away. Integrated CATx extenders allow you to easily connect the included remote user stations over single CATx cables.

KVM Series

Optimize your rack space by integrating a KVM Switch into your Console Drawer, providing easy installation & streamlined access to your servers in only 1U.

Compare

High-density Cat6 KVM

Matrix Multi-User Cat6 KVM
Local IP Remote 8-Port 16-Port 32-Port
1 1 1 - F119-MUIP1613 F119-MUIP3213
1 2 1 - F119-MUIP1624 F119-MUIP3224
1 0 1 - F119-MU1602 F119-MU3202
1 0 2 - F119-MU1603 F119-MU3203
1 0 3 - F119-MU1604 F119-MU3204
Manual
Combo Cat6 KVM
Local IP Remote 8-Port 16-Port 32-Port
1 1 0 F119-UIP802 F119-UIP1602 F119-UIP3202
1 0 1 F119-U802 F119-U1602 F119-U3202
1 0 0 F119-U801 F119-U1601 F119-U3201
Manual

2K KVM

2K KVM
Local IP Remote 8-Port
1 0 0 F119-801D
Manual

DVI-D KVM

DVI-D KVM
Local IP Remote 12-Port
1 0 0 F119-1201D
Manual

VGA KVM

Combo VGA DB-15 KVM
Local IP Remote 8-Port 16-Port
1 1 0 F119-IP802 F119-IP1602
1 0 1 F119-802 F119-1602
1 0 0 F119-801 F119-1601
Manual

VGA USB Hub KVM

USB Hub DB-15 KVM
Local IP Remote 8-Port
1 1 0 F119-IP802H
1 0 1 F119-802H
1 0 0 F119-801H
Manual

F119 Specifications

SKU F119
Brand

CyberView
Categories

, ,

Form Factor

1U Rack Mount
Screen Size

19 Inch
Display Resolution

1080p FHD (1920 x 1080)
Display Brightness

500 cd/m²
Mouse

Touchpad, Trackball
Features
Integrated KVM Switch Options,
Short Depth
MTBF

50,000 Hours
Compliance

CE, UKCA, FCC, REACH, RoHS3, WEEE

Support & Downloads

Technical Support

WE ARE HERE TO HELP! Please contact our experts for technical assistance.

Contact Us

Have Any Questions?

Please enable JavaScript in your browser to complete this form.

Ordering

Package Icon

Package Contents

  • (1) F119 Console Drawer
  • (1) CX-6B 6ft HDMI console cable or optional CB-6A 6ft VGA console cable
  • (1) Power cord
  • (8) M6 screw, cage nut & cup washer
  • (1) 2-Year standard warranty upgradable up to 5 years

2 Years Standard Warranty

on all purchases. Expandable up to 5 years.
