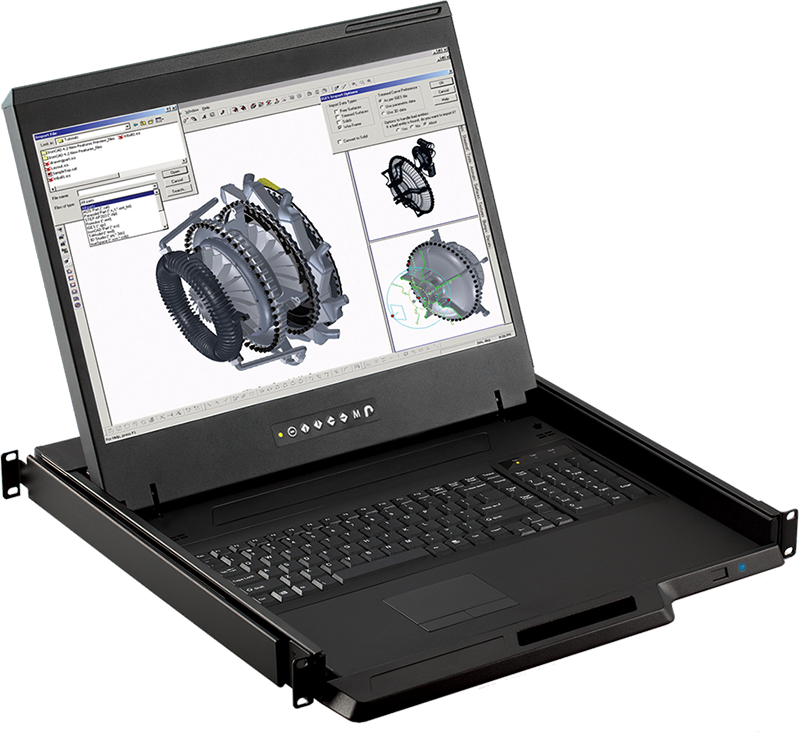

W119, 1U 19″ widescreen LED-backlit LCD Console Drawer

The CyberView W119 rack console features a 19″ Widescreen LED-backlit LCD capable of 1440 x 900 video.



  • 1U 19" Widescreen LED-backlit LCD console drawer
  • 1440 x 900 native resolution / 16.7M colors
  • HDMI + VGA ( speakers excluded ) + USB K/B & MS
  • 104-key keyboard with either touchpad or trackball
  • Short depth design of 460mm respectively
  • One Man installation design
  • Enhanced aesthetics with molded front handle
  • 2-year standard warranty ( upgradable up to 5 years )


  • Dual stereo speakers for HDMI ( HS4.4 )
  • DVI-D + Audio ( DV4.4 )
  • S-Video + Composite + Speakers ( BNC )
  • 3G-SDI Broadcast-grade input + Speakers ( SDI )
  • Front USB hub port for device access ( USB )
  • DC power : 12V / 24V / 48V / 125V / 250V
  • Keyboard available in 9 languages
  • SUN Micro keyboard options available
  • Integrated KVM Switch options


Featuring a 1440 x 900 19″ widescreen LED-backlit LCD display and notepad keyboard with touchpad or trackball, the CyberView W119 is the leading Rack Console solution for data centers & other IT environments. Enhance your rack by integrating a monitor, keyboard, mouse, and KVM Switch with this state-of-the-art, modular rack console drawer.

Get Info

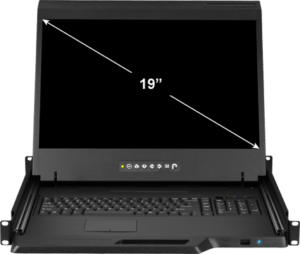

  • W119 - 19" Monitor

    19" Monitor

    The W119 feature a high-quality display that support up to 1440 x 900 with 16.7M colors.
  • W119 - Short-Depth Design

    Short-Depth Design

    Our Short Depth design allows you to mount the console in only 460mm* of space.
  • W119 - 1U Rack Mount

    1U Rack Mount

    The W119 mounts into only 1U of standard 19" Rack Mount Space. Control your entire datacenter from only 1U.
  • W119 - Enhanced Aesthetics with Molded Front Handle

    Enhanced Aesthetics with Molded Front Handle

    Our second generation design features a new 1U slim design with a molded front handle for easy access..

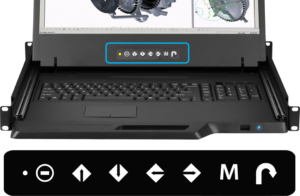

  • W119 - LED Touch OSD

    LED Touch OSD

    The LED touch On-Screen-Display provides a convenient way to control device settings & switch between sources.
  • W119 - HDMI + VGA & USB Standard Input

    HDMI + VGA & USB Standard Input

    Modular design supports a variety of integrated KVM options for your applications.

Integrated KVM Options

All-in-one Control Solutions

Austin Hughes offers a large variety of KVM switches designed to allow users to control & switch between all the computers in an environment from a single convenient 1U rack mount solution.

CyberView KVMs have been designed to be driver-free to work with all known software and computer platforms, and have been tested and approved with CE, UKCA, FCC, REACH, RoHS3, WEEE Certifications for IT, manufacturing, SOHO, commercial, military, government, and broadcast applications.

CyberView KVMs support high definition resolutions up to 1080p & 1920 x 1200 (via local, remote, and IP*).

Austin Hughes Cat6 KVM Switch with Local Rack Console, IP & Extended Users - Diagram
Austin Hughes CyberView Network IP Session
Network IP Users

Access all your servers remotely with high performance IP 1080p*

CyberView IP KVMs only require a web browser to connect to computer sources remotely from anywhere in the world. Our IP based method employs enterprise grade security using AES encryption. BIOS-level Access removes the need to ever be physically present with servers.

PDF1080p IP Brochure

Austin Hughes CyberView KVM Extender Receiver
Extended Users

Integrated KVM Extenders – Remote Access

CyberView KVMs can also be optionally controlled by users from up to 150m (500ft) away. Integrated CATx extenders allow you to easily connect the included remote user stations over single CATx cables.

KVM Series

Optimize your rack space by integrating a KVM Switch into your Console Drawer, providing easy installation & streamlined access to your servers in only 1U.


High-density Cat6 KVM

Matrix Multi-User Cat6 KVM
Local IP Remote 8-Port 16-Port 32-Port
1 1 1 - W119-MUIP1613 W119-MUIP3213
1 2 1 - W119-MUIP1624 W119-MUIP3224
1 0 1 - W119-MU1602 W119-MU3202
1 0 2 - W119-MU1603 W119-MU3203
1 0 3 - W119-MU1604 W119-MU3204
Combo Cat6 KVM
Local IP Remote 8-Port 16-Port 32-Port
1 1 0 W119-UIP802 W119-UIP1602 W119-UIP3202
1 0 1 W119-U802 W119-U1602 W119-U3202
1 0 0 W119-U801 W119-U1601 W119-U3201


Local IP Remote 8-Port
1 0 0 W119-801D


Local IP Remote 12-Port
1 0 0 W119-1201D


Combo VGA DB-15 KVM
Local IP Remote 8-Port 16-Port
1 1 0 W119-IP802 W119-IP1602
1 0 1 W119-802 W119-1602
1 0 0 W119-801 W119-1601


Local IP Remote 8-Port
1 1 0 W119-IP802H
1 0 1 W119-802H
1 0 0 W119-801H

W119 Specifications

SKU W119



, ,

Form Factor

1U Rack Mount

Screen Size

19 Inch

Display Resolution

1440 x 900

Display Brightness

250 cd/m²


Touchpad, Trackball

Integrated KVM Switch Options,
Short Depth

30,000 Hours



Support & Downloads

Technical Support

WE ARE HERE TO HELP! Please contact our experts for technical assistance.

Have Any Questions?

    Accept Cookies To Send This Form


    Package Icon

    Package Contents

    • (1) W119 Console Drawer
    • (1) CX-6B 6ft HDMI console cable or optional CB-6A 6ft VGA console cable
    • (1) Power cord
    • (8) M6 screw, cage nut & cup washer
    • (1) 2-Year standard warranty upgradable up to 5 years

    2 Years Standard Warranty

    on all purchases. Expandable up to 5 years.

    Austin Hughes Global Distribution Map

    Shipping & Ordering Information

    We support a worldwide customer base through global locations in the Americas, EMEA, APAC as well as ASEAN, and thorough our extensive authorized channel partner support network around the world.

    Shopping Cart Icon

    Where to buy

    Find a local partner that understands your unique business and industry needs. Austin Hughes supports a global network of authorized channel partners that can provide sales & solutions support anywhere in the world.

    Reseller Icon

    Become a Partner

    Are you interested in becoming an Austin Hughes distributor or value-added reseller? We offer extensive sales & technical support, global distribution, and branding. Please feel free to reach out to us for more.

    High-quality Build with Certifications for any application

    Product Warranty

    2 years standard warranty on all purchases. Expandable up to 5 years.


    CE, UKCA, FCC, REACH, RoHS3, WEEE Certified, and TAA Compliant.


    MTBF (Mean-Time-Between-Failure) of 30,000 Hours.

    Global Support

    Extensive authorized distributions network around the globe.

    Customer Commitment

    Enhance customer competitiveness through our world class quality solutions and services.

    Go Green Business

    BSI ISO9001 / ISO14001 accredited ensuring maximum operating efficiency.

    CE Certified
    UKCA Certified
    FCC Certified
    REACH Compliant
    RoHS3 Compliant
