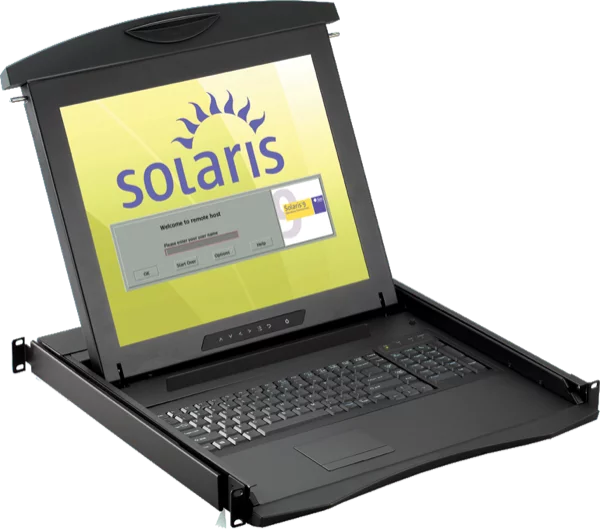

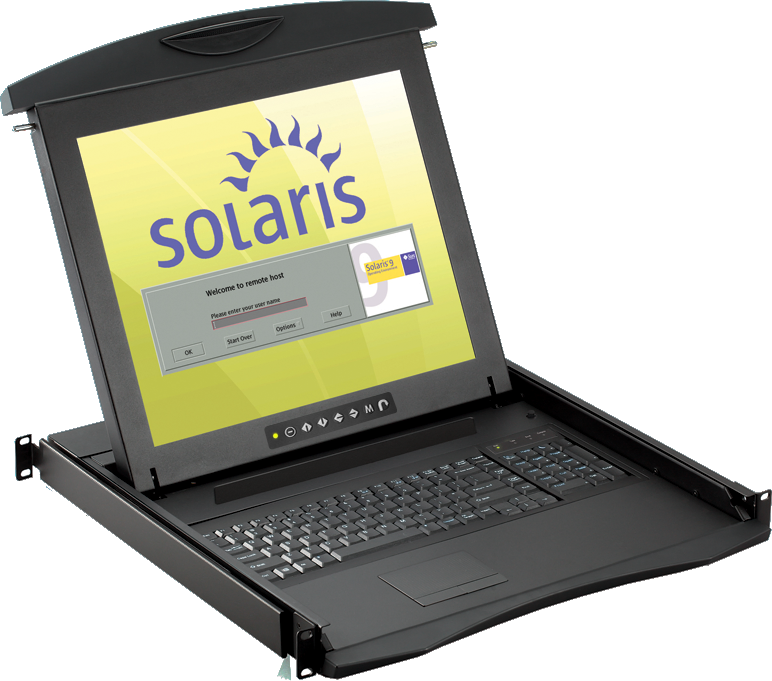

NS117 / 119, 1U LED-backlit LCD Console Drawer

The CyberView NS117 / NS119 Sun rack console features a 17″ / 19″ LED-backlit LCD capable of 1152 x 900 video.



  • 1U 17" / 19" LED-backlit LCD console drawer
  • 1152 x 900 SUN Micro resolution / 16.7M colors
  • DVI-D + VGA video input / USB KB / MS
  • 104-key keyboard with either touchpad or trackball
  • Short depth design of 500mm / 19.7"
  • One Man installation design
  • Enhanced aesthetics with 2-point lock
  • 2-year standard warranty ( upgradable up to 5 years )


  • DC power : 12V / 24V / 48V / 125V / 250V


Featuring a 1152 x 900 nature resolution LED-backlit LCD display and notepad keyboard with touchpad or trackball, the CyberView NS117 is the leading Rack Console solution for Sun-Micro application. Enhance your rack by integrating a monitor, keyboard, mouse, and KVM Switch with this state-of-the-art, modular rack console drawer.

Get Info

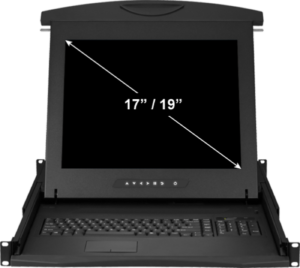

  • NS117 / 119 - 17" / 19" Monitor

    17" / 19" Monitor

    S117 / 119 feature a high-quality display that support nature 1152 x 900 SUN Micro resolution / 16.7M colors.

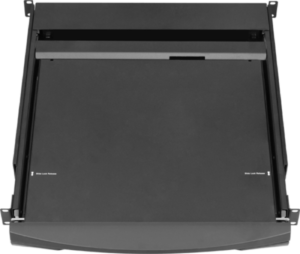

  • NS117 / 119 - Short-Depth Design

    Short-Depth Design

    Our Short Depth design allows you to mount the console in only 500mm* of space.
  • NS117 / 119 - 1U Rack Mount

    1U Rack Mount

    The NS117 or NS119 mounts into only 1U of standard 19" Rack Mount Space. Control your datacenter from only 1U.

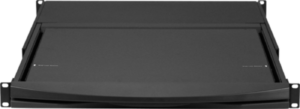

  • NS117 / 119 - Enhanced aesthetics with 2-point lock

    Enhanced aesthetics with 2-point lock

    Our second generation design features a new 1U slim design with a molded front handle for easy access.

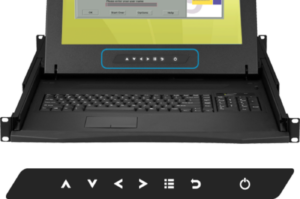

  • NS117 / 119 - LED Touch OSD

    LED Touch OSD

    The LED touch On-Screen-Display provides a convenient way to control device settings & switch between sources.

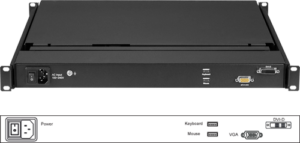

  • NS117 / 119 - DVI-D + VGA + USB Standard Input

    DVI-D + VGA + USB Standard Input

    Modular design supports a variety of integrated KVM options for your applications.

Integrated KVM Options

All-in-one Control Solutions

Austin Hughes offers a large variety of KVM switches designed to allow users to control & switch between all the computers in an environment from a single convenient 1U rack mount solution.

CyberView KVMs have been designed to be driver-free to work with all known software and computer platforms, and have been tested and approved with CE, UKCA, FCC, REACH, RoHS3, WEEE Certifications for IT, manufacturing, SOHO, commercial, military, government, and broadcast applications.

CyberView KVMs support high definition resolutions up to 1080p & 1920 x 1200 (via local, remote, and IP*).

Austin Hughes Cat6 KVM Switch with Local Rack Console, IP & Extended Users - Diagram
Austin Hughes CyberView Network IP Session
Network IP Users

Access all your servers remotely with high performance IP 1080p*

CyberView IP KVMs only require a web browser to connect to computer sources remotely from anywhere in the world. Our IP based method employs enterprise grade security using AES encryption. BIOS-level Access removes the need to ever be physically present with servers.

PDF1080p IP Brochure

Austin Hughes CyberView KVM Extender Receiver
Extended Users

Integrated KVM Extenders – Remote Access

CyberView KVMs can also be optionally controlled by users from up to 150m (500ft) away. Integrated CATx extenders allow you to easily connect the included remote user stations over single CATx cables.

KVM Series

Optimize your rack space by integrating a KVM Switch into your Console Drawer, providing easy installation & streamlined access to your servers in only 1U.


High-density Cat6 KVM

Matrix Multi-User Cat6 KVM
Local IP Remote 8-Port 16-Port 32-Port
1 1 1 - NS117 / 119-MUIP1613 NS117 / 119-MUIP3213
1 2 1 - NS117 / 119-MUIP1624 NS117 / 119-MUIP3224
1 0 1 - NS117 / 119-MU1602 NS117 / 119-MU3202
1 0 2 - NS117 / 119-MU1603 NS117 / 119-MU3203
1 0 3 - NS117 / 119-MU1604 NS117 / 119-MU3204
Combo Cat6 KVM
Local IP Remote 8-Port 16-Port 32-Port
1 1 0 NS117 / 119-UIP802 NS117 / 119-UIP1602 NS117 / 119-UIP3202
1 0 1 NS117 / 119-U802 NS117 / 119-U1602 NS117 / 119-U3202
1 0 0 NS117 / 119-U801 NS117 / 119-U1601 NS117 / 119-U3201


Local IP Remote 8-Port
1 0 0 NS117 / 119-801D


Local IP Remote 12-Port
1 0 0 NS117 / 119-1201D


Combo VGA DB-15 KVM
Local IP Remote 8-Port 16-Port
1 1 0 NS117 / 119-IP802 NS117 / 119-IP1602
1 0 1 NS117 / 119-802 NS117 / 119-1602
1 0 0 NS117 / 119-801 NS117 / 119-1601

NS117 / 119 Specifications

SKU NS117 / 119



, ,

Form Factor

1U Rack Mount

Screen Size

17 Inch / 19 Inch

Display Resolution

1152 x 900 SUN Micro

Display Brightness

250 cd/m²


Touchpad, Trackball

Integrated KVM Switch Options,
Short Depth,
SUN Micro resolution

30,000 Hours



Support & Downloads

Technical Support

WE ARE HERE TO HELP! Please contact our experts for technical assistance.

Have Any Questions?

    Accept Cookies To Send This Form


    Package Icon

    Package Contents

    • (1) NS117 / 119 Console Drawer
    • (1) CX-6A 6ft DVI-D console cable or optional CB-6A 6ft VGA console cable
    • (1) Power cord
    • (8) M6 screw, cage nut & cup washer
    • (1) 2-Year standard warranty upgradable up to 5 years
