InfraSolution® X 800 series provides data center managers a complete networked solution with monitoring, control, alarm & reporting. It allows rack access remote management – saving traveling time / costs and hence increases the data center operation efficiency. X-ISM rack management software allows you to monitor up to 3,000 control boxes remotely.

BrochureManual

InfraSolution X-800 Networked Series

InfraSolution® X 800 series provides data center managers a complete networked solution with monitoring, control, alarm & reporting. It allows rack access remote management – saving traveling time / costs and hence increases the data center operation efficiency. X-ISM rack management software allows you to monitor up to 3,000 control boxes remotely.

BrochureManual

Overall Installation Diagram

Overall Installation Diagram - InfraSolution X-800 Networked Rack Access Solution
InfraSolution 800 Series Rack Access Solution

Smartcard Handle

The patented X-800 smartcard handle is an intelligent design with universal mounting cut out. Most global branded racks have applied a standard handle cut out dimension on the door. To achieve the highest level of interoperability offered in the rack industry, the X-800 handle applies the same mounting dimension. It avoids costly and complicated door customization for the smartcard handle integration.

Learn More
InfraSolution 800 Smartcard Handle

Door Sensor

InfraSolution® provides high quality, durable and precise door sensors to ensure 100% right door detection.

InfraSolution Inductive Door Sensor

Inductive Door Sensor, pair (S-DSI)

• Light weight / adhesive
• Easy setup for existing rack retrofit
• No custom cutting required on door
• Mounting bracket bundled

S-DSW - Mechanical Door Sensor with 2M cord, pair

Mechanical Door Sensor, pair (S-DSW)

• Low cost / precise
• Cost efficient integration to new rack
• Custom hole cutting required on doors

Control Box

Control Box consolidates the smartcard access components and integrated devices such as integrated PDU, cooling fan and environmental sensors in a single rack. For a centralized management, all control boxes can be connected under wired networks.

X-1000

Rack access control

X-1000 - Control Box for Rack Smartcard Access Control

X-2000

Rack access control + Integrated devices

X-2000 - Control Box for Rack Smartcard Access Control + Environmental Management + Integrated Device
Learn More

Integrated Devices

Integrated PDU

PDU

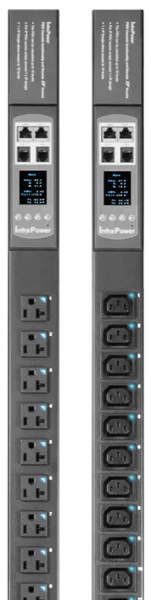

With today’s increasing demand for high technology power management, InfraSolution® X is capable of integrating with 3-Phase / 1-Phase intelligent PDU. Power measurement available from PDU Circuit Level to Outlet Level kWh monitoring. Switched models are also available for remote outlet switching on / off. Our PDUs are also offered in many sizes and configurations depending on voltage, current, outlet number and type of connections.

Learn More
Integrated Fan Unit

Fan Unit

One of the biggest challenges in today’s data center is thermal management. Cooling has always been important. Intelligent fan units are designed to have both local & remote management capabilities. Front panel LED and buttons allow the local monitoring and individual fan kit switch on / off. Moreover, fan speed can be adjusted automatically according to the temperature detected by the sensor. It minimizes the operation cost but provides adequate airflow.

Learn More
Integrated Sensors

Sensor

For mission critical data centers, the ability to remotely manage the IT rack environment is of vital importance. InfraSolution® X supports the integration with a wide range of sensors for a complete environmental monitoring, including temperature, humidity, smoke, shock and water leakage. Peripherals such as LED light bar and flashing LED beacon, are designed for use with the sensors in order to allow a local environmental monitoring.

Learn More

Network Setup

InfraSolution X provides 3 connection ways – Daisy Chain, Star, Mixed. Which connection users apply is related to the site scale, environment and users’ requirements.

Connect all InfraBoxes by Cat5/6 cable, and no any network switch required.

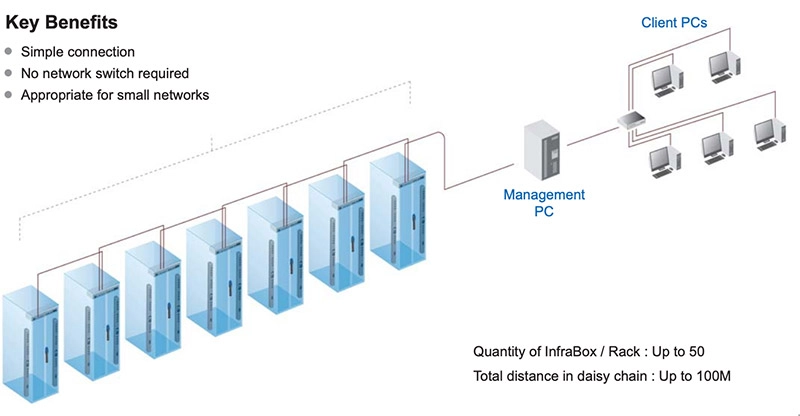

Daisy Chain - InfraSolution Network Setup

Connect to network switch by a point-to-point connection.

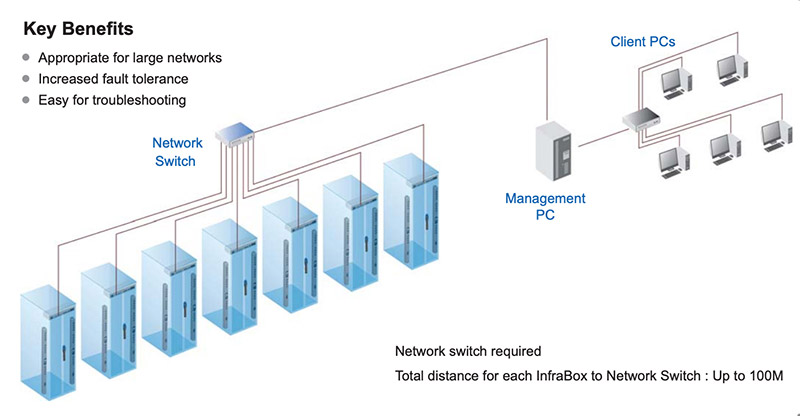

Star - InfraSolution Network Setup

Combining daisy chain with star connection.

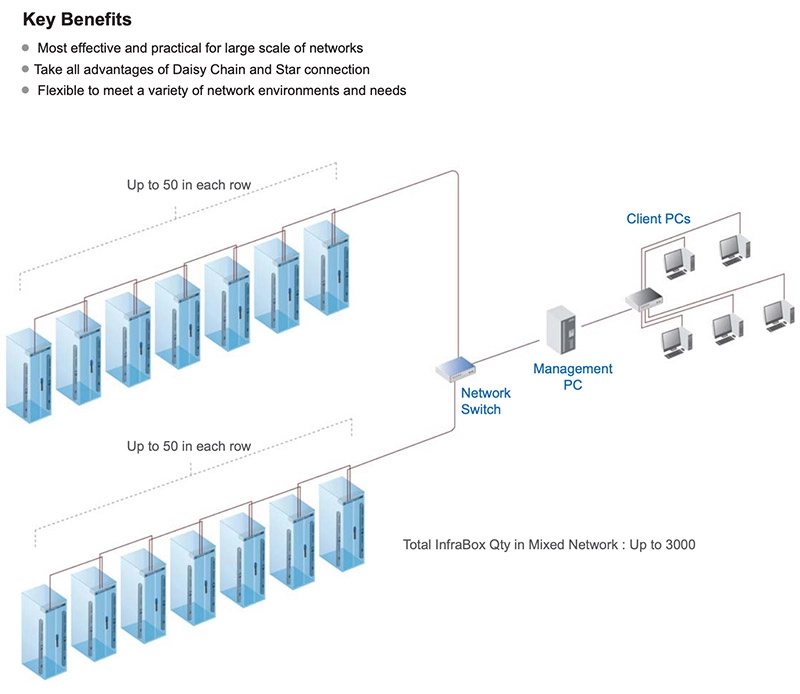

Mixed (Star & Daisy Chain) - InfraSolution Network Setup

Applications

Data Center

By mixed connection, InfraSolution® X can be scalable up to 3,000 racks. X-2000 and X-1000 InfraBoxes can be coexisted in the same network. Users are enabled to manage and remotely access all racks under a centralized and user friendly GUI.

InfraSolution X Application Data Center

Intelligent Building

It is essential for a Multi-Story Intelligent Building to be applied with a centralized management system for the building’s mechanical and electrical equipment such as security, power, ventilation and lighting systems etc. InfraSolution® X system allows equipment to be distributed throughout a building simply by deploying an Ethernet network. To keep capital costs down, InfraSolution® X can also be cascaded between boxes up to 100m over a Cat5/6 cable. Signal weakness problem for long distance between InfraBoxes can be solved by applying network hubs with repeater function.

InfraSolution X Application Intelligent Building

Remote Site

InfraSolution® X can be also applied to the remote site for access and monitoring over IP anytime and anywhere.

InfraSolution X Application Remote Site

Branches

For a global or scalable company, it is vital to remote access and monitor the network of their nationwide and worldwide branches. InfraSolution® X provides an ideal solution to keep an eye on rack access security and environmental condition.

InfraSolution X Application Branches

Management Software

InfraSolution® X Manager X-ISM is a LICENSED rack management software to monitor up to 3,000 racks remotely.

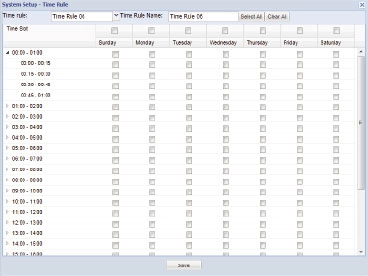

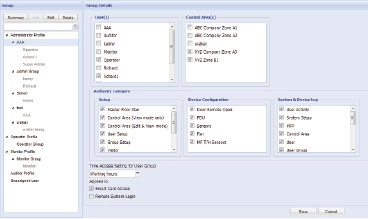

  • Setup and Control

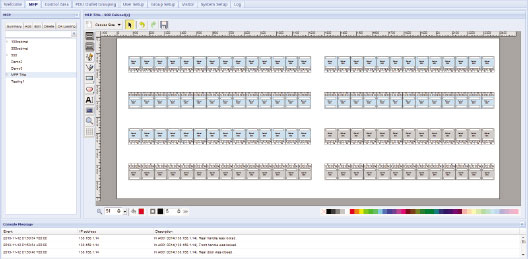

  • Cabinet Icon
    Cabinet Icon
  • Functions

Each InfraBox connects a pair of smartcard handles to secure the rack access control and connect a variety of sensors to provide an environmental monitoring solution.

To enhance the functionality, up to 1,920 x kWh PDU / 960 x Fan Unit can be monitored through Manager X-ISM as well. Up to 100 concurrent users can access the management software remotely to achieve the demand of multi-user / multi-tasking in nowadays’ time sharing data center operation.

X-ISM Features

Connected Devices

InfraPower® Intelligent PDU

PDU
InfraPower® Intelligent PDU

  • W : Circuit Monitoring
  • Wi : Circuit & Outlet Monitoring
  • WS : Circuit Monitoring & Outlet Switching
  • WSi : Circuit Monitoring, Outlet Monitoring, & Outlet Switching
  • * All iPDUs come with 2 x Sensor ports
InfraCool® Remote Fan Unit

Fan Unit
InfraCool® Remote Fan Unit

  • RF-33.9 : 33U remote door mount fan panel w/ 9 fans
  • RF-1.6 : 1U rackmount remote fan tray w/ 6 fans
  • RF-1.9 : 1U rackmount remote fan tray w/ 9 fans
