HF117 - 1U 17" FHD Sunlight Readable LCD Console Drawer

HF117, 1U 17″ FHD Sunlight Readable LCD Console Drawer

The CyberView HF117 rack console drawer features a 17″ FHD Sunlight Readable LCD capable of 1920 x 1080 video.

SKU: HF117 Categories: , ,

Screen Size: 17 Inch
Compare

Benefits

  • 1U 17" FHD LCD console drawer
  • 1920 x 1080 native resolution / 16.7M colors ( 8-bit )
  • 1000 cd/m2 brightness
  • DVI-D + VGA video input / USB KB / MS
  • 104-key keyboard with either touchpad or trackball
  • Short depth design of 480mm / 18.9"
  • One Man installation design
  • Enhanced aesthetics with molded front handle
  • 2-year standard warranty ( upgradable up to 5 years )

Options

  • Front USB hub port for device access
  • HDMI 1.4 video input ( HDMI )
  • 3G / HD / SD-SDI Broadcast-grade input ( SDI )
  • Composite ( BNC )
  • DC power : 12V / 24V / 48V / 125V / 250V
  • Keyboard available in 9 languages
  • SUN Micro keyboard options available
  • Projected Capacitive 10-pt Touch Screen
  • Resistive 1-pt Touch Screen
  • Integrated KVM Switch options

Design

Featuring a 1000 cd/m2 FHD LCD display and notepad keyboard with touchpad or trackball, the CyberView HF117 is the leading High Brightness Rack Console solution. Enhance your rack by integrating a monitor, keyboard, mouse, and KVM Switch with this state-of-the-art, modular rack console drawer.

Get Info
  • HF117 - 17.3" Monitor

    17.3" Monitor

    The HF117 feature a high-quality display that support up to 1920 x 1080 native resolution.
  • HF117 - Short-Depth Design

    Short-Depth Design

    Our Short Depth design allows you to mount the console in only 480mm* of space.
  • HF117 - 1U Rack Mount

    1U Rack Mount

    The HF117 mounts into only 1U of standard 19" Rack Mount Space. Control your datacenter from only 1U.

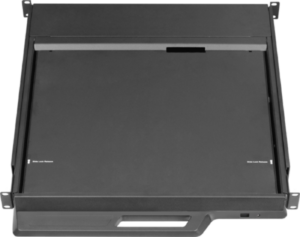

  • HF117 - Enhanced aesthetics with molded front handle

    Enhanced aesthetics with molded front handle

    Our second generation design features a new 1U slim design with a molded front handle for easy access.

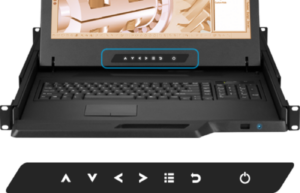

  • HF117 - LED Touch OSD

    LED Touch OSD

    The LED touch On-Screen-Display provides a convenient way to control device settings & switch between sources.
  • HF117 - DVI-D + VGA + USB Standard Input

    DVI-D + VGA + USB Standard Input

    Modular design supports a variety of integrated KVM options for your applications.

Integrated KVM Options

All-in-one Control Solutions

Austin Hughes offers a large variety of KVM switches designed to allow users to control & switch between all the computers in an environment from a single convenient 1U rack mount solution.

CyberView KVMs have been designed to be driver-free to work with all known software and computer platforms, and have been tested and approved with CE, UKCA, FCC, REACH, RoHS3, WEEE Certifications for IT, manufacturing, SOHO, commercial, military, government, and broadcast applications.

CyberView KVMs support high definition resolutions up to 1080p & 1920 x 1200 (via local, remote, and IP*).

Austin Hughes Cat6 KVM Switch with Local Rack Console, IP & Extended Users - Diagram
Austin Hughes CyberView Network IP Session
Network IP Users

Access all your servers remotely with high performance IP 1080p*

CyberView IP KVMs only require a web browser to connect to computer sources remotely from anywhere in the world. Our IP based method employs enterprise grade security using AES encryption. BIOS-level Access removes the need to ever be physically present with servers.

PDF1080p IP Brochure

Austin Hughes CyberView KVM Extender Receiver
Extended Users

Integrated KVM Extenders – Remote Access

CyberView KVMs can also be optionally controlled by users from up to 150m (500ft) away. Integrated CATx extenders allow you to easily connect the included remote user stations over single CATx cables.

KVM Series

Optimize your rack space by integrating a KVM Switch into your Console Drawer, providing easy installation & streamlined access to your servers in only 1U.

Compare

High-density Cat6 KVM

Matrix Multi-User Cat6 KVM
Local IP Remote 8-Port 16-Port 32-Port
1 1 1 - HF117-MUIP1613 HF117-MUIP3213
1 2 1 - HF117-MUIP1624 HF117-MUIP3224
1 0 1 - HF117-MU1602 HF117-MU3202
1 0 2 - HF117-MU1603 HF117-MU3203
1 0 3 - HF117-MU1604 HF117-MU3204
Manual
Combo Cat6 KVM
Local IP Remote 8-Port 16-Port 32-Port
1 1 0 HF117-UIP802 HF117-UIP1602 HF117-UIP3202
1 0 1 HF117-U802 HF117-U1602 HF117-U3202
1 0 0 HF117-U801 HF117-U1601 HF117-U3201
Manual

2K KVM

2K KVM
Local IP Remote 8-Port
1 0 0 HF117-801D
Manual

DVI-D KVM

DVI-D KVM
Local IP Remote 12-Port
1 0 0 HF117-1201D
Manual

VGA KVM

Combo VGA DB-15 KVM
Local IP Remote 8-Port 16-Port
1 1 0 HF117-IP802 HF117-IP1602
1 0 1 HF117-802 HF117-1602
1 0 0 HF117-801 HF117-1601
Manual

VGA USB Hub KVM

USB Hub DB-15 KVM
Local IP Remote 8-Port
1 1 0 HF117-IP802H
1 0 1 HF117-802H
1 0 0 HF117-801H
Manual

HF117 Specifications

SKU HF117
Brand

CyberView
Categories

, ,

Form Factor

1U Rack Mount
Screen Size

17 Inch
Display Resolution

1080p FHD (1920 x 1080)
Display Brightness

1,000 cd/m²
Mouse

Touchpad, Trackball
Features
Integrated KVM Switch Options,
Short Depth,
High Brightness
MTBF

50,000 Hours
Compliance

CE, UKCA, FCC, REACH, RoHS3, WEEE

Support & Downloads

Technical Support

WE ARE HERE TO HELP! Please contact our experts for technical assistance.

Contact Us

Have Any Questions?

    Accept Cookies To Send This Form

    Ordering

    Package Icon

    Package Contents

    • (1) HF117 Console Drawer
    • (1) CX-6A 6ft DVI-D console cable or optional CB-6A 6ft VGA console cable
    • (1) Power cord
    • (8) M6 screw, cage nut & cup washer
    • (1) 2-Year standard warranty upgradable up to 5 years

    2 Years Standard Warranty

    on all purchases. Expandable up to 5 years.

    Austin Hughes Global Distribution Map

    Shipping & Ordering Information

    We support a worldwide customer base through global locations in the Americas, EMEA, APAC as well as ASEAN, and thorough our extensive authorized channel partner support network around the world.

    About Us
    Shopping Cart Icon

    Where to buy

    Find a local partner that understands your unique business and industry needs. Austin Hughes supports a global network of authorized channel partners that can provide sales & solutions support anywhere in the world.

    Find Reseller
    Reseller Icon

    Become a Partner

    Are you interested in becoming an Austin Hughes distributor or value-added reseller? We offer extensive sales & technical support, global distribution, and branding. Please feel free to reach out to us for more.

    Contact Us

    High-quality Build with Certifications for any application

    Product Warranty

    2 years standard warranty on all purchases. Expandable up to 5 years.

    Certifications

    CE, UKCA, FCC, REACH, RoHS3, WEEE Certified, and TAA Compliant.

    Built-to-last

    MTBF (Mean-Time-Between-Failure) of 50,000 Hours.

    Global Support

    Extensive authorized distributions network around the globe.

    Customer Commitment

    Enhance customer competitiveness through our world class quality solutions and services.

    Go Green Business

    BSI ISO9001 / ISO14001 accredited ensuring maximum operating efficiency.

    CE Certified
    UKCA Certified
    FCC Certified
    REACH Compliant
    RoHS3 Compliant
