N117 / N119 - 1U LED-backlit LCD Console Drawer

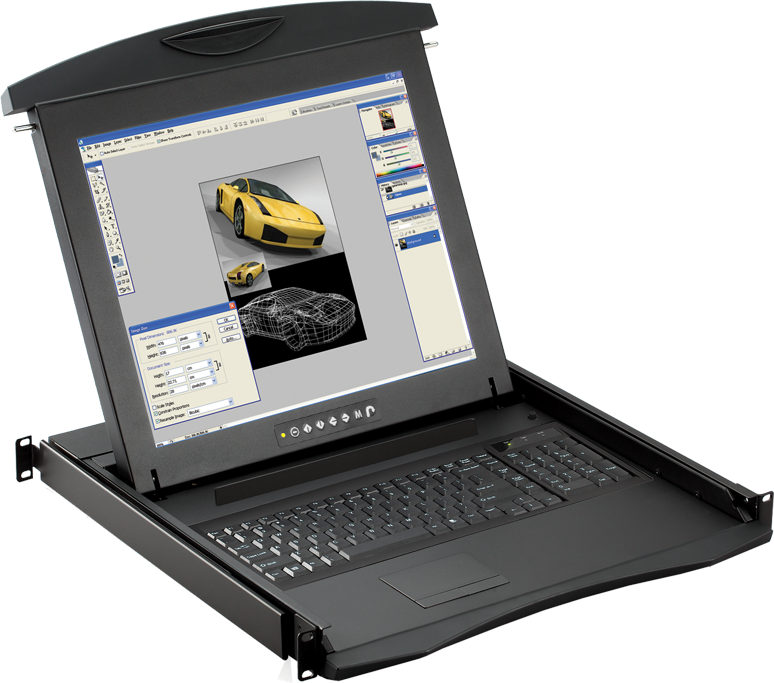

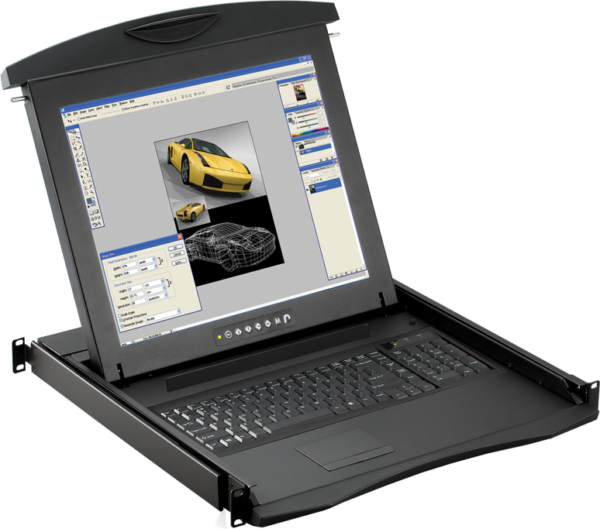

N117 / N119, 1U LED-backlit LCD Console Drawer

The CyberView N117 / N119 rack console features a 17″ / 19″ LED-backlit LCD capable of 1280 x 1024 video.

SKU: N117 / N119 Categories: , ,

Compare

Benefits

  • 1U 17" / 19" LED-backlit LCD console drawer
  • 1280 x 1024 native resolution / 16.7M colors
  • 104-key USB keyboard with either touchpad or trackball
  • Short depth design of 500mm
  • One Man installation design
  • Enhanced aesthetics with 2-point lock
  • 2-year standard warranty ( upgradable up to 5 years )

Options

Design

Featuring a 1280 x 1024 LED-backlit LCD display and notepad keyboard with touchpad or trackball, the CyberView N117/ N119 is the leading Rack Console solution for data centers & other IT environments. Enhance your rack by integrating a monitor, keyboard, mouse, and KVM Switch with this state-of-the-art, modular rack console drawer.

Get Info
  • N117 / N119 - 17" / 19" Monitor

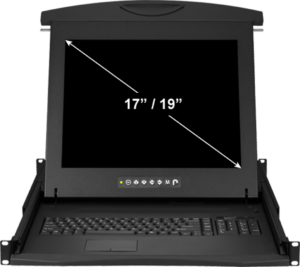

    17" / 19" Monitor

    The N117 or N119 feature a high-quality display that support up to 1280 x 1024 with 16.7M colors.
  • N117 / N119 - Short-Depth Design

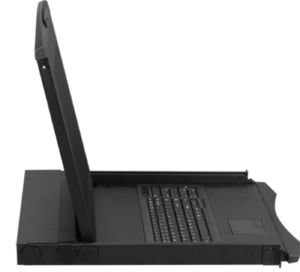

    Short-Depth Design

    Our Short Depth design allows you to mount the console in only 500mm* of space.
  • N117 / N119 - 1U Rack Mount

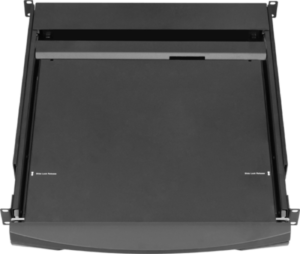

    1U Rack Mount

    The N117 or N119 mounts into only 1U of standard 19" Rack Mount Space. Control your datacenter from only 1U.
  • N117 / N119 - Enhanced Aesthetics with 2-point lock

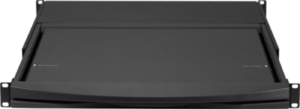

    Enhanced Aesthetics with 2-point lock

    Second generation design features a new 1U design with a molded front handle & 2-point lock for easy access.
  • N117 / N119 - LED Touch OSD

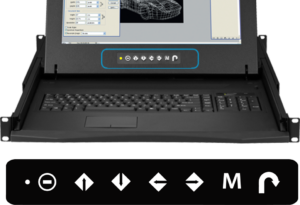

    LED Touch OSD

    The LED touch On-Screen-Display provides a convenient way to control device settings & switch between sources.
  • N117 / N119 - VGA + USB Standard Input

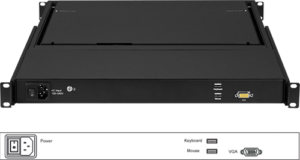

    VGA + USB Standard Input

    Modular design supports a variety of integrated KVM options for your applications.

Integrated KVM Options

All-in-one Control Solutions

Austin Hughes offers a large variety of KVM switches designed to allow users to control & switch between all the computers in an environment from a single convenient 1U rack mount solution.

CyberView KVMs have been designed to be driver-free to work with all known software and computer platforms, and have been tested and approved with CE, UKCA, FCC, REACH, RoHS3, WEEE Certifications for IT, manufacturing, SOHO, commercial, military, government, and broadcast applications.

CyberView KVMs support high definition resolutions up to 1080p & 1920 x 1200 (via local, remote, and IP*).

Austin Hughes Cat6 KVM Switch with Local Rack Console, IP & Extended Users - Diagram
Austin Hughes CyberView Network IP Session
Network IP Users

Access all your servers remotely with high performance IP 1080p*

CyberView IP KVMs only require a web browser to connect to computer sources remotely from anywhere in the world. Our IP based method employs enterprise grade security using AES encryption. BIOS-level Access removes the need to ever be physically present with servers.

PDF1080p IP Brochure

Austin Hughes CyberView KVM Extender Receiver
Extended Users

Integrated KVM Extenders – Remote Access

CyberView KVMs can also be optionally controlled by users from up to 150m (500ft) away. Integrated CATx extenders allow you to easily connect the included remote user stations over single CATx cables.

KVM Series

Optimize your rack space by integrating a KVM Switch into your Console Drawer, providing easy installation & streamlined access to your servers in only 1U.

Compare

High-density Cat6 KVM

Matrix Multi-User Cat6 KVM
Local IP Remote 8-Port 16-Port 32-Port
1 1 1 - N117 / N119-MUIP1613 N117 / N119-MUIP3213
1 2 1 - N117 / N119-MUIP1624 N117 / N119-MUIP3224
1 0 1 - N117 / N119-MU1602 N117 / N119-MU3202
1 0 2 - N117 / N119-MU1603 N117 / N119-MU3203
1 0 3 - N117 / N119-MU1604 N117 / N119-MU3204
Manual
Combo Cat6 KVM
Local IP Remote 8-Port 16-Port 32-Port
1 1 0 N117 / N119-UIP802 N117 / N119-UIP1602 N117 / N119-UIP3202
1 0 1 N117 / N119-U802 N117 / N119-U1602 N117 / N119-U3202
1 0 0 N117 / N119-U801 N117 / N119-U1601 N117 / N119-U3201
Manual

2K KVM

2K KVM
Local IP Remote 8-Port
1 0 0 N117 / N119-801D
Manual

DVI-D KVM

DVI-D KVM
Local IP Remote 12-Port
1 0 0 N117 / N119-1201D
Manual

VGA KVM

Combo VGA DB-15 KVM
Local IP Remote 8-Port 16-Port
1 1 0 N117 / N119-IP802 N117 / N119-IP1602
1 0 1 N117 / N119-802 N117 / N119-1602
1 0 0 N117 / N119-801 N117 / N119-1601
Manual

N117 / N119 Specifications

SKU N117 / N119
Brand

CyberView
Categories

, ,

Form Factor

1U Rack Mount
Screen Size

17 Inch / 19 Inch
Display Resolution

1280 x 1024
Display Brightness

250 cd/m²
Mouse

Touchpad, Trackball
Features
Integrated KVM Switch Options,
Short Depth
MTBF

30,000 Hours
Compliance

CE, UKCA, FCC, REACH, RoHS3, WEEE

Support & Downloads

Technical Support

WE ARE HERE TO HELP! Please contact our experts for technical assistance.

Contact Us

Have Any Questions?

Please enable JavaScript in your browser to complete this form.

Ordering

Package Icon

Package Contents

  • (1) N117 / N119 Console Drawer
  • (1) CB-6A 6ft VGA console cable
  • (1) Power cord
  • (8) M6 screw, cage nut & cup washer
  • (1) 2-Year standard warranty upgradable up to 5 years

2 Years Standard Warranty

on all purchases. Expandable up to 5 years.
